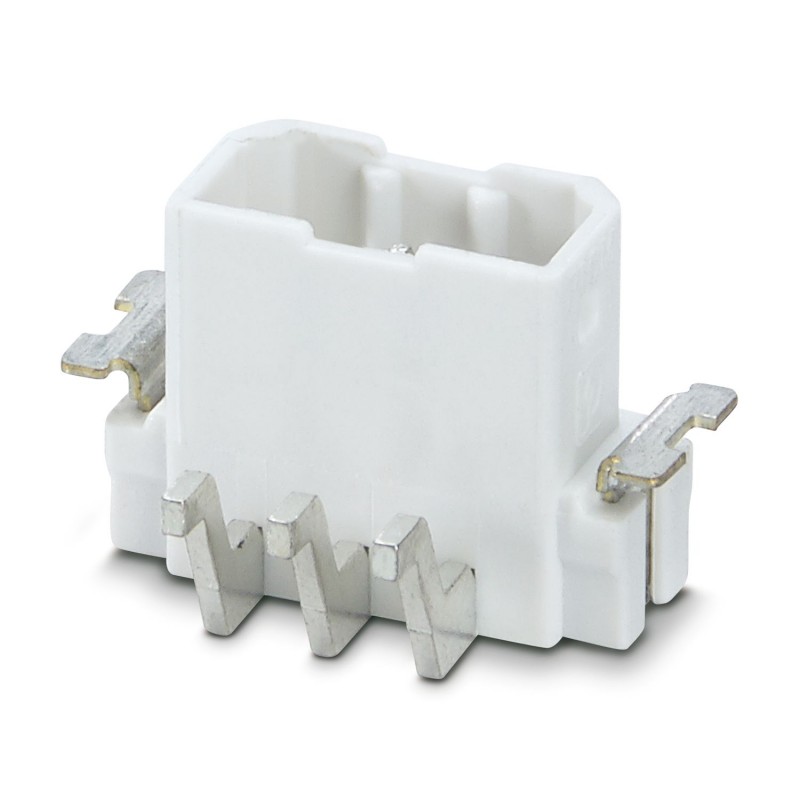

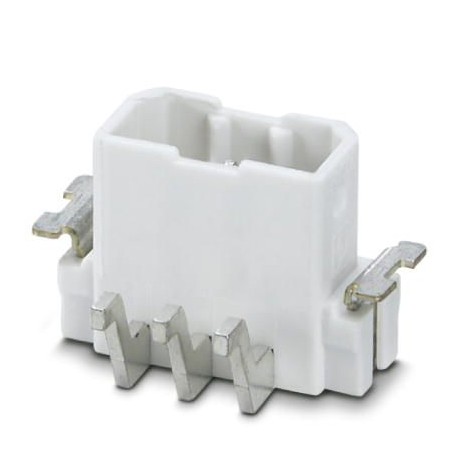

SAMPLE PTSM 0,5/ 4-HTB...SMDWH 1847151 PHOENIX CONTACT Sample set
SAMPLE PTSM 0,5/ 4-HTB...SMDWH
1847151
PHOENIX_CONTACT
5
Sample set
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1847151 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626003122 |
| Weight per Piece (excluding packing) | 1.680 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 9.5 mm |
|---|---|
| Width | 14.7 mm |
| Pitch | 2.5 mm |
| Dimension a | 7.5 mm |
| Width [ w ] | 14.7 mm |
| Height [ h ] | 8.2 mm |
| Height | 8.2 mm |
| Length | 9.5 mm |
General
| Range of articles | PTSM 0,5/..-HTB-SMD WH |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 125 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 250 V |
| Nominal current IN | 6 A |
| Maximum load current | 6 A |
| Insulating material | HT PA |
| Flammability rating according to UL 94 | V0 |
| Color | white |
| Number of positions | 4 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
