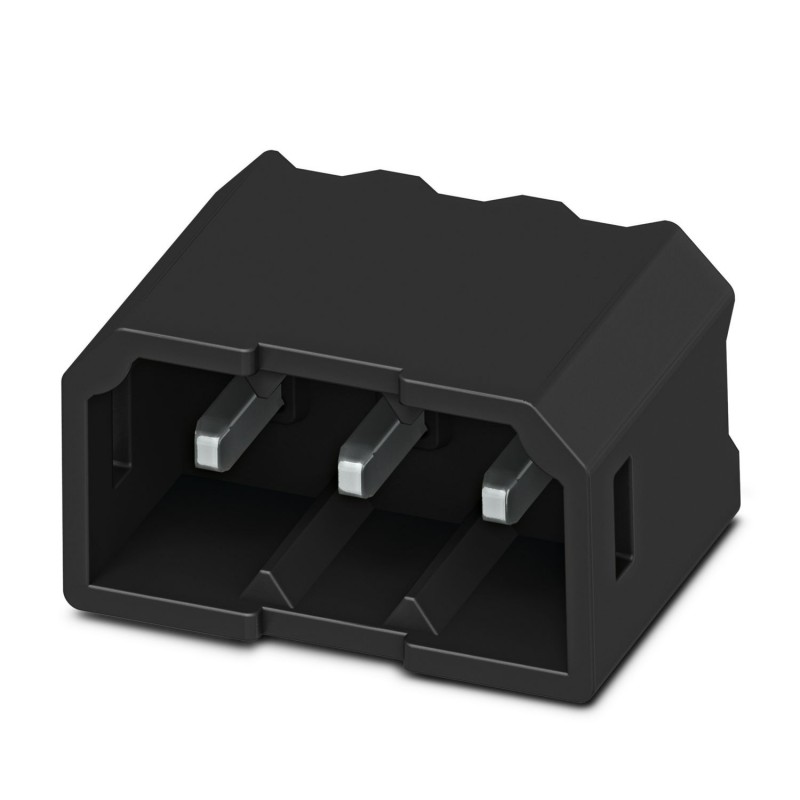

SAMPLE PTSM 0,5/ 2-HH-2,5-THR 1785977 PHOENIX CONTACT Sample set View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SAMPLE PTSM 0,5/ 2-HH-2,5-THR 1785977 PHOENIX CONTACT Sample set

SAMPLE PTSM 0,5/ 2-HH-2,5-THR

1785977

PHOENIX_CONTACT

5

Available Ship on today

New orders for this item will be processed from April 13

Sample set

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 1785977
Packing unit 5 pc
Minimum order quantity5 pc
GTIN4046356572101
Weight per Piece (excluding packing)0.860 g
Custom tariff number85366930
Country of originIN (India)

Dimensions

Length [ l ]7.5 mm
Width6.7 mm
Pitch2.5 mm
Dimension a2.5 mm
Width [ w ]6.7 mm
Height [ h ]7.1 mm
Height5 mm
Length of the solder pin2.1 mm
Pin dimensions0.6 x 0.6 mm
Pin spacing2.50 mm
Length7.5 mm

General

Range of articlesPTSM 0,5/..-HH-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)50 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Maximum load current6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions2

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
