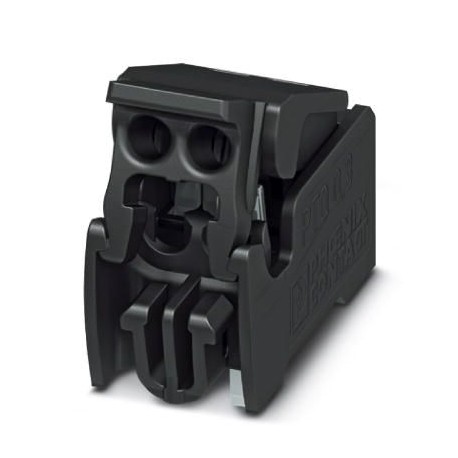

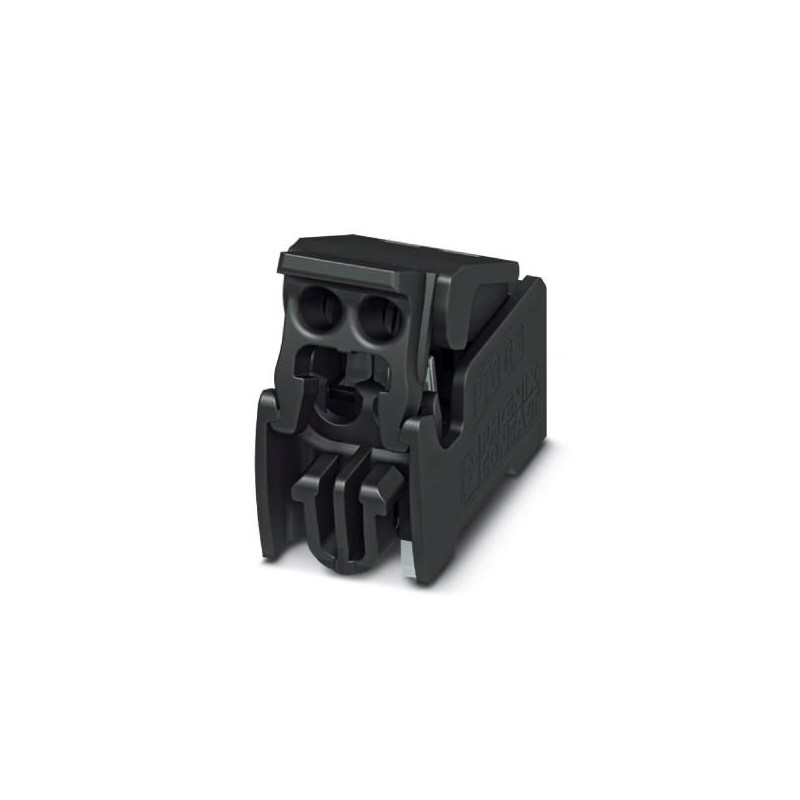

SAMPLE PTQ 0,3/ 2-2,5 THR R32 1799099 PHOENIX CONTACT Sample set
SAMPLE PTQ 0,3/ 2-2,5 THR R32
1799099
PHOENIX_CONTACT
5
Sample set
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1799099 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| GTIN | 4046356655828 |
| Weight per Piece (excluding packing) | 1.620 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Range of articles | PTQ 0,3/..-THR |
|---|---|
| Rated voltage (III/3) | 160 V |
| Nominal current IN | 4 A |
| Nominal cross section | 0.34 mm² |
| Maximum load current | 4 A |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 2 |
Connection data
| Conductor cross section solid min. | 0.14 mm² |
|---|---|
| Conductor cross section solid max. | 0.34 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 0.34 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 22 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
