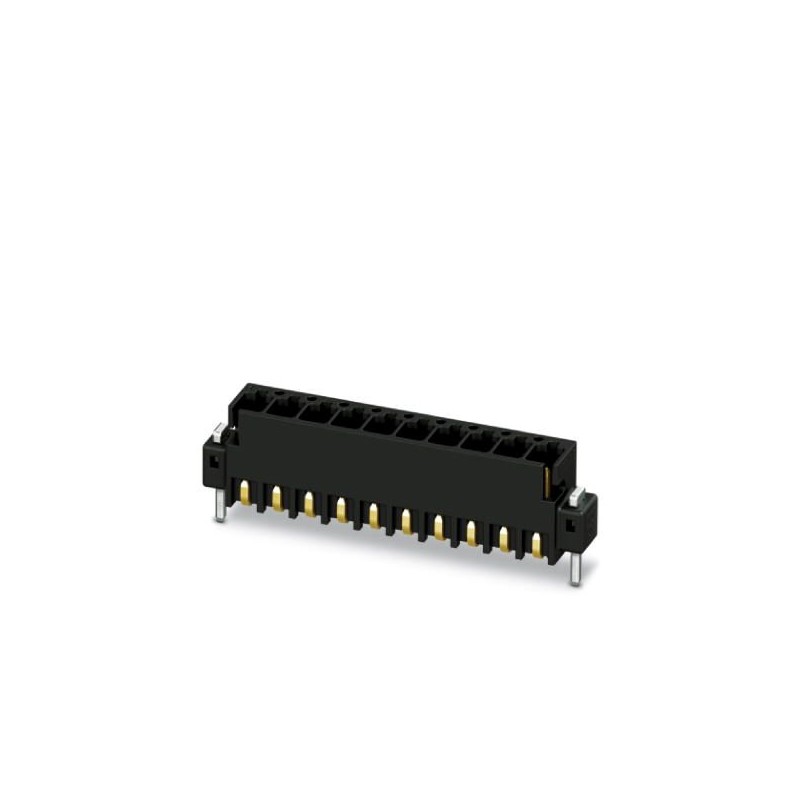

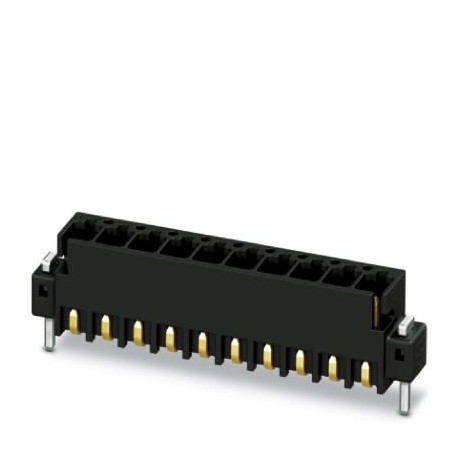

SAMPLE MCV 0,5/15-G-2,54 SMD 1859356 PHOENIX CONTACT PCB headers, nominal current: 6 A, rated voltage (III/2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SAMPLE MCV 0,5/15-G-2,54 SMD 1859356 PHOENIX CONTACT PCB headers, nominal current: 6 A, rated voltage (III/2..

SAMPLE MCV 0,5/15-G-2,54 SMD

1859356

PHOENIX_CONTACT

5

PCB headers, nominal current: 6 A, rated voltage (III/2): 160 V, number of positions: 15, pitch: 2.54 mm, color: black, contact surface: Gold, mounting: SMD soldering, Sample values available under SAMPLE MC...

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


PCB headers, nominal current: 6 A, rated voltage (III/2): 160 V, number of positions: 15, pitch: 2.54 mm, color: black, contact surface: Gold, mounting: SMD soldering, Sample values available under SAMPLE MC...

Key Commercial Data

Orderkey1859356
Packing unit1
GTIN4055626082967
Custom tariff number85366930

Dimensions

Length [ l ]7.1 mm
Width42.68 mm
Pitch2.54 mm
Dimension a35.56 mm
Width [ w ]42.68 mm
Height [ h ]4.85 mm
Height4.85 mm
Length of the solder pin2 mm
Pin dimensions0.64 x 0.64 mm
Length7.1 mm

General

Range of articlesMCV 0,5/..-G-SMD
Insulating material groupIIIa
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Flammability rating according to UL 94V0
Colorblack
Number of positions15

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

UNSPSC

UNSPSC 13.239121409

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
