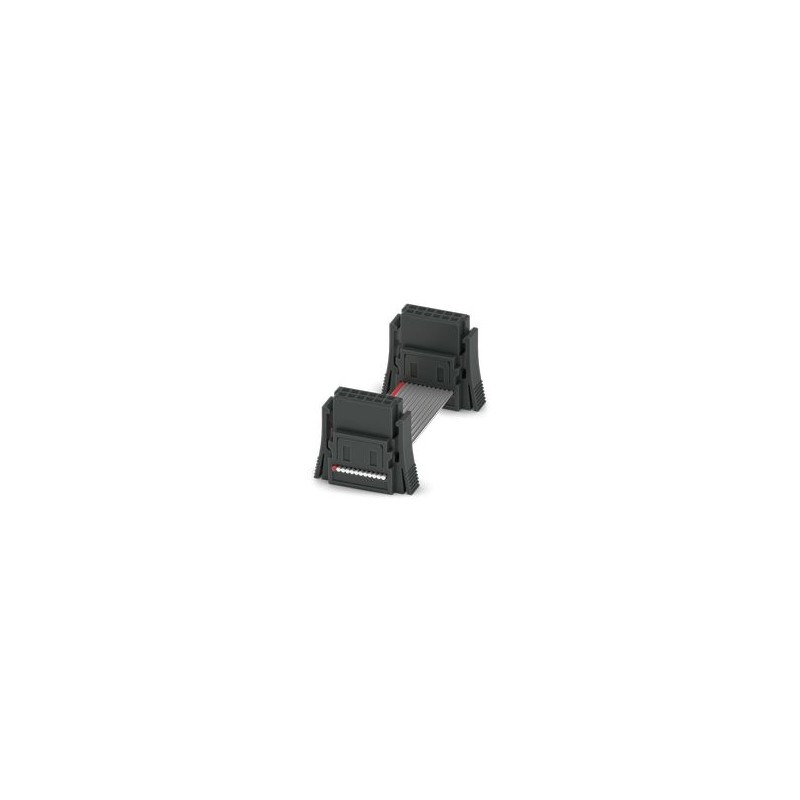

SAMPLE FR 1,27/80-FWL-11/P/0,1 1508273 PHOENIX CONTACT Ready-made IDC plug
SAMPLE FR 1,27/80-FWL-11/P/0,1
1508273
PHOENIX_CONTACT
10
Ready-made IDC plug
Ready-made IDC plug, rated current: 1.4 A
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Technical data
Item Properties
| Product Type | Ready-made IDC plug |
| Product Family | FR 1,27-Cabling |
| Number of poles | 80 |
| Step | 1.27 mm |
| Number of rows | 2 |
Electrical Properties
| Nominal Current IN | 1.4 A IEC 60512-5-2:2002-02 (at 20 °C 50 poles) |
| Degree of pollution | 3 |
| Contact resistance | 10 mΩ |
| Test voltage | 500 V AC IEC 60512-4-1:2003 |
Notes
| Note on documentation | Current documents such as 3D models, product family diagrams, data sheets or packaging diagrams are available in the Download Center. |
Dimensions
| Step | 1.27 mm |
| application | |
| Contact Coating | 0.9 mm |
| Shifting the Center | ± 0.7 mm on longitudinal and transverse axis |
| Angular Tolerance | ± 5° on longitudinal and transverse axis |
Electrical Testing
| Thermal Test | Test Group C | |
| Test Specification | IEC 60512-5-2:2002-02 |
| Insulation resistance | |
| Test Specification | IEC 60512-3-1:2002-02 |
| Insulation Resistance Adjacent Poles | ≥ 5 GΩ |
| Creepage Lines & Air Isolation Distances | | |
| Insulating material group | IIIb |
| Minimum air gap and creepage line value | 0.32 mm |
Environmental and life-life conditions
| Vibration test | |
| Test Specification | IEC 60068-2-6:2007-12 |
| frequency | 10 - 2000 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 1.5 mm (10 Hz ... 58 Hz) |
| Sweep speed | 200 m/s² (58 Hz ... 2000 Hz) |
| Test duration per axis | 1 h |
| Durability Test | |
| Test Specification | IEC 60512-9-1:2010-03 (compliance) |
| Contact Resistance R1 | 10 mΩ |
| Contact Resistance R2 | 12 mΩ |
| Plug Cycles | 500 |
| Insulation Resistance Adjacent Poles | ≥ 5 GΩ |
| Crash | |
| Test Specification | IEC 60068-2-27:2008-02 |
| Shock Type | Semi-sinusoidal |
| Acceleration | 490 m/s² |
| Duration of the crash | 11 ms |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Environmental conditions | |
| Ambient Temperature (Service) | -55 °C ... 125 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
Connectors
| Connection 1 | |
| Insulating material | LCP |
| CTI according to IEC 60112 | 150 |
