View larger

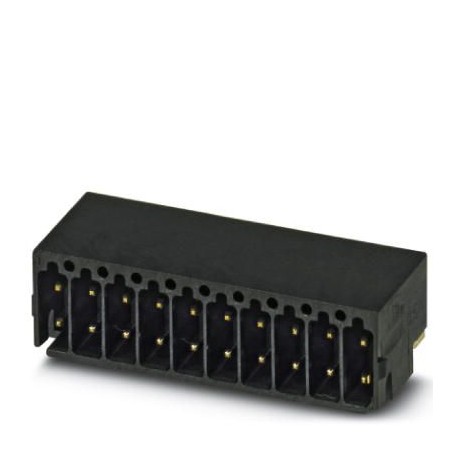

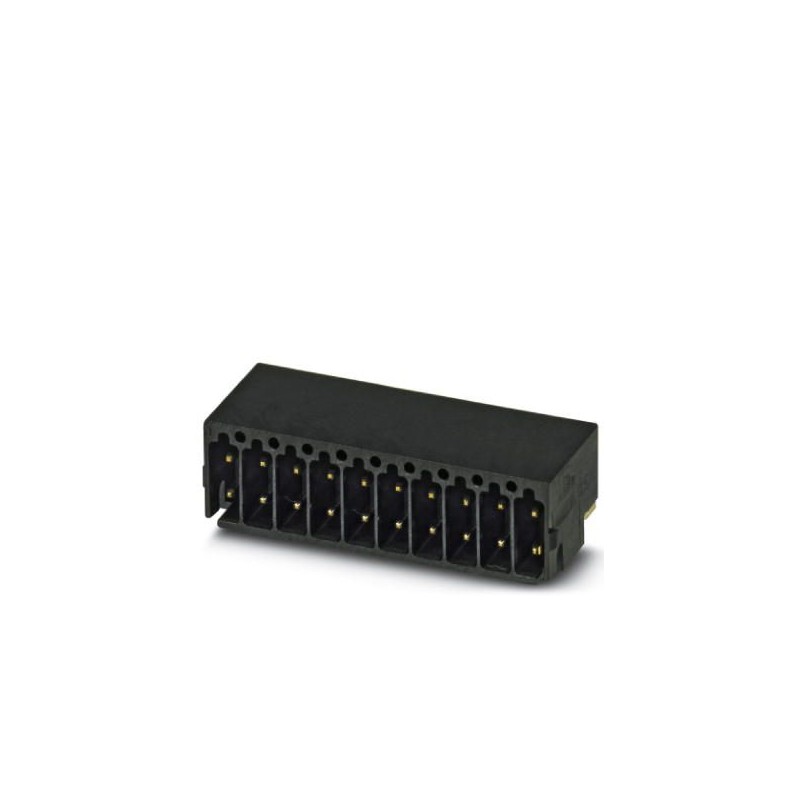

SAMPLE DMC 0,5/ 7-G1-2,54 SMD 1859848 PHOENIX CONTACT Sample set
SAMPLE DMC 0,5/ 7-G1-2,54 SMD
1859848
PHOENIX_CONTACT
5
Sample set
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Dimensions
| Length [ l ] | 12.26 mm |
|---|---|
| Width | 18.28 mm |
| Pitch | 2.54 mm |
| Dimension a | 15.24 mm |
| Width [ w ] | 18.28 mm |
| Height [ h ] | 11.39 mm |
| Height | 9.39 mm |
| Length of the solder pin | 2 mm |
| Pin dimensions | 0.64 x 0.64 mm |
| Pin spacing | 2.54 mm |
| Length | 12.26 mm |
General
| Range of articles | DMC 0,5/..-G1-SMD |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 32 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 160 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 6 A |
| Insulating material | LCP |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 7 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
