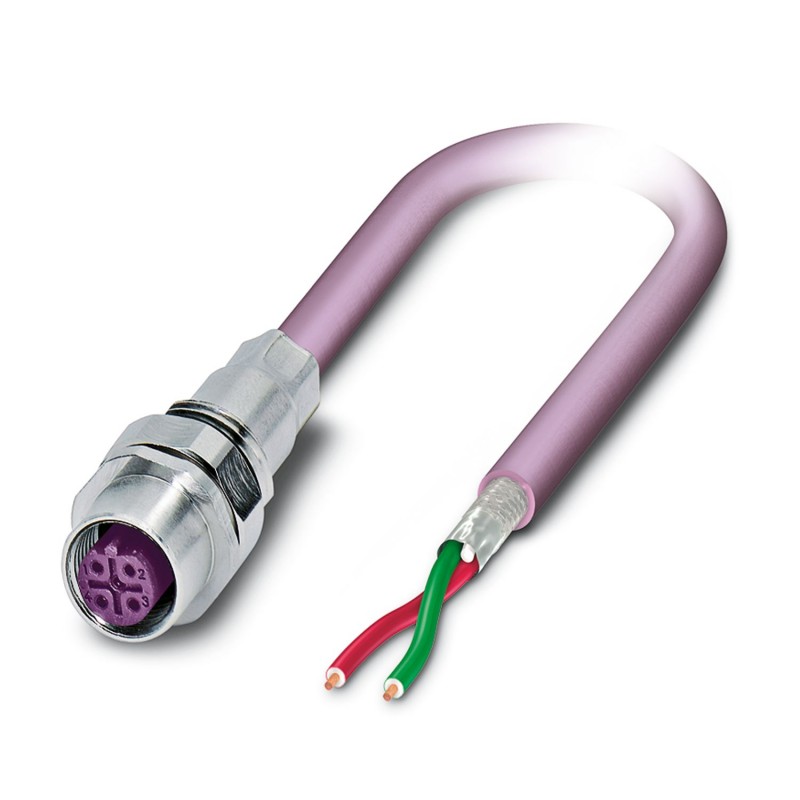

SACCEC-M12FSB-2CON-M16/10-910
1525911
PHOENIX_CONTACT
1
Bus system flat-type plug
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1525911 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 17 (PC-2005) |
GTIN | 4046356022521 |
Weight per Piece (excluding packing) | 622.000 g |
Custom tariff number | 85369010 |
Country of origin | DE (Germany) |
Rated current at 40°C | 4 A |
---|---|
Rated voltage | 60 V |
Number of positions | 2 |
Insulation resistance | ≥ 100 MΩ |
Coding | B - inverse |
Status display | No |
Degree of pollution | 3 |
Test voltage | 2500 V |
Connection method | PROFIBUS |
Mounting type | Front mounting M16 x 1.5 |
Flammability rating according to UL 94 | HB |
---|---|
Contact material | CuZn |
Contact surface material | Ni/Au |
Material, knurls | Metal |
Cable type | PROFIBUS |
---|---|
Conductor cross section | 0.22 mm² |
AWG signal line | 24 |
Conductor structure signal line | 19x 0.12 mm |
Core diameter including insulation | 2.55 mm ±0.07 mm |
Wire colors | Red, green |
Type of pair shielding | Aluminum-lined polyester foil |
Overall twist | 2 cores with 2 fillers to the core |
Shielding | Braided shielding made of galvanized copper wires |
Optical shield covering | 80 % |
External sheath, color | violet RAL 4001 |
External cable diameter | 7.80 mm |
Smallest bending radius, fixed installation | min. 78 mm |
Smallest bending radius, movable installation | min. 78 mm |
Number of bending cycles | 5000000 |
Bending radius | 78 mm |
Traversing path | 10 m |
Traversing rate | 3 m/s |
Acceleration | 7 m/s² |
Outer sheath, material | PUR |
Material conductor insulation | Foamed PE |
Conductor material | Tin-plated Cu litz wires |
Insulation resistance | ≥ 5 GΩ*km |
Conductor resistance | ≤ 78.4 mΩ/m |
Working capacitance | 32 pF (core-core) |
Nominal voltage, cable | 30 V |
Test voltage Core/Core | 1500 V |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
