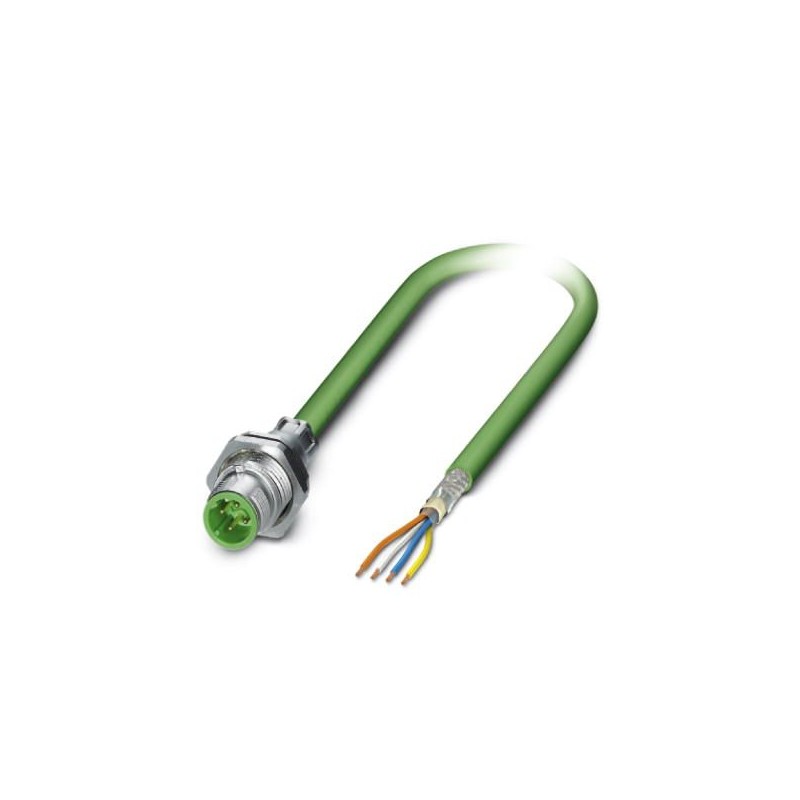

SACCBP-M12MSD-4CON-M16/0,5-933 1552340 PHOENIX CONTACT Bus system flat-type plug
SACCBP-M12MSD-4CON-M16/0,5-933
1552340
PHOENIX_CONTACT
Bus system flat-type plug
Conect. plug. to be apar. wall poster., PROFINET CAT5 (IEC11801:2002), 4-pole, PVC/PVC, green RAL 6018, Male connector, straight, M12, coding: D, to free cable end, Rear wall mount/screw mount, M16 x 1.5, Bus line, PROFINET, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1240016
Connectors > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1552340 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356162265 |
| Weight per Piece (excluding packing) | 66.200 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 4 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 4 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 250 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Nickel |
| Housing material (EF001596) | Plastic |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
Datasheet - PDF
