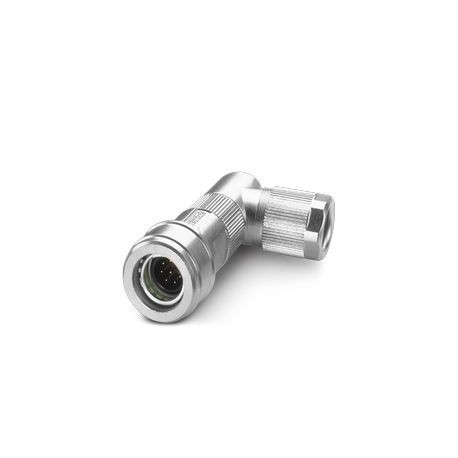

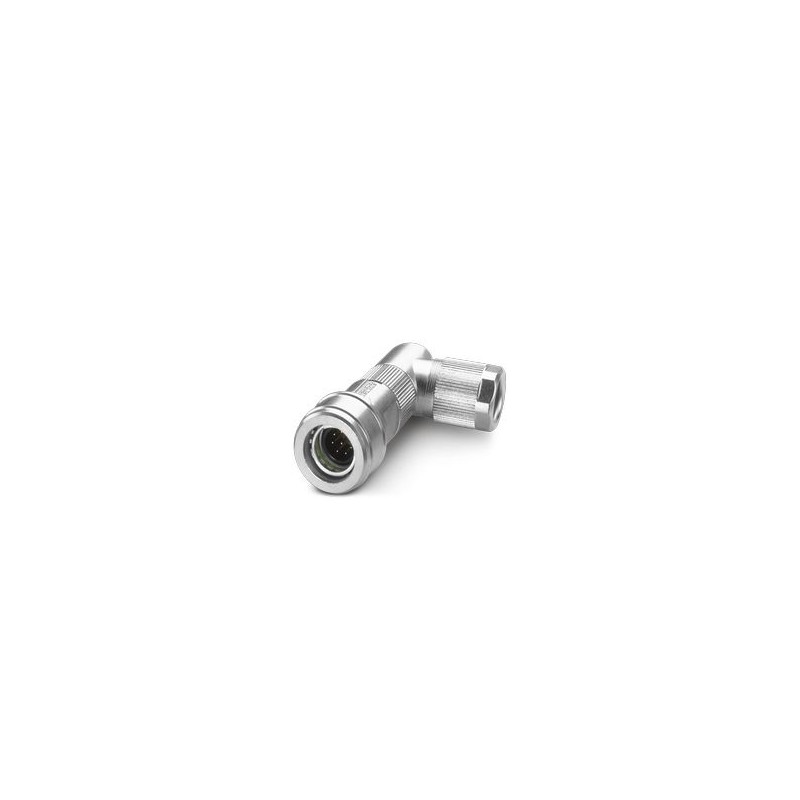

SACC-PO12MR-8CT-CM SH 1319945 PHOENIX CONTACT Connector, Universal, 8-pole, shielded, M12 angled male connec..
SACC-PO12MR-8CT-CM SH
1319945
PHOENIX_CONTACT
Connector, Universal, 8-pole, shielded, M12 angled male connector Push-Pull outer lock, coding: A, Crimp connection, knurling material: PA 6.6, cable outer diameter 4.5 mm ... 7.5 mm, no crimped contacts
Connector, Universal, 8-pole, shielded, M12 Push-Pull Elbowed Male Connector, A-Coded, Crimped Connection, Knurling Material: PA 6.6, Cable Outer Diameter 4.5 mm ... 7.5 mm, no crimped contacts
Connector, Universal, 8-position, shielded, Plug angled M12 Push-Pull, coding: A, Crimp connection, knurl material: PA 6.6, external cable diameter 4.5 mm ... 7.5 mm, without crimp contacts
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | NOTE:Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Assembly instructions | Contacts can be clipped in place and unclipped without tools |
| Connection method | Crimp connection |
| Product type | Circular connector (cable-side) |
| Sensor type | Universal |
| Number of positions | 8 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | A |
| Cable outlet | angled |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Dimensional drawing |  |
| Length | 53 mm |
| Wrench size, union nut | 15 mm |
| Wrench size, counter nut | 14 mm |
| External dimensions | |
| Outside diameter | 4.5 mm ... 7.5 mm |
| Housing | |
| Diameter housing | 22 mm |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material for screw connection | PA 6.6 |
| Conductor connection | |
| Connection method | Crimp connection |
| Connection cross section | 0.14 mm² ... 0.34 mm² (flexible) |
| Connection cross section AWG | 26 ... 22 (flexible) |
| Stripping length of the individual wire | 4 mm +0,5 mm |
| Tightening torque | 1.5 Nm (Screw plug insert with sleeve housing as far it will go) |
| 4 Nm (Pressure nut with coupling sleeve) | |
| Rated surge voltage | 0.8 kV |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V AC |
| 30 V DC | |
| Nominal current IN | 2 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Connection 1 | |
| Head design | Plug |
| Head cable outlet | angled |
| Head thread type | M12 |
| Head locking type | Push-Pull |
| Coding | A |
| Signal type/category | Universal |
| Stripping length of the individual wire | 4 mm +0,5 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 85 °C (Plug / socket) |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Note | In line with |
| Standard designation | Shock, vibration |
| Standards/specifications | EN 50155:2001 |
