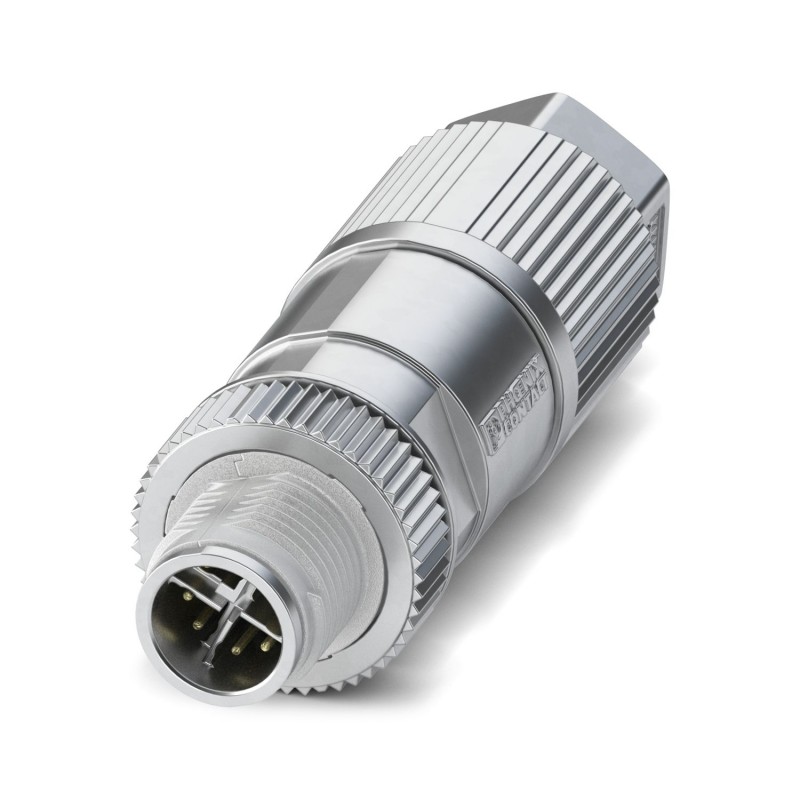

SACC-M12MSX-8QO SHETH EIA568A 1082320 PHOENIX CONTACT Connector, Ethernet CAT6
SACC-M12MSX-8QO SHETH EIA568A
1082320
PHOENIX_CONTACT
250
Connector, Ethernet CAT6
Connector, CAT6A Ethernet (10 GBit/s), 8-pole, halogen-free, shielded, M12 straight male connector, X, Offset connection. insulation, knurling material: Zinc die-casting, nickel-plated, wire outer diameter 5 mm... 9.7 mm
Connector, Ethernet CAT6A (10 Gbps), 8-position, halogen-free, shielded, Plug straight M12, coding: X, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm ... 9.7 mm
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Assembly note | NOTE:Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Product type | Circular connector (cable-side) |
| Sensor type | Ethernet |
| Number of positions | 8 |
| Shielded | yes |
| Coding | X |
| Cable outlet | straight |
| External dimensions | |
| Outside diameter | 5 mm ... 9.7 mm |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Conductor connection | |
| Connection method | Insulation displacement connection |
| Connection 1 | |
| Head design | Plug |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | X |
| Signal type/category | Ethernet CAT6A(IEC 11801), 10 Gbps |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
