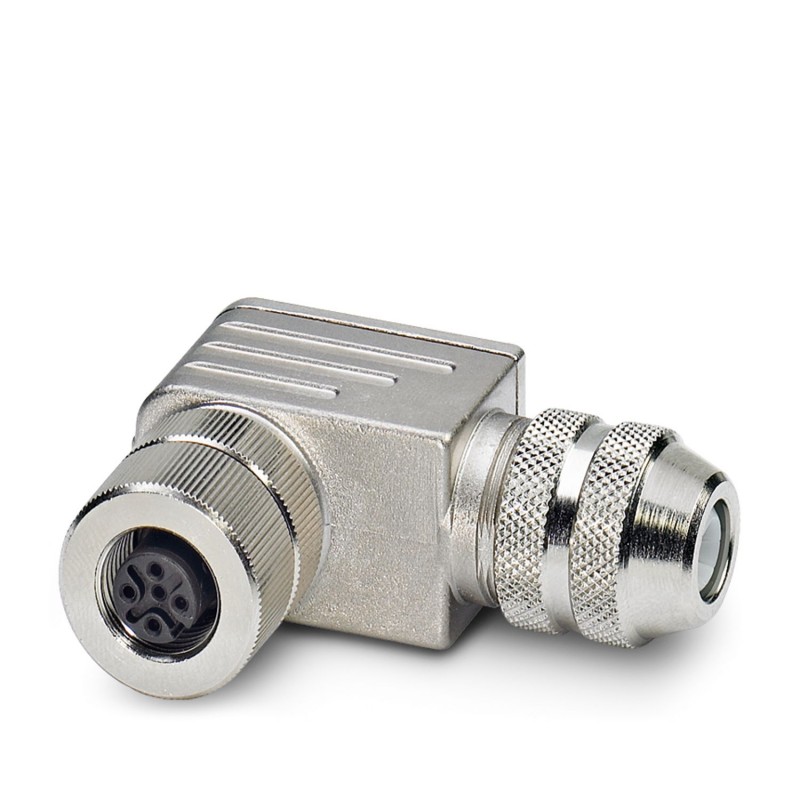

SACC-M12FR-5CON-PG 9-SH ADH 1411894 PHOENIX CONTACT Connector, 5-pos., shielded, angled M12 socket, A-coded,..
SACC-M12FR-5CON-PG 9-SH ADH
1411894
PHOENIX_CONTACT
Connector, 5-pos., shielded, angled M12 socket, A-coded, screw connection with pin screws, knurl material: brass, nickel-plated, Pg9 cable gland, outer cable diameter of 6 mm ... 8 mm
Plug-in, 5-pole, shielded connector, M12 angled female connector, with A coding, screw connection with studs, knurled material: brass, nickel-plated, Pg9 cable gland, cable outer diameter 6 mm ... 8 mm
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
Dimensions
| External cable diameter | 6 mm ... 8 mm |
|---|---|
| Stripping length of the sheath | 40 mm |
| Stripping length of the individual wire | 5 mm |
General
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.25 mm² ... 0.75 mm² |
| Conductor cross section AWG | 24 ... 18 |
| Insertion/withdrawal cycles | ≥ 50 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.2 Nm (Screw terminal blocks) | |
| 0.8 Nm ... 1 Nm (Pressure nut with coupling sleeve) | |
| Tightening torque | Screw plug insert with sleeve housing as far it will go |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
| The connector pin assignment can be rotated 90° to the cable outlet |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
|---|---|
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440102 |
|---|---|
| eCl@ss 4.0 | 27260700 |
| eCl@ss 4.1 | 27260700 |
| eCl@ss 5.0 | 27260700 |
| eCl@ss 5.1 | 27260700 |
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440102 |
| eCl@ss 8.0 | 27440102 |
| eCl@ss 9.0 | 27440102 |
UNSPSC
| UNSPSC 13.2 | 39121413 |
|---|---|
| UNSPSC 18.0 | 39121413 |
| UNSPSC 19.0 | 39121413 |
| UNSPSC 20.0 | 39121413 |
| UNSPSC 21.0 | 39121413 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 5 |
| For cable outer diameter (EF009475) | 6 mm |
| Type of housing (EF006980) | Angled |
| Rated current In (EF008250) | 4 A |
| Ambient temperature (EF002386) | -40 °C |
| Rated voltage (EF000228) | 60 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.25 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.25 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.25 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Min. number of insertion cycles (EF012212) | 50 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
