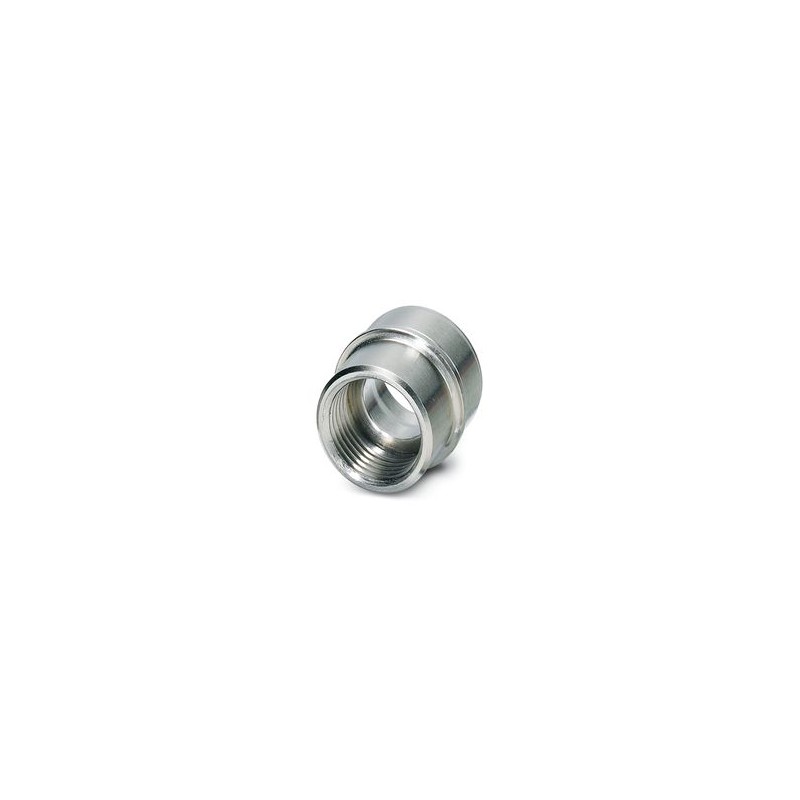

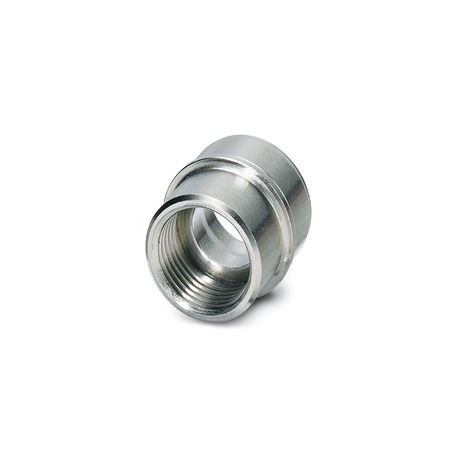

SACC-M12 NUT PRESS PPI 1454499 PHOENIX CONTACT Cable gland for housing, Female connection, M12-Internal Push..
SACC-M12 NUT PRESS PPI
1454499
PHOENIX_CONTACT
20
Cable gland for housing, Female connection, M12-Internal Push-Pull lock, THR weld connection
Housing cable glands
Housing screw connection, Socket, M12-Push-Pull, Front mounting, THR solder connection
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Product type | Panel mounting base |
| Thread type | M12 |
| Connection method | THR solder connection |
| Cross section AWG | (converted acc. to IEC) |
| Seal material | FKM |
| Material for screw connection | Brass, nickel-plated |
| Connection 1 | |
| Head design | Socket |
| Head thread type | M12 |
| Head locking type | Push-Pull |
| Mechanical data | |
| Insertion/withdrawal cycles | > 100 |
| Ambient conditions | |
| Degree of protection (when plugged in) | IP65/IP67 (correctly plugged in and locked) |
| Degree of protection | IP65/IP67 (correctly plugged in and locked) |
| IP67, when in locked state | |
| IP65, when in locked state | |
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
| -40 °C ... 85 °C (without mechanical actuation) | |
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-010 |
| Note | In line with |
| Mounting type | Front mounting Press-in mounting |
| Assembly instructions | Press-in mounting |
| Connection method | THR solder connection |
