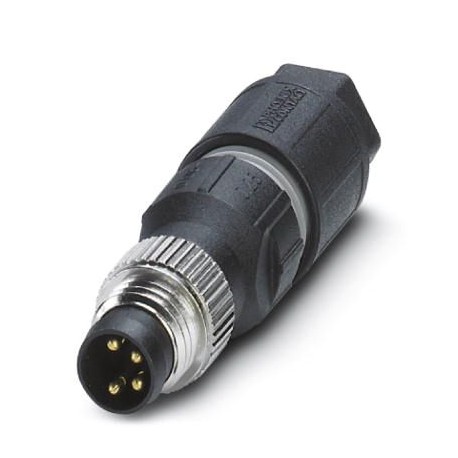

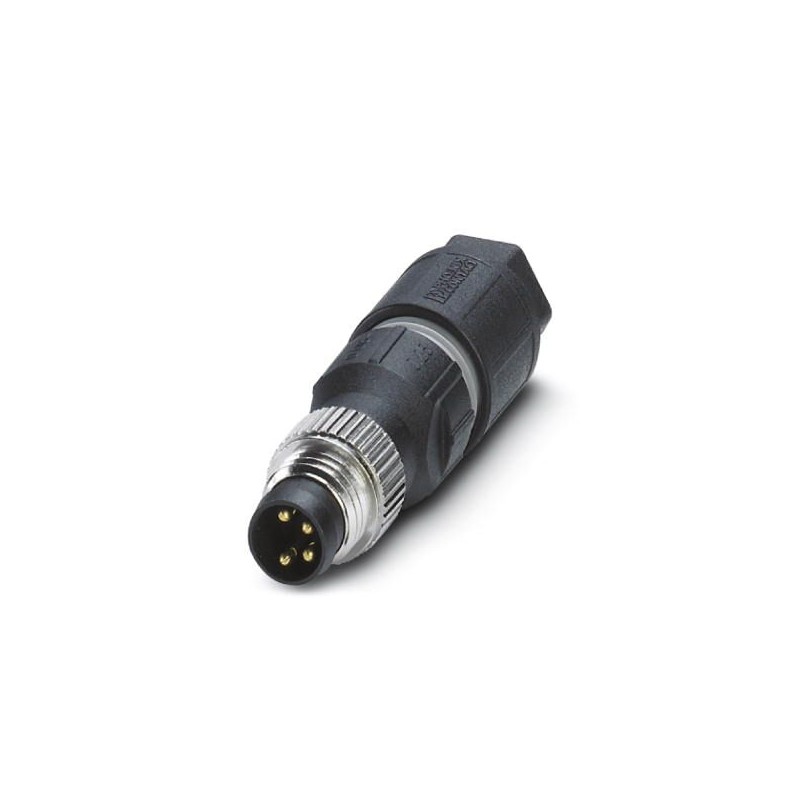

SACC-M 8MS-4QO-0,5-M RM MR 1144971 PHOENIX CONTACT Sensor/actuator connector, Universal, 4-position, Plug st..
SACC-M 8MS-4QO-0,5-M RM MR
1144971
PHOENIX_CONTACT
500
Product on demand only, returns will not be accepted.
Sensor/actuator connector, Universal, 4-position, Plug straight M8, A-coded, Insulation displacement connection, knurl material: Nickel-plated brass, external cable diameter 2.5 mm ... 5 mm, Customer version
Connector, Universal, 4-pole, M8 straight male connector, A-coded, Offset connection. Insulation, Knurling Material: Brass, Nickel-Plated, Outer Diameter of Cable 2.5mm... 5 mm, Customer variant
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Dimensions
| Diameter housing | 12.5 mm |
|---|---|
| Length | 43.4 mm |
| External cable diameter | 2.5 mm ... 5 mm ±0.2 mm |
| Stripping length of the sheath | 40 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 80 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 4 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Signal type/category | Universal |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Insulation displacement connection |
| Conductor cross section | 0.25 mm² ... 0.5 mm² |
| Conductor cross section AWG | 24 ... 20 |
| Wire diameter including insulation | 1.1 mm ... 1.55 mm |
| Frequency of connections between conductors of the same cross section | 10 |
| Wire insulation material | PVC / PE / PP / rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.6 Nm (Pressure nut) |
| 0.2 Nm (M8 knurl) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | PA 6 |
| Material, knurls | Nickel-plated brass |
| Sealing material | NBR |
Standards and Regulations
| Standards/specifications | M8 connector IEC 61076-2-104 |
|---|---|
| Flammability rating according to UL 94 | HB |
