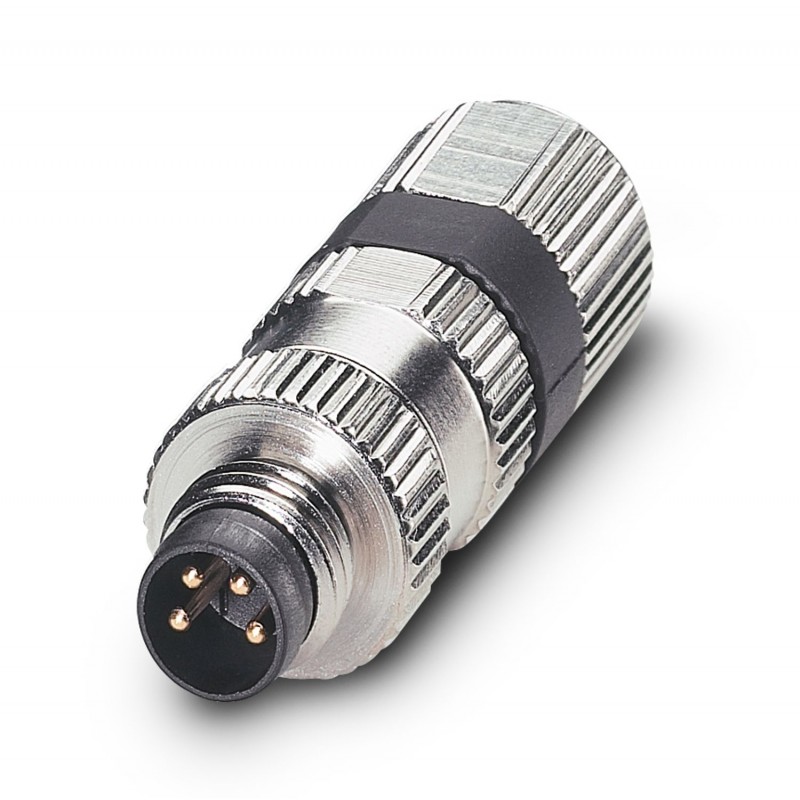

SACC-M 8MS-4PCON CX 1404598 PHOENIX CONTACT Sensor/actuator connector, male, straight, 4-pos., M8, Piercecon
SACC-M 8MS-4PCON CX
1404598
PHOENIX_CONTACT
50
Sensor/actuator connector, male, straight, 4-pos., M8, Piercecon
Connector for sensors/actuators, male, straight, 4-pole, M8, Piercecon®, knurled metal, cable diameter max. 5 mm
Sensors > Sensor-actuator connector
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP68 |
General
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 30 V |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Piercecon®fast connection |
| Conductor cross section | 0.14 mm² ... 0.38 mm² |
| Conductor cross section AWG | 22 ... 26 |
| Wire diameter including insulation | 1 mm ... 1.3 mm (Black wire clamping for 0.14 mm² ... 0.25 mm²) |
| 1.3 mm ... 1.6 mm (White wire clamping for 0.25 mm² ... 0.38 mm²) | |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.5 Nm (Pressure nut with coupling sleeve) |
| 0.8 Nm (Connector with coupling sleeve) | |
| 0.2 Nm (M8 knurl) |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material of grip body | PA 6.6 |
| Material, knurls | Nickel-plated brass |
| Sealing material | NBR |
Standards and Regulations
| Standards/specifications | M8 connector IEC 61076-2-104 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440102 |
|---|---|
| eCl@ss 4.0 | 27140800 |
| eCl@ss 4.1 | 27140800 |
| eCl@ss 5.0 | 27143400 |
| eCl@ss 5.1 | 27143400 |
| eCl@ss 6.0 | 27279200 |
| eCl@ss 7.0 | 27440104 |
| eCl@ss 8.0 | 27440104 |
| eCl@ss 9.0 | 27440102 |
UNSPSC
| UNSPSC 6.01 | 30211824 |
|---|---|
| UNSPSC 7.0901 | 39121413 |
| UNSPSC 11 | 39121413 |
| UNSPSC 12.01 | 39121413 |
| UNSPSC 13.2 | 39121413 |
| UNSPSC 18.0 | 39121413 |
| UNSPSC 19.0 | 39121413 |
| UNSPSC 20.0 | 39121413 |
| UNSPSC 21.0 | 39121413 |
