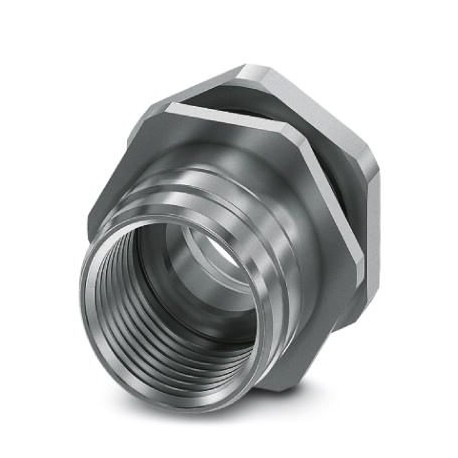

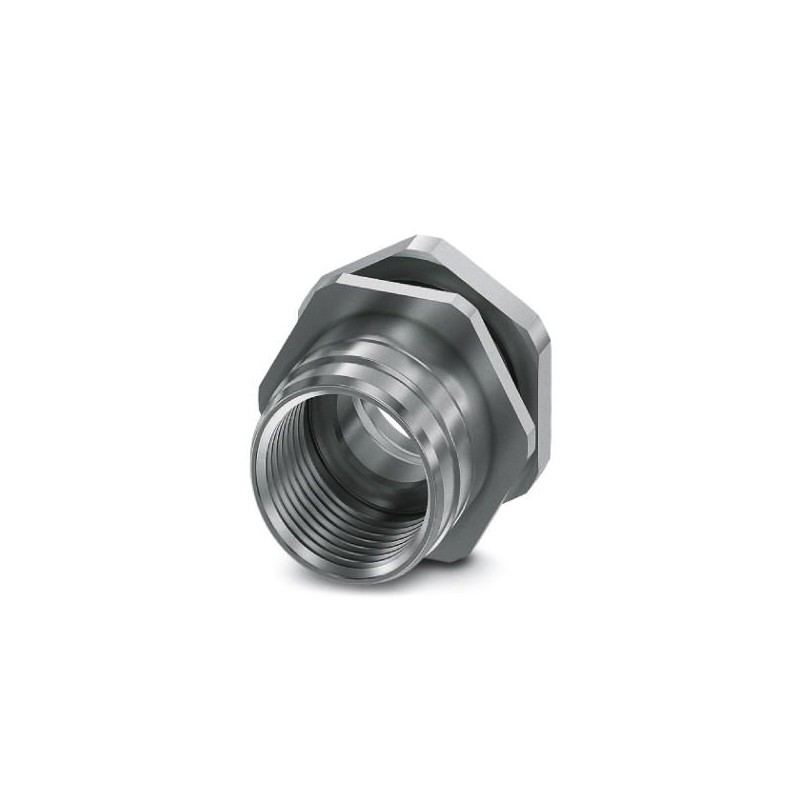

SACC-FP-F-M12-THR PP 1027678 PHOENIX CONTACT Housing screw connection
SACC-FP-F-M12-THR PP
1027678
PHOENIX_CONTACT
10
Housing screw connection
Housing cable gland, Connecting female, M12-Push-Pull, Front wall mounting, M14 x 1, THR- und Wellenlötkontakte
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1027678 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626533933 |
| Weight per Piece (excluding packing) | 9.640 g |
| Custom tariff number | 79070000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
|---|---|
| -40 °C ... 85 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Standards/regulations | M12 connector |
| Connection method | THR- und Wellenlötkontakte |
| Insertion/withdrawal cycles | > 100 |
| Torque | 1.5 Nm ... 2 Nm (Installation-side) |
| Mounting type | Front mounting |
Material
| Material of grip body | Nickel-plated brass |
|---|---|
| Material, knurls | Nickel-plated brass |
| Material | Brass, nickel-plated |
| Sealing material | FKM |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
