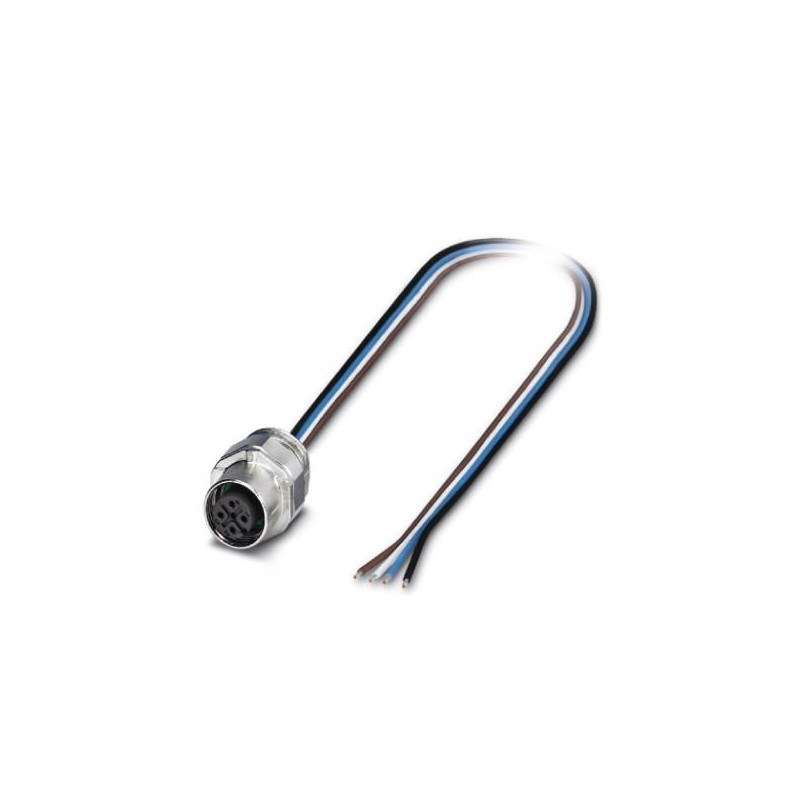

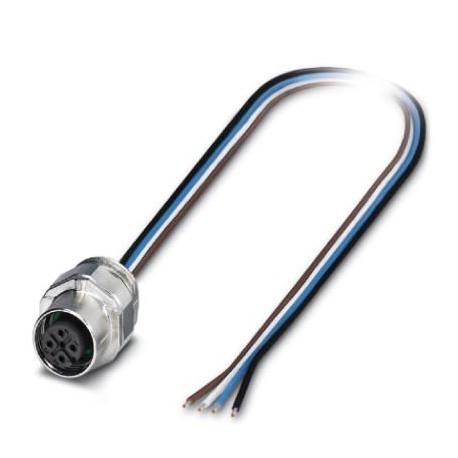

SACC-EC-FS-3CON-M16/0,23AESCO 1403549 PHOENIX CONTACT Flush-type connector
SACC-EC-FS-3CON-M16/0,23AESCO
1403549
PHOENIX_CONTACT
50
Flush-type connector
Built-in sensor/actuator mounting female, 3-pole, SPEEDCON M12, A-coding, front wall/screwed mounting with M16 thread, positionable, with 0.23 m TPE twisted wire, 3 x 0.34 mm², special connection
Connectors > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1403549 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356658317 |
| Weight per Piece (excluding packing) | 18.680 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 0.23 mm |
| Type of plug-in contact, outer side (EF005528) | None |
| Mounting method (EF000003) | Front mounting |
| Housing material (EF001596) | Other |
| Material core insulation (EF000061) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 250 V |
| With shield connection (EF002535) | No |
| Screw-in thread (EF012303) | M12 |
| Core cross section (EF000018) | 0.34 mm² |
| Degree of protection (IP), mounted (EF007466) | IP67 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
