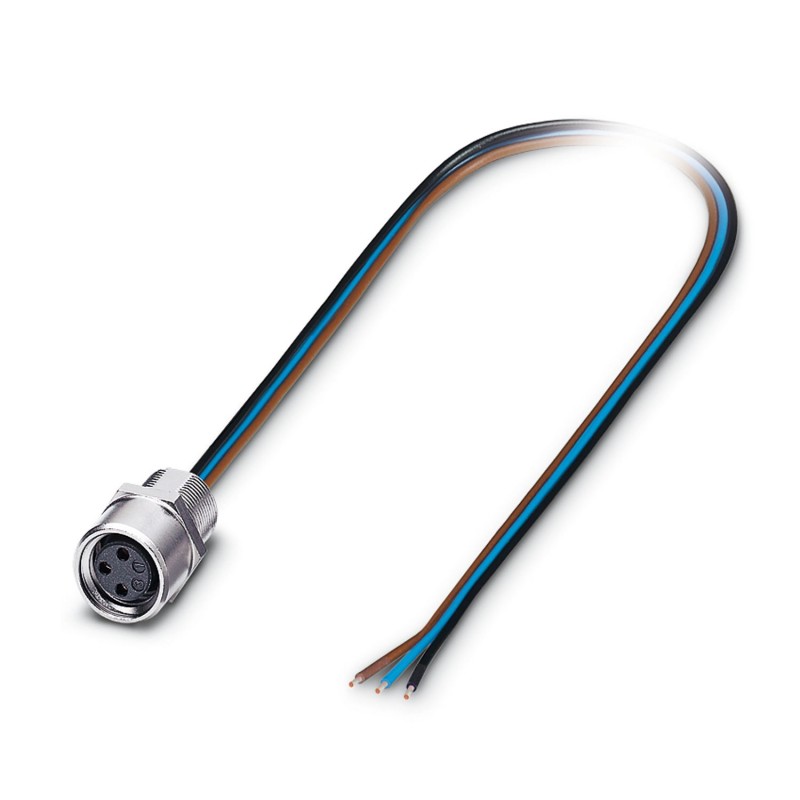

SACC-E-M 8FS-3CON-M8/2,0 1081551 PHOENIX CONTACT Flush-type connector, 3-position, Socket, straight, M8, Fro..
SACC-E-M 8FS-3CON-M8/2,0
1081551
PHOENIX_CONTACT
25
Flush-type connector, 3-position, Socket, straight, M8, Front mounting, M8 x 0.5, Individual wires, cable length: 2 m, 0.25 mm², PVC litz wire
Conect. plug. to be apar. front wall, 3-pole, Connecting female, straight, M8, Front wall mounting, M8 x 0.5, Single stranded wires, cable length: 2 m, 0.25 mm², PVC conductor
Connectors > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1081551 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 100 pc |
| GTIN | 4055626810300 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 3 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 4 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 48 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Plastic |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
