SACC-E-FS-12CON-M16/3,0 SCO 1413119 PHOENIX CONTACT Flush-type connector SACC-E-FS-12CON-M16/3,0 SCO 1413119
SACC-E-FS-12CON-M16/3,0 SCO
1413119
PHOENIX_CONTACT

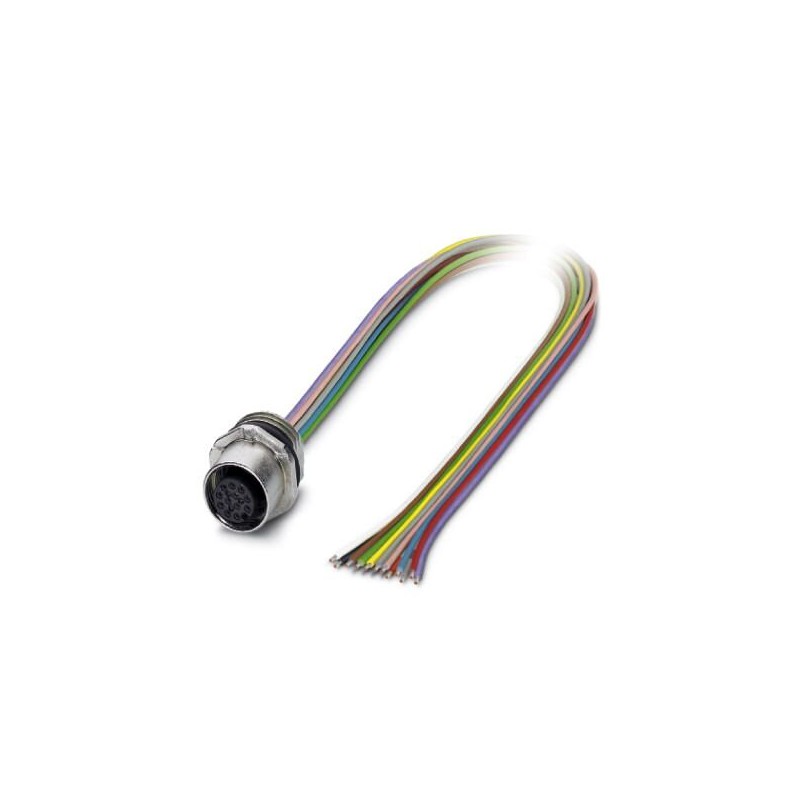

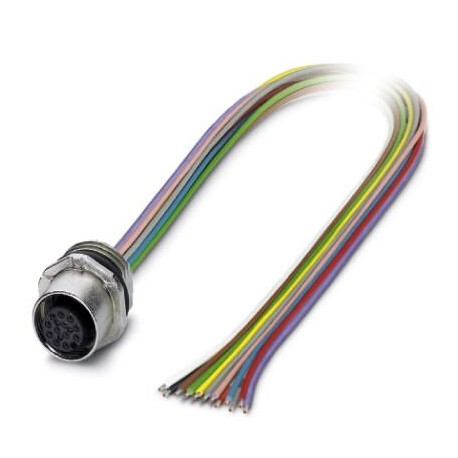

Flush-type connector - SACC-E-FS-12CON-M16/3,0 SCO - 1413119
Built-in sensor/actuator mounting female, 12-pole, SPEEDCON M12, front wall mount/bolt mount, with M16 thread, with 0.5 m PVC wire, 12 x 0.14 mm²
Connectors > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Sensor/actuator flush-type socket, 12-pos., M12 SPEEDCON, front/screw mounting with M16 thread, with 0.5 m PVC litz wire, 12 x 0.14 mm²
Key Commercial Data
| Orderkey | 1413119 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356988285 |
| Custom tariff number | 85366990 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27143423 |
|---|---|
| eCl@ss 6.0 | 27143423 |
| eCl@ss 8.0 | 27279218 |
| eCl@ss 9.0 | 27440103 |
ETIM
| ETIM 4.0 | EC001855 |
|---|---|
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC002061 |
UNSPSC
| UNSPSC 13.2 | 39121413 |
|---|
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 3 mm |
| Type of plug-in contact, outer side (EF005528) | None |
| Mounting method (EF000003) | Front mounting |
| Housing material (EF001596) | Other |
| Material core insulation (EF000061) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 30 V |
| With shield connection (EF002535) | No |
| Screw-in thread (EF012303) | M12 |
| Core cross section (EF000018) | 0.14 mm² |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
