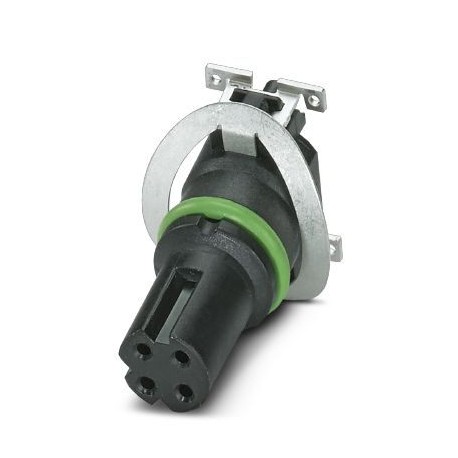

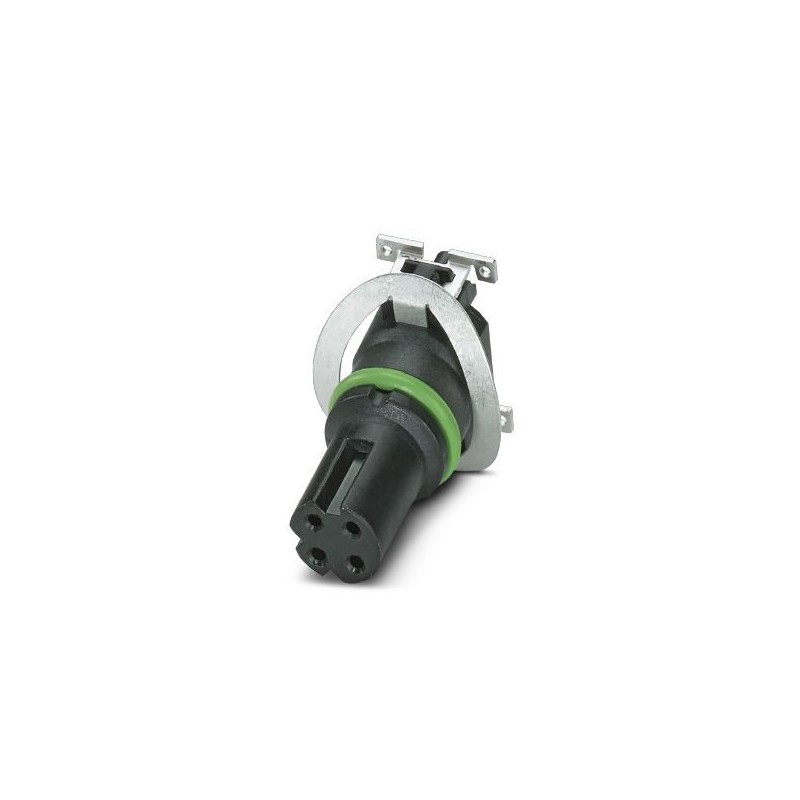

SACC-CIP-M8FSD-4P SMD SH R32 1068454 PHOENIX CONTACT Flush-type connector, Ethernet/PROFINET CAT5 (100 Mbps)..
SACC-CIP-M8FSD-4P SMD SH R32
1068454
PHOENIX_CONTACT
120
Flush-type connector, Ethernet/PROFINET CAT5 (100 Mbps), 4-position, Socket, straight, M8, D-coded, PCB mounting, SMD
Plug-in Built-in Mount Connector, Ethernet / PROFINET CAT5 (100 MBit/s), 4-Pole, Female Connection, Straight, M8, D-Coded, Printed Circuit Board Mount, SMD
Connectors > Contact insert for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1068454 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 100 pc |
| GTIN | 4055626801919 |
| Weight per Piece (excluding packing) | 5.400 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 105 °C |
|---|---|
| -40 °C ... 105 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 50 V AC |
| 60 V DC | |
| Rated surge voltage | 1.5 kV |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | D-coded |
| Standards/regulations | M8 connector IEC 61076-2-114 In line with |
| Signal type/category | Ethernet/PROFINET CAT5, 100 Mbps |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | SMD |
| Insertion/withdrawal cycles | > 100 |
| Mounting type | PCB mounting |
| Type of packaging | Belt |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Sealing material | FKM |
Cable
| Standards/specifications | M8 connector IEC 61076-2-114 In line with |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Standards and Regulations
| Standards/specifications | M8 connector IEC 61076-2-114 In line with |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
