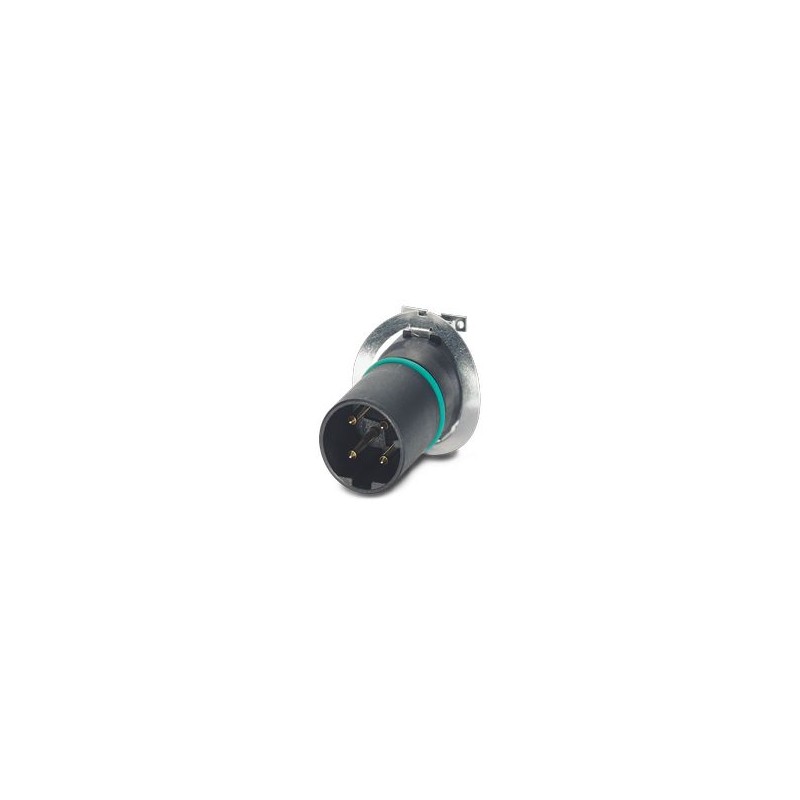

SACC-CIP-M12MSD-4P SMD SH TX 1308063 PHOENIX CONTACT Contact Support, Ethernet / PROFINET CAT5 (100 MBit/s),..
SACC-CIP-M12MSD-4P SMD SH TX
1308063
PHOENIX_CONTACT
60
Contact Support, Ethernet / PROFINET CAT5 (100 MBit/s), 4-Pole, Male Connector, Straight, M12, Coding: D, Printed Circuit Board Mounting, SMD Reflow, RoHS II Lead-Free Article Without Exception 6c (Pb< 0.1%)
Contact carrier, Ethernet/PROFINET CAT5 (100 Mbps), 4-position, Pin, straight, M12, coding: D, PCB mounting, SMD reflow, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| General | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Product type | Contact insert |
| Sensor type | Ethernet/PROFINET |
| Number of positions | 4 |
| Application | Signal |
| Seal present | yes |
| Shielded | yes |
| Coding | D |
| Thread type | M12 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Rated surge voltage | 2.5 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 250 V |
| Nominal current IN | 4 A |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Connection method | SMD reflow |
| Cross section AWG | (converted acc. to IEC) |
| Signal type/category | Ethernet/PROFINET CAT5, 100 Mbps |
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Connection 1 | |
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | D |
| Signal type/category | Ethernet/PROFINET CAT5, 100 Mbps |
| Mechanical data | |
| Insertion/withdrawal cycles | > 100 |
| Ambient conditions | |
| Degree of protection (when plugged in) | IP67 (correctly plugged in and locked) |
| Degree of protection | IP67, when plugged in |
| Ambient temperature (operation) | -40 °C ... 105 °C (Plug / socket) |
| -55 °C ... 105 °C (without mechanical actuation) | |
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Note | In line with |
| Mounting type | PCB mounting |
| Connection method | SMD reflow |
| Type of packaging | Tray |
| Delivery state | with assembly pad |
