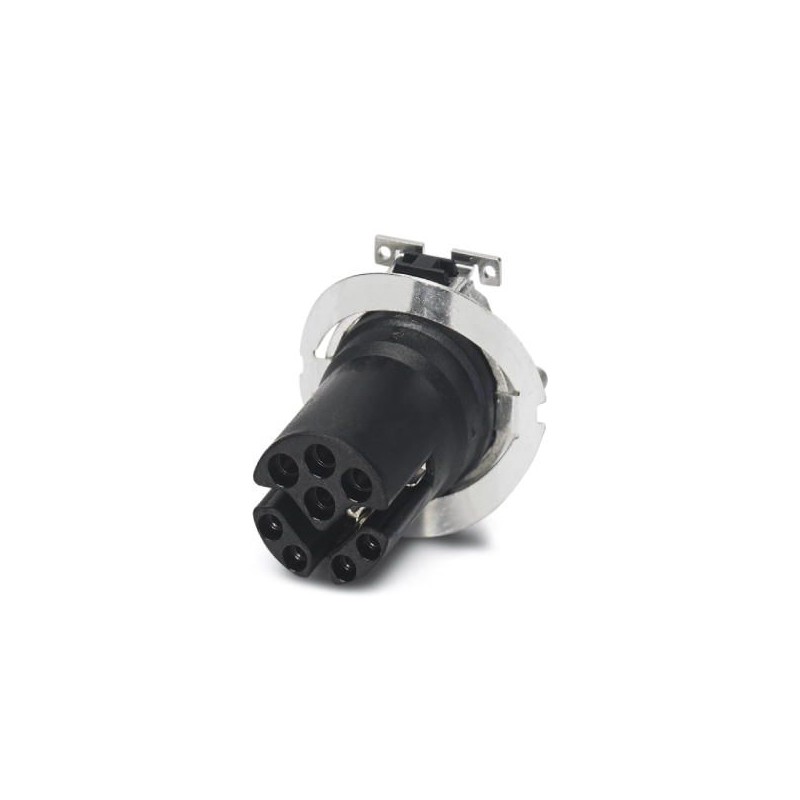

SACC-CI-M12FSY-8P SMD SH-SP 1418638 PHOENIX CONTACT Sample set
SACC-CI-M12FSY-8P SMD SH-SP
1418638
PHOENIX_CONTACT
5
Sample set
Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1418638 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626162928 |
| Weight per Piece (excluding packing) | 10.160 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 105 °C |
|---|---|
| -55 °C ... 105 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Rated current at 40°C | 0.5 A (Data) |
| 6 A (Power) | |
| Rated voltage | 30 V (Power and data) |
| Rated surge voltage | 0.8 kV |
| Number of positions | 8 |
| Insulation resistance | > 100 MΩ |
| Coding | Y - hybrid |
| Signal type/category | Universal |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | SMD |
| Insertion/withdrawal cycles | > 100 |
| Mounting type | PCB mounting |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Additional material specifications | Zinc die-cast, nickel-plated (Shield crossover) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
