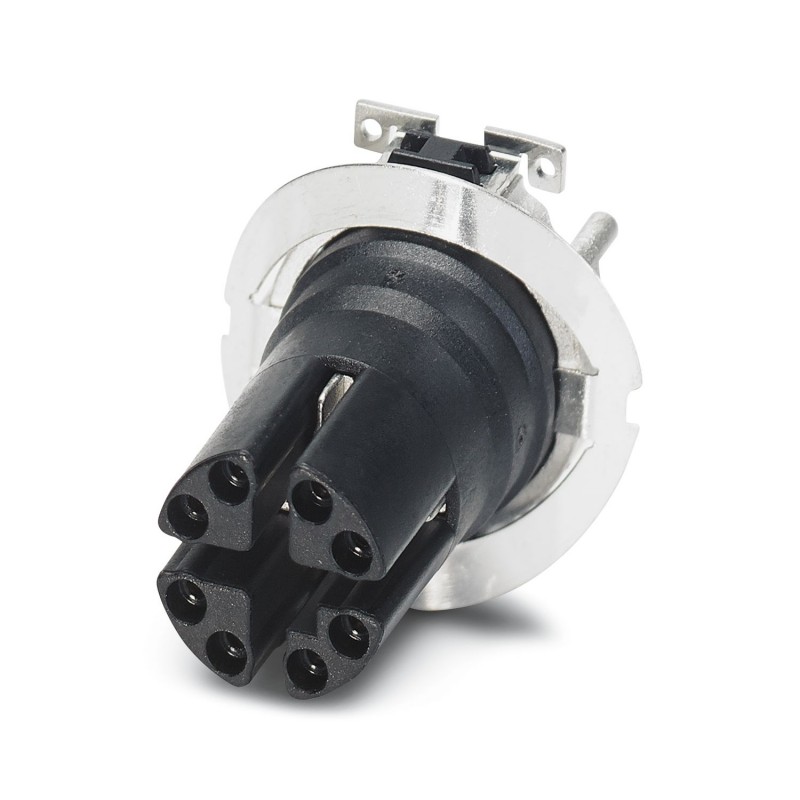

SACC-CI-M12FSX-8P SMD SH R32PD 1081252 PHOENIX CONTACT Flush-type connector, Ethernet, 8-position, Socket, s..
SACC-CI-M12FSX-8P SMD SH R32PD
1081252
PHOENIX_CONTACT
100
Flush-type connector, Ethernet, 8-position, Socket, straight, M12, X - data, PCB mounting, SMD
Plug-in Mounting Connector, Ethernet, 8-Pole, Connecting Female, Straight, M12, Encoding: X, Printed Circuit Board Mounting, SMD, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) Item code: 1238306
Connectors > Contact insert for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 105 °C (Plug / socket) |
|---|---|
| -55 °C ... 105 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Rated current at 40°C | 0.5 A (Data) |
| Rated voltage | 50 V AC |
| 60 V DC | |
| Rated surge voltage | 1.5 kV |
| Number of positions | 8 |
| Insulation resistance | > 100 MΩ |
| Coding | X - data |
| Standards/regulations | M12 connector IEC 61076-2-109 In line with |
| Signal type/category | Ethernet |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | SMD |
| Insertion/withdrawal cycles | > 100 |
| Mounting type | PCB mounting |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Additional material specifications | Zinc die-cast, nickel-plated (Shield crossover) |
Cable
| Standards/specifications | M12 connector IEC 61076-2-109 In line with |
|---|---|
| Transmission characteristics (category) | CAT6A |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-109 In line with |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 8 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 0.5 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 50 V |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Plastic |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Min. number of insertion cycles (EF012212) | 100 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
