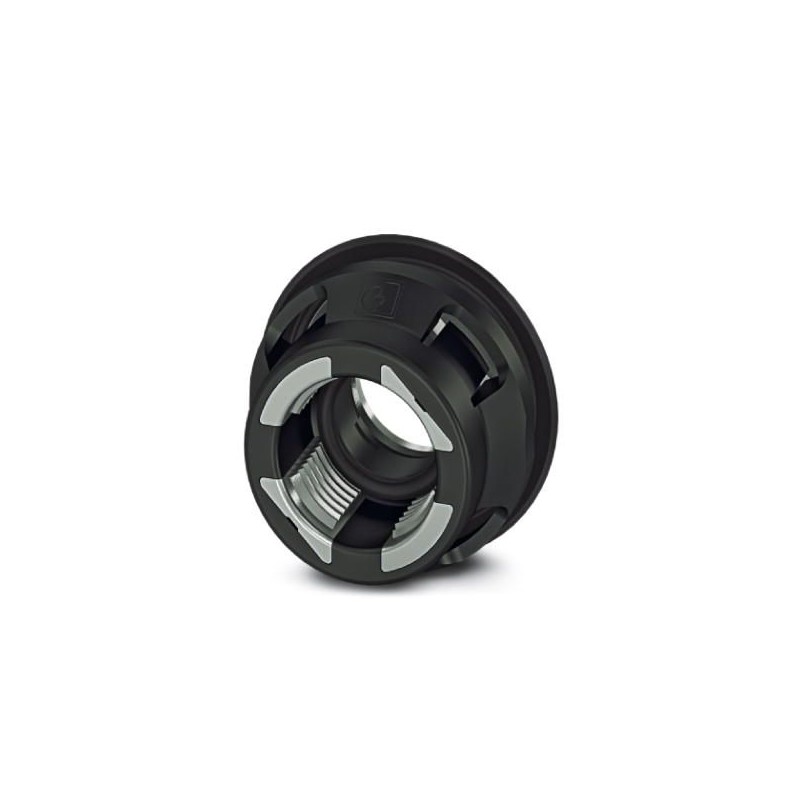

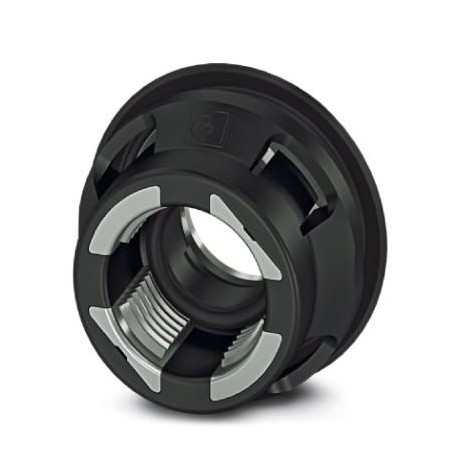

SACC-BP-F-M12/VAR-2,4/3,2-9TIP 1414233 PHOENIX CONTACT Housing screw connection
SACC-BP-F-M12/VAR-2,4/3,2-9TIP
1414233
PHOENIX_CONTACT
10
Housing screw connection
Fasteners > Threaded sleeve
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1414233 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626022741 |
| Weight per Piece (excluding packing) | 10.480 g |
| Custom tariff number | 79070000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
|---|---|
| -40 °C ... 85 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of pollution, the connector must be sealed using a protective cap > IP54. The M12 housing screw connection can only be used in conjunction with mating connectors and protective caps with M12 standard thread. Mating connectors with SPEEDCON thread cannot be used. |
|---|---|
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Insertion/withdrawal cycles | > 100 |
| Torque | 0.6 Nm (Tightening torque of mating connector) |
| Mounting type | Rear mounting 2-section, lockable |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Sealing material | FKM (Form seal) |
| FKM (O-ring (pin connector pattern)) | |
| Additional material specifications | PA 6.6 (Fixing sleeve) |
| Zinc die-cast, nickel-plated (Threaded sleeve) | |
| Color | black (Fixing sleeve) |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.123100602eCl@ss 5.123100600eCl@ss 6.023100600eCl@ss 7.023100602eCl@ss 8.023100602eCl@ss 9.023100602
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
