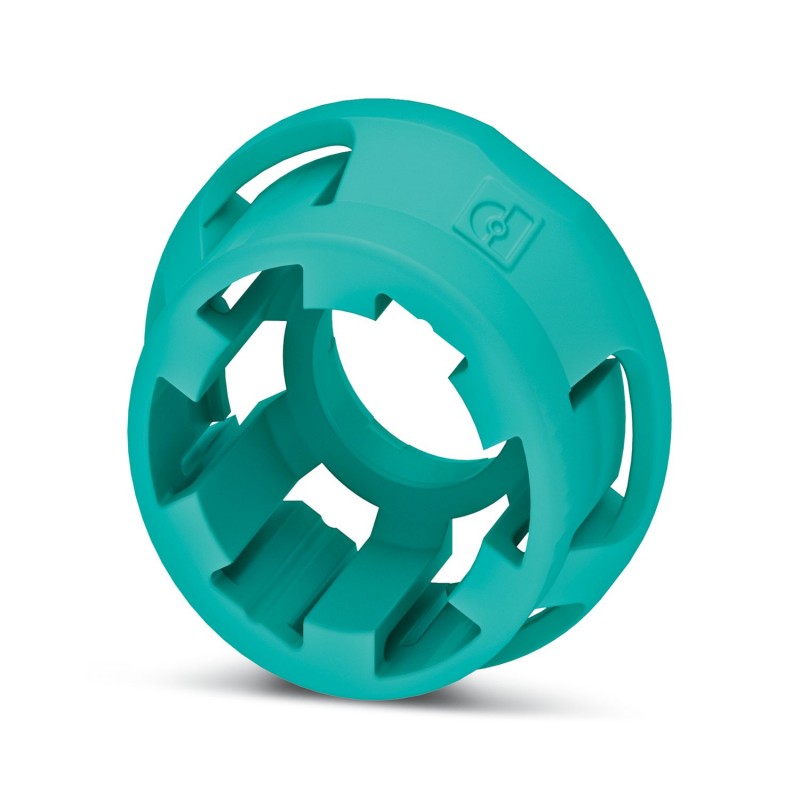

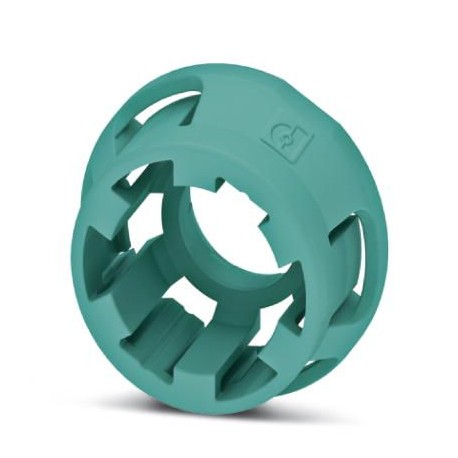

SACC-BP-F-FIX/NUT-CY-SMD 1419565 PHOENIX CONTACT Housing screw connection
SACC-BP-F-FIX/NUT-CY-SMD
1419565
PHOENIX_CONTACT
10
Housing screw connection
Clamping sleeve for M12 housing cable gland with tolerance compensation function, for M12 female contact inserts compatible with SMD.
Fixing sleeve for M12 housing screw connection with tolerance-compensating function, for SMD-solderable M12 socket contact inserts.
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Product type | Panel mounting base |
| Thread type | M12 |
| Data management status | |
| Article revision | 01 |
| Color | water blue (Fixing sleeve) |
| Material | PA 6.6 (Fixing sleeve) |
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Connection 1 | |
| Head design | Socket |
| Head thread type | M12 |
| Ambient conditions | |
| Degree of protection (when plugged in) | IP67 (correctly plugged in and locked) |
| Degree of protection | IP67 (correctly plugged in and locked) |
| IP67, when in locked state | |
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
| -40 °C ... 85 °C (without mechanical actuation) | |
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Note | In line with |
| Mounting type | Rear mounting 2-section, lockable |
| Assembly note | 2-section, lockable |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
