SACC-8P-DSI-M12MS/FS-M16 VPE50 1448687 PHOENIX CONTACT Sensor/actuator control cabinet feed-through, male to.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SACC-8P-DSI-M12MS/FS-M16 VPE50 1448687 PHOENIX CONTACT Sensor/actuator control cabinet feed-through, male to..

SACC-8P-DSI-M12MS/FS-M16 VPE50

1448687

PHOENIX_CONTACT

250

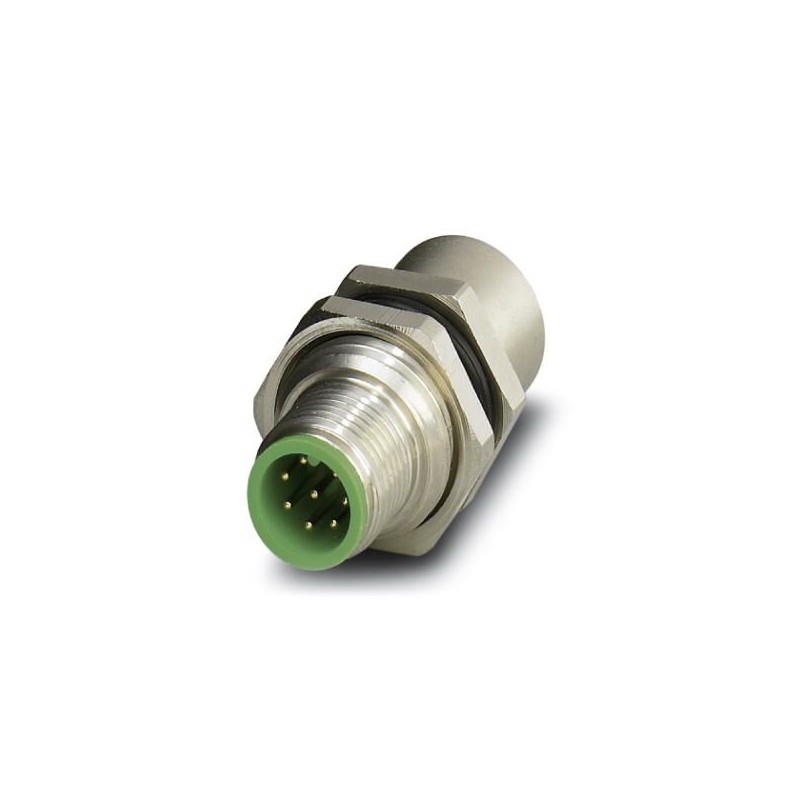

Sensor/actuator control cabinet feed-through, male to female, 8-pos., M12, shielded, bipolar/screw mounting with M16 thread

More details


Sensors > Sensor-actuator connector chassis

Field Device Connectors (FDC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $9,433.36
Unit price: $37.73

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey1448687
Packing unit1
GTIN4046356721783
Custom tariff number85366990

Drawings

Dimensional drawing

Dimensional drawing

Dimensional drawing

Dimensional drawing
Housing cutout for M16 fastening thread, mounting panel with feed-through hole (alternatively with area as anti-rotation protection for panel thicknesses > 2 mm up to max. 4.5 mm)

Circuit diagram

Circuit diagram
Contact assignment of the M12 plug and the M12 socket

Schematic diagram

Schematic diagram
Pin assignment M12 plug, 8-pos., view plug side

Schematic diagram

Schematic diagram
Pin assignment M12 socket, 8-pos., A-coded, view female side

Back to top

Ambient conditions

Degree of protectionIP67
Back to top

General

Rated current at 40°C1.5 A
Rated voltage24 V
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Back to top

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsNickel-plated brass
Sealing materialFPM
Back to top

Cable

Standards/specificationsM12 connector IEC 61076-2-101
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-101
Flammability rating according to UL 94HB
Back to top

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027061800
eCl@ss 5.127269200
eCl@ss 6.027269200
eCl@ss 7.027449203
eCl@ss 8.027449203
eCl@ss 9.027440392
Back to top

ETIM

ETIM 3.0EC001855
ETIM 4.0EC002498
ETIM 5.0EC002061
ETIM 6.0EC002061
Back to top

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.239121421
UNSPSC 18.039121421
UNSPSC 19.039121421
UNSPSC 20.039121421
UNSPSC 21.039121421
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX CONNECTORS EN.pdf 57 Mbytes
