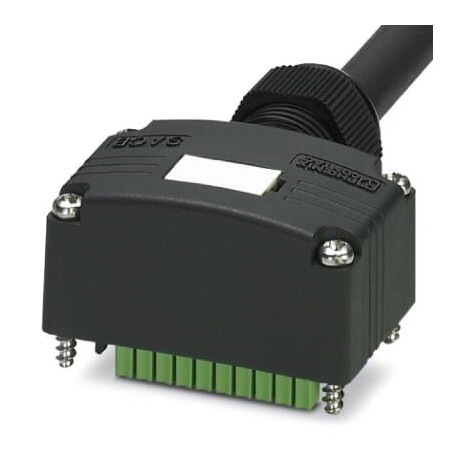

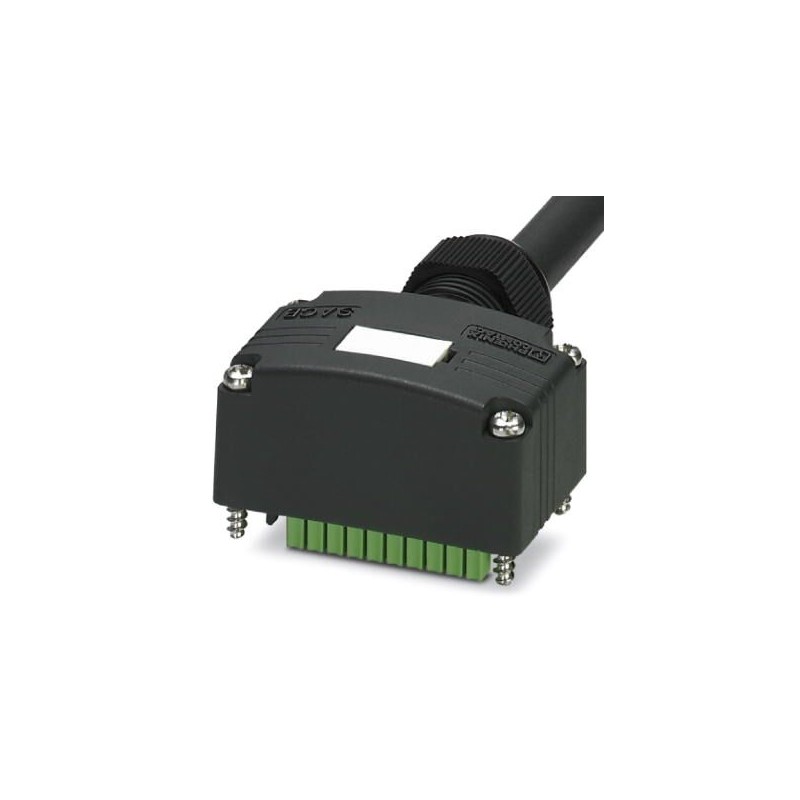

SACB-C-H180-8/ 8-20,0PUR SCO P 1143054 PHOENIX CONTACT Connector hood, application: Sensor/actuator box, num..
SACB-C-H180-8/ 8-20,0PUR SCO P
1143054
PHOENIX_CONTACT
25
Connector hood, application: Sensor/actuator box, number of slots: 4, slot assignment: Double, status display: No; master cable connection: Pluggable screw connection 180°, PUR/PVC, cable length: 20 m, shielding: no
Connection cover, application: sensor/actuator box, number of plug-in stations: 4, occupancy of plug-in stations: Double, status indication: No; Main cable connection: 180° plug-in screw connection, PUR/PVC, cable length: 20 m, shielding: no
Sensors > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
General
| Rated voltage | 120 V AC |
|---|---|
| 120 V DC | |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 10 A |
| Number of slots | 4 |
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C |
Master cable connection data
| Connection method | Pluggable screw connection |
|---|---|
| Length of cable | 20 m |
Insulation material
| Housing material | PBT |
|---|---|
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Sn |
| Material of the contact carrier on the master cable side | PA |
| Sealing material | NBR |
Cable
| Cable type | PUR/PVC black |
|---|---|
| Cable type (abbreviation) | PUR |
| Cable abbreviation | LiYY11Y-HF |
| UL AWM style | 20549 |
| Conductor cross section | 8x 0.5 mm² (Signal line) |
| 3x 1 mm² (power line) | |
| AWG signal line | 20 |
| AWG power supply | 17 |
| Conductor structure signal line | 28x 0.15 mm |
| Conductor structure, voltage supply | 56x 0.15 mm |
| Core diameter including insulation | 1.5 mm ±0.1 mm (Signal line) |
| 2.1 mm ±0.1 mm (power line) | |
| Wire colors | brown, blue, green/yellow, white, green, yellow, gray, gray/pink, red/blue, white/green, brown/green |
| Overall twist | Wires twisted in layers |
| External sheath, color | black RAL 9005 |
| Inner sheath thickness | ≥ 0.15 mm |
| Outer sheath thickness | ≥ 0.38 mm |
| External cable diameter D | 8.7 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 7.5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Number of bending cycles | 1500000 |
| Bending radius | 87 mm |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
| Cable weight | 122 kg/km |
| Outer sheath, material | PUR |
| Material, inner sheath | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 2000 V |
| Special properties | Silicone-free |
| Flame resistance | DIN EN 50265 |
| Resistance to oil | according to VDE 0472 Part 803 |
| Other resistance | Highly resistant to acids, alkaline solutions and solvents |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
| Feature Name | Feature Value |
|---|---|
| Length of the preassembled cable (EF007300) | 20 m |
| Cable length configurable (EF007301) | No |
| Number of sensor-/actuator-slots (EF006939) | 4 |
| Number of channels per connector slot (EF006885) | 2 |
| Number of poles sensor/actuator slots (EF007402) | 0 |
| Rated voltage (EF000228) | 120 V |
| Operating voltage (EF003983) | 120 V |
| Max. current carrying capacity per socket (EF004038) | 2 A |
| Max. total current (EF004039) | 10 A |
| Material of contact surface (EF004020) | Other |
| Material insulation body (EF007543) | Other |
| With LED indication (EF005950) | No |
| With potential separation (EF003272) | No |
| Connection for NPN-sensors (EF006817) | No |
| Fix cable version suitable for cable guide chain (EF007461) | No |
| Housing colour (EF000136) | Other |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP) (EF005474) | IP65 |
| Explosion safety category for gas (EF003997) | Other |
| Explosion safety category for dust (EF003998) | Other |
| Width (EF000008) | 54 mm |
| Height (EF000040) | 25 mm |
| Depth (EF000049) | 34 mm |
