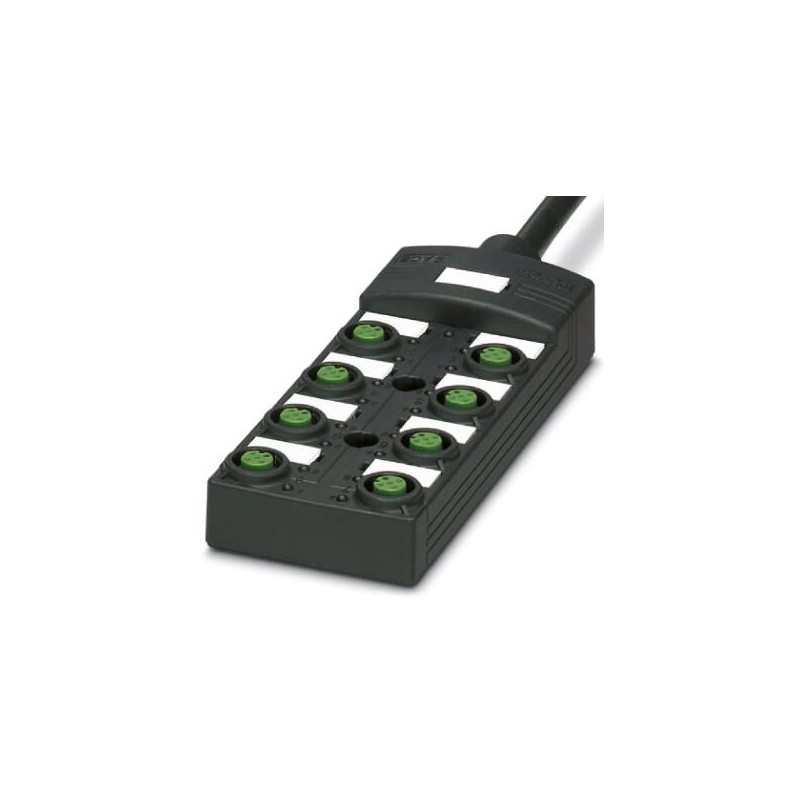

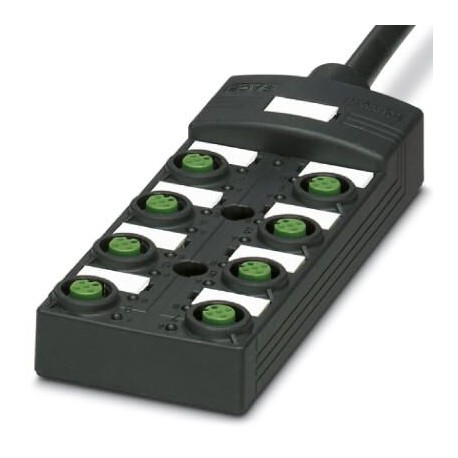

SACB-8/16-L-15,0PUR SCO P 1097635 PHOENIX CONTACT Sensor/actuator box, application: Standard, connection met..
SACB-8/16-L-15,0PUR SCO P
1097635
PHOENIX_CONTACT
Sensor/actuator box, application: Standard, connection method: M12-SPEEDCON-socket Plastic, number of slots: 8, number of positions: 5, coding: A - standard, slot assignment: Double, status display: yes, pnp; master cable connection: Fixed connection 180°, PUR/PVC, cable length: 15 m, shielding: no
Sensor/actuator box, application: Standard, connection type: SPEEDCON M12 female connector Plastic, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupancy of plug-in stations: Double, status indication: Yes, pnp; Main cable connection: Fixed connection 180°, PUR/PVC, cable length: 15 m, shielding: no
Sensors > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1097635 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 25 pc |
| GTIN | 4055626939582 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 24 V DC |
|---|---|
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 12 A |
| Number of positions | 5 |
| Number of slots | 8 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M12-SPEEDCON-socket |
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C |
| -40 °C ... 90 °C (for fixed installation) | |
| -5 °C ... 80 °C (for flexible installation) |
Local diagnostics function
| Local diagnostics | Supply voltage Green LED |
|---|---|
| Status display I/O Yellow LED |
Master cable connection data
| Connection method | Fixed connection |
|---|---|
| Length of cable | 15 m |
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
| Tightening torque of mounting screw for fixing the housing | 0.5 Nm |
Insulation material
| Housing material | PBT |
|---|---|
| Material of the moulding mass | PUR |
| Contact material | Cu alloy |
| Contact surface material | gold-plated |
| Contact carrier material | PA |
| Material of threaded sleeve | PBT |
| O-ring material | NBR |
Pin assignment
| Slot/position = Wire color or connection | 1 / 4 (A) = WH |
|---|---|
| 1 / 2 (B) = GY/PK | |
| 2 / 4 (A) = GN | |
| 2 / 2 (B) = RD/BU | |
| 3 / 4 (A) = YE | |
| 3 / 2 (B) = WH/GN | |
| 4 / 4 (A) = GY | |
| 4 / 2 (B) = BN/GN | |
| 5 / 4 (A) = PK | |
| 5 / 2 (B) = WH/YE | |
| 6 / 4 (A) = RD | |
| 6 / 2 (B) = YE/BN | |
| 7 / 4 (A) = BK | |
| 7 / 2 (B) = WH/GY | |
| 8 / 4 (A) = VT | |
| 8 / 2 (B) = GY/BN | |
| 1-8 / 1 (+ 24 V) = BN | |
| 1-8 / 3 (0 V) = BU | |
| 1-8 / 5 (PE) = GN/YE |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Cable
| Cable type | PUR/PVC black |
|---|---|
| Cable type (abbreviation) | PUR |
| Cable abbreviation | LiYY11Y-HF |
| UL AWM style | 20549 (80°C/300 V) |
| Conductor cross section | 16x 0.5 mm² (Signal line) |
| 3x 1 mm² (power line) | |
| AWG signal line | 20 |
| AWG power supply | 17 |
| Conductor structure signal line | 28x 0.15 mm |
| Conductor structure, voltage supply | 56x 0.15 mm |
| Core diameter including insulation | 1.5 mm ±0.1 mm (Signal line) |
| 2.1 mm ±0.1 mm (power line) | |
| Wire colors | brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown |
| Overall twist | Wires twisted in layers |
| External sheath, color | black RAL 9005 |
| Inner sheath thickness | ≥ 0.15 mm |
| Outer sheath thickness | ≥ 0.76 mm |
| External cable diameter D | 10.5 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 7.5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Number of bending cycles | 1500000 |
| Minimum bending radius, drag chain applications | 10 x D |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
| Cable weight | 183.7 kg/km |
| Outer sheath, material | PUR |
| Material, inner sheath | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 2000 V |
| Special properties | Silicone-free |
| Flame resistance | according to DIN EN 50265 |
| Resistance to oil | according to VDE 0472 Part 803 |
| Other resistance | Highly resistant to acids, alkaline solutions and solvents |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Length of the preassembled cable (EF007300) | 15 m |
| Cable length configurable (EF007301) | No |
| Number of sensor-/actuator-slots (EF006939) | 8 |
| Number of channels per connector slot (EF006885) | 2 |
| Type of branches for sensor-/actuator cables (EF006972) | M12 |
| Number of poles sensor/actuator slots (EF007402) | 5 |
| Rated voltage (EF000228) | 24 V |
| Operating voltage (EF003983) | 24 V |
| Max. current carrying capacity per socket (EF004038) | 2 A |
| Max. total current (EF004039) | 12 A |
| Material of contact surface (EF004020) | Gold |
| Material insulation body (EF007543) | Polyamide (PA) |
| With LED indication (EF005950) | Yes |
| With potential separation (EF003272) | No |
| Connection for NPN-sensors (EF006817) | No |
| Fix cable version suitable for cable guide chain (EF007461) | No |
| Housing colour (EF000136) | Other |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP) (EF005474) | IP65 |
| Explosion safety category for gas (EF003997) | Other |
| Explosion safety category for dust (EF003998) | Other |
| Width (EF000008) | 54 mm |
| Height (EF000040) | 23 mm |
| Depth (EF000049) | 149 mm |
