SAC4P1,025-PURM8SIFS 0,34FCB+W
1085293
PHOENIX_CONTACT
100

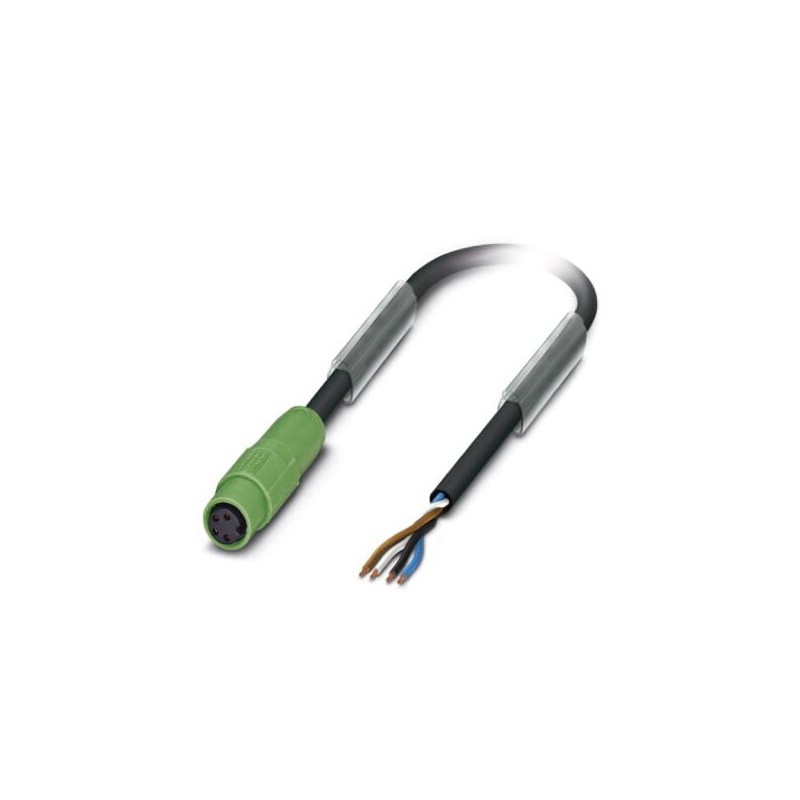

Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M8, cable length: 1.025 m, Customer version
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Rated current at 40°C | 4 A |
---|---|
Rated voltage | 48 V AC |
60 V DC | |
Number of positions | 4 |
Insulation resistance | ≥ 100 MΩ |
Status display | No |
Overvoltage category | II |
Degree of pollution | 3 |
Flammability rating according to UL 94 | HB |
---|---|
Contact material | CuSn |
Contact surface material | Ni/Au |
Contact carrier material | TPU GF |
Material of grip body | TPU, hardly inflammable, self-extinguishing |
Sealing material | NBR |
Cable type | PUR halogen-free black |
---|---|
Cable type (abbreviation) | PUR |
Cable abbreviation | Li9Y11Y-HF |
UL AWM style | 20549 / 10493 (80°C/300 V) |
Conductor cross section | 4x 0.34 mm² |
AWG signal line | 22 |
Conductor structure signal line | 42x 0.10 mm |
Core diameter including insulation | 1.27 mm ±0.02 mm |
Thickness, insulation | ≥ 0.21 mm |
Wire colors | brown, white, blue, black |
Overall twist | 4 wires, twisted |
External sheath, color | black-gray RAL 7021 |
Outer sheath thickness | approx. 0.8 mm |
External cable diameter D | 4.7 mm ±0.15 mm |
Smallest bending radius, fixed installation | 23.5 mm |
Smallest bending radius, movable installation | 47 mm |
Minimum bending radius, fixed installation | 5 x D |
Minimum bending radius, flexible installation | 10 x D |
Number of bending cycles | 4000000 |
Bending radius | 47 mm |
Minimum bending radius, drag chain applications | 10 x D |
Traversing path | 10 m |
Traversing rate | 3 m/s |
Acceleration | 10 m/s² |
Cable weight | 30 kg/km |
Outer sheath, material | PUR |
Material conductor insulation | PP |
Conductor material | Bare Cu litz wires |
Insulation resistance | ≥ 1 GΩ*km |
Conductor resistance | ≤ 58 Ω/km |
Nominal voltage, cable | ≤ 300 V |
Test voltage, cable | ≥ 3000 V |
Special properties | Flexible cable conduit capable |
Silicone-free | |
Free of substances which would hinder coating with paint or varnish | |
flexible | |
Flame resistance | according to UL 758/1581 (horizontal) |
in accordance with UL 758/1581 FT2 | |
Halogen-free | in accordance with DIN VDE 0472 part 815 |
in accordance with DIN EN 50267-2-1 | |
Resistance to oil | in accordance with DIN EN 60811-2-1 |
Other resistance | Highly resistant to acids, alkaline solutions and solvents |
hydrolysis and microbe resistant | |
partly UV-resistant in accordance with DIN EN ISO 4892-2-A | |
Low adhesion | |
abrasion-resistant | |
Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
-25 °C ... 80 °C (cable, flexible installation) |
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
---|---|
No hazardous substances above threshold values |
