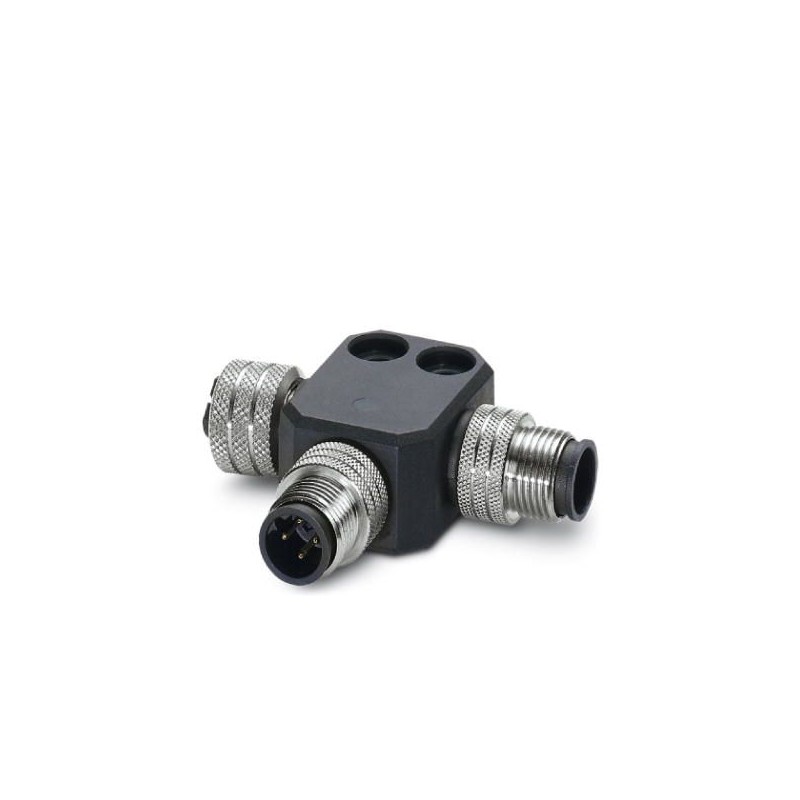

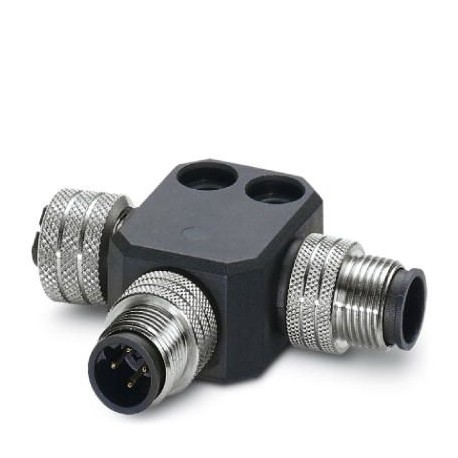

SAC-M12T/2XM12 PB 1440672 PHOENIX CONTACT T distributor
SAC-M12T/2XM12 PB
1440672
PHOENIX_CONTACT
T distributor
Sensors > Sensor actuator adapter
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1440672 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356503242 |
| Weight per Piece (excluding packing) | 38.900 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 80 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 1 A (Contact 2 and 4) |
|---|---|
| 4 A (Contact 1 and 3) | |
| Rated voltage | 30 V AC |
| 36 V DC | |
| Number of positions | 4 |
| Color handle area | black |
| Insulation resistance | ≥ 1 GΩ |
| Coding | B-coded |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Signal type/category | PROFIBUS DP, 12 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Test voltage | 1 kV |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PUR |
| Material of grip body | PUR |
| Material, knurls | Nickel-plated brass |
| Sealing material | Viton |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027440102eCl@ss 9.027440106
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
