SAC-M12MS/15,0-94B/M12MS
1404873
PHOENIX_CONTACT
25

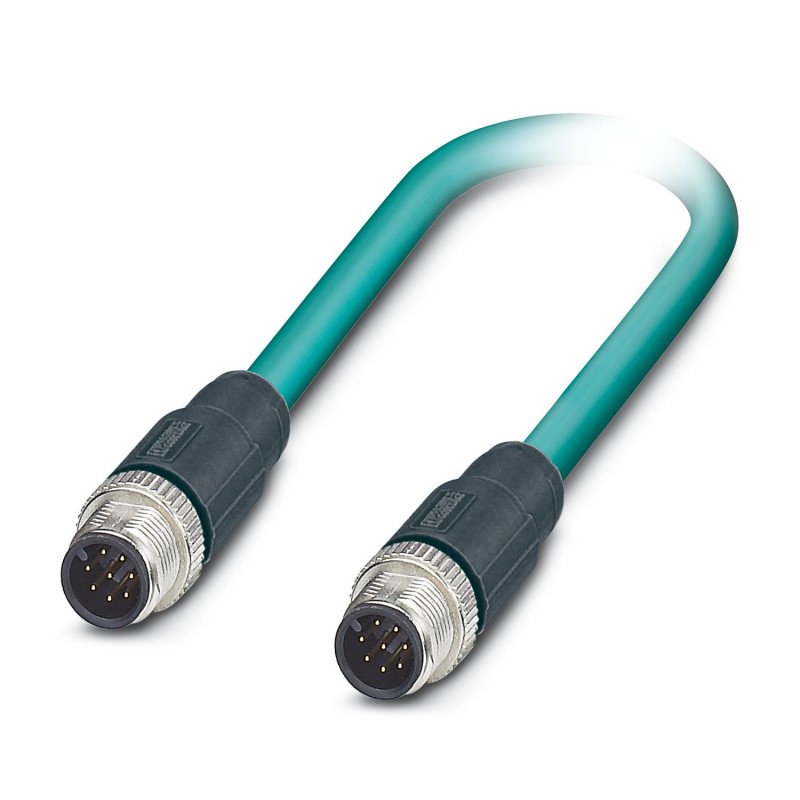

Assembled Ethernet cable, shielded, 4-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), M12 plug to M12 plug, line, length: 15 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1404873 |
---|---|
Packing unit | 1 pc |
Minimum order quantity | 25 pc |
GTIN | 4046356726818 |
Weight per Piece (excluding packing) | 740.000 g |
Custom tariff number | 85444290 |
Country of origin | PL (Poland) |
Cable type | Ethernet, flexible, CAT5 |
---|---|
Cable type (abbreviation) | 94B |
Cable abbreviation | 02YS(ST)C11Y |
UL AWM style | 20963 (80°C/30 V) |
Cable structure | 4x2xAWG26/7; SF/UTP |
Conductor cross section | 4x 2x 0.14 mm² |
AWG signal line | 26 |
Conductor structure signal line | 7x 0.16 mm |
Core diameter including insulation | 0.96 mm |
Wire colors | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
Twisted pairs | 2 cores to the pair |
Overall twist | 4 pairs for core |
Shielding | Aluminum-coated foil, tinned copper braided shield |
Optical shield covering | 70 % |
External sheath, color | water blue RAL 5021 |
Outer sheath thickness | 1.05 mm |
External cable diameter D | 6.4 mm ±0.2 mm |
Minimum bending radius, fixed installation | 4 x D |
Minimum bending radius, flexible installation | 8 x D |
Cable weight | 47 kg/km |
Tensile strength GRP | ≤ 100 N |
Outer sheath, material | PUR |
Material conductor insulation | Foamed PE |
Conductor material | Bare Cu litz wires |
Insulation resistance | ≥ 500 MΩ*km |
Loop resistance | ≤ 290.00 Ω/km |
Cable capacity | 48 nF/km (at 1 kHz) |
Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
Near end crosstalk attenuation (NEXT) | 71.3 dB (with 1 MHz) |
62.3 dB (at 4 МHz) | |
56.3 dB (at 10 MHz) | |
53.2 dB (at 16 MHz) | |
51.8 dB (at 20 МHz) | |
48.9 dB (at 31.25 МHz) | |
44.4 dB (at 62.5 МHz) | |
41.3 dB (at 100 MHz) | |
Attenuation | 3.2 dB (with 1 MHz) |
6 dB (at 4 МHz) | |
9.5 dB (at 10 MHz) | |
12.1 dB (at 16 MHz) | |
13.6 dB (at 20 МHz) | |
17.1 dB (at 31.25 МHz) | |
24.8 dB (at 62.5 МHz) | |
32 dB (at 100 MHz) | |
Return Loss | 23 dB (at 4 МHz) |
24.1 dB (at 8 МHz) | |
25 dB (at 10 MHz) | |
25 dB (at 16 MHz) | |
25 dB (at 20 МHz) | |
23.6 dB (at 31.25 МHz) | |
21.5 dB (at 62.5 МHz) | |
20.1 dB (at 100 MHz) | |
Signal runtime | 5.3 ns/m |
Coupling resistance | ≤ 100.00 mΩ/m (at 10 MHz) |
Nominal voltage, cable | ≤ 100 V |
Test voltage Core/Core | 700 V (50 Hz, 1 min.) |
Test voltage Core/Shield | 700 V (50 Hz, 1 min.) |
Flame resistance | according to IEC 60332-1-2 |
Halogen-free | according to IEC 60754-1 |
Resistance to oil | according to EN 60811-2-1 |
Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
-20 °C ... 80 °C (cable, flexible installation) |
REACh SVHC | |
---|---|
Lead 7439-92-1 | |
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
eCl@ss 4.0 | 27060300 |
---|---|
eCl@ss 4.1 | 27060300 |
eCl@ss 5.0 | 27061800 |
eCl@ss 5.1 | 27061800 |
eCl@ss 6.0 | 27279200 |
eCl@ss 7.0 | 27279218 |
eCl@ss 8.0 | 27279218 |
eCl@ss 9.0 | 27060311 |
UNSPSC 6.01 | 31251501 |
---|---|
UNSPSC 7.0901 | 31251501 |
UNSPSC 11 | 31251501 |
UNSPSC 12.01 | 31251501 |
UNSPSC 13.2 | 31251501 |
UNSPSC 19.0 | 31251501 |
UNSPSC 20.0 | 31251501 |
UNSPSC 21.0 | 31251501 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
