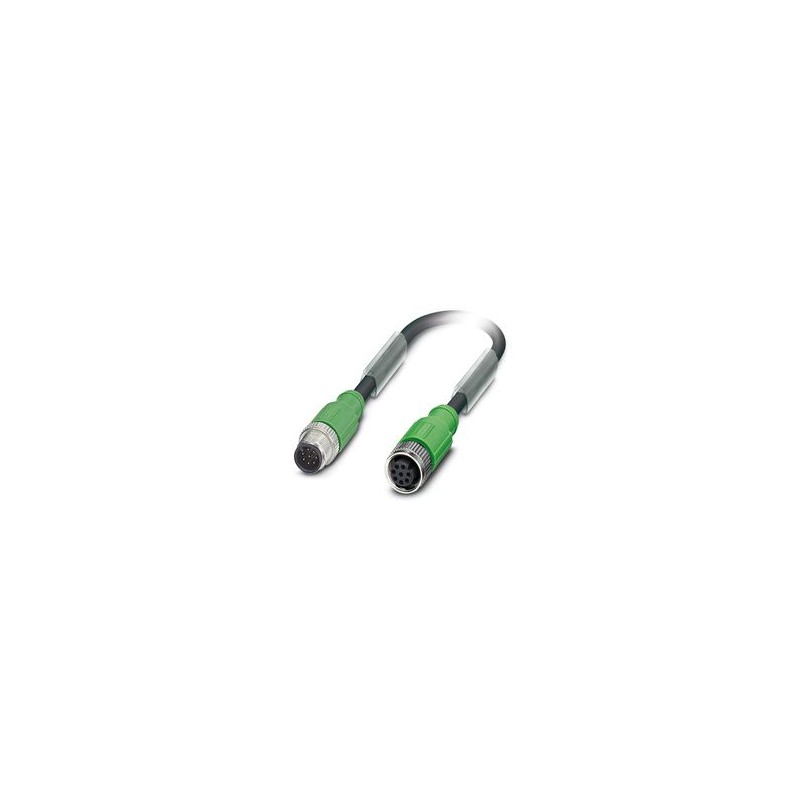

SAC-8P-M12MS/ 8,0-285/M12FS SH 1545620 PHOENIX CONTACT Sensor/actuator cable, 8-pole, shielded, M12 straight..
SAC-8P-M12MS/ 8,0-285/M12FS SH
1545620
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Sensor/actuator cable, 8-pole, shielded, M12 straight connector, encoding: A, to M12 straight female, coding: A, cable length: 8 m
Sensor/actuator cable, 8-pole, PUR, highly flexible, grey RAL 7001, shielded, M12 straight male connector, coding: A, A M12 straight connection female, coding: A, cable length: 8 m
Sensor/actuator cable, 8-position, shielded, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 8 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Sensor/actuator cable |
| Number of positions | 8 |
| No. of cable outlets | 1 |
| Coding | A |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V AC |
| 30 V DC | |
| Nominal current IN | 2 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Status display | No |
| Status display present | No |
| Connection 1 | |
| Type | Plug straight M12 |
| Number of positions | 8 |
| Coding type | A |
| Connection 2 | |
| Type | Socket straight M12 |
| Number of positions | 8 |
| Coding type | A |
| Cable length | 8 m |
| PUR, gray, shielded [285] | |
| Dimensional drawing |  |
| Shielded | yes |
| Cable type | PUR, gray, shielded |
| Short symbol | Li12YC11Y-HF |
| Cable type (abbreviation) | 285 |
| External cable diameter | 7.6 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | gray RAL 7001 |
| Conductor material | Bare Cu litz wires |
| Conductor structure signal line | 32x 0.10 mm |
| AWG signal line | 24 |
| Conductor cross section | 4x 2x 0.25 mm² (Signal line) |
| Material wire insulation | PES |
| Single wire, color | white-brown, green-yellow, gray-pink, blue-red |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 4 pairs for core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 85 % |
| Nominal voltage, cable | 350 V |
| Test voltage, cable | 1200 V |
| Cable insulation resistance | ≥ 100 MΩ*km |
| Minimum bending radius, flexible installation | 7.5 x D |
| Number of bending cycles | 3000000 |
| Bending radius | 100 mm |
| Traversing path | 1.2 m |
| Traversing rate | 1.4 m/s |
| Acceleration | 2 m/s² |
| Resistance to oil | very good oil and chemical resistance |
| Other resistance | Ozone and UV resistant |
| Low adhesion | |
| abrasion-resistant | |
| notch tough | |
| Ambient temperature (operation) | -40 °C ... 80 °C (Cable, flexible installation) |
| -50 °C ... 80 °C (cable, fixed installation) | |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
