SAC-6P-25,0-970/M12FS 1069454 PHOENIX CONTACT Bus system cable SAC-6P-25,0-970/M12FS 1069454
SAC-6P-25,0-970/M12FS
1069454
PHOENIX_CONTACT
25
Bus system cable - SAC-6P-25,0-970/M12FS - 1069454
Data and telecommunication > Patch cord copper (twisted pair)
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info

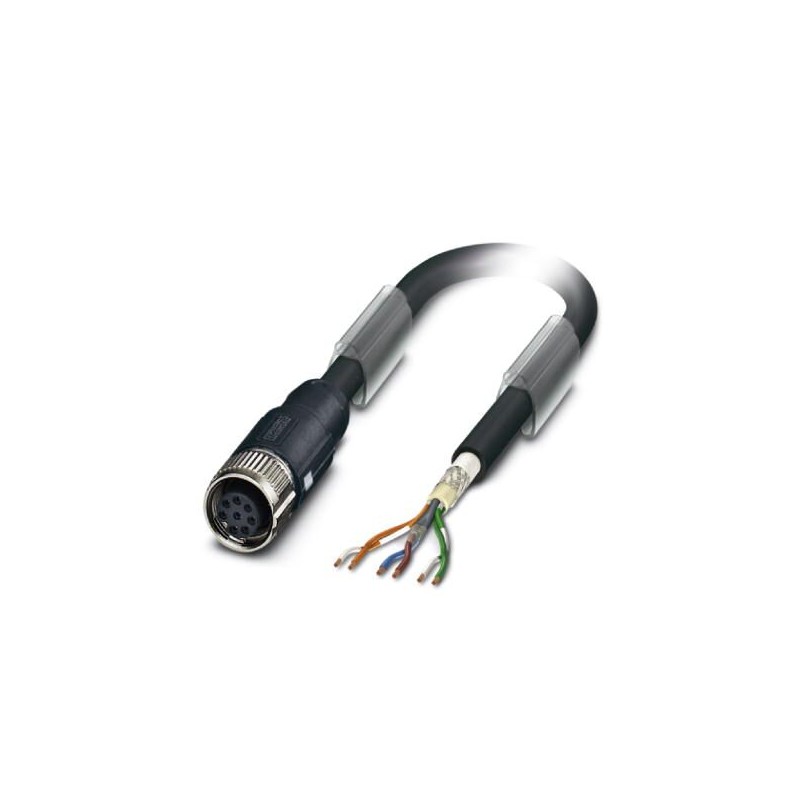

▲Bus system cable, VARAN (100 Mbps), 6-position, SANTOPRENE halogen-free/TPE halogen-free, black RAL 9005, shielded, free cable end, on Socket straight M12, A-coded, cable length: 25 m
Key Commercial Data
| Orderkey | 1069454 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626745992 |
| Custom tariff number | 85444290 |
Dimensions
| Length of cable | 25 m |
|---|---|
| Stripping length of the free conductor end | 50 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 6 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Signal type/category | VARAN, 100 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Standards and Regulations
| Flammability rating according to UL 94 | HB |
|---|
Cable
| Cable type | VARAN |
|---|---|
| Cable type (abbreviation) | 970 |
| Cable abbreviation | Li9YD12Y |
| Cable structure | 1x2xAWG22/19 + 1x4xAWG24/19 |
| Conductor cross section | 4x 0.25 mm² (Signal line) |
| 2x 0.38 mm² (Power supply) | |
| AWG signal line | 24 |
| AWG power supply | 22 |
| Conductor structure signal line | 19x 0.13 mm |
| Conductor structure, voltage supply | 19x 0.16 mm |
| Core diameter including insulation | 1.35 mm (Signal line) |
| 1.5 mm (Power supply) | |
| Wire colors | Brown, blue, white/orange, white/green, green, orange |
| Type of pair shielding | Tinned copper braided shield, 95 % covering |
| Overall twist | 1 star quad and 2 wires with 2 fillers |
| Shielding | Tinned copper-braided shield, approx. 85% covering |
| External sheath, color | black RAL 9005 |
| External cable diameter D | 7.8 mm ±0.2 mm |
| Smallest bending radius, fixed installation | ≥ 93 mm |
| Smallest bending radius, movable installation | ≥ 93 mm |
| Number of bending cycles | 3000000 |
| Bending radius | 93 mm |
| Traversing path | 2 m |
| Traversing rate | 1 m/s |
| Acceleration | 2 m/s² |
| Cable weight | 81 kg/km |
| Outer sheath, material | SANTOPRENE halogen-free |
| Material, inner sheath | TPE |
| Material, filler | Yarn |
| Material conductor insulation | PP |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | 5 GΩ*km (Data cable) |
| Conductor resistance | 77 Ω/m (Data cable) |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Working capacitance | 50 nF (Data cable) |
| Wave impedance | 100 Ω ±15 % |
| Nominal voltage, cable | 125 V (Data cable) |
| 48 V (Power supply) | |
| Test voltage, cable | 2000 V (Power supply) |
| max. 700 V AC (Data cable) | |
| Halogen-free | in accordance with DIN EN 50267-2-1 |
| Ambient temperature (operation) | -20 °C ... 80 °C (Cable) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 7.0 | 27060308 |
|---|---|
| eCl@ss 8.0 | 27279218 |
| eCl@ss 9.0 | 27060308 |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 7.0 | EC001262 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
