SAC-5P-P12MS/ 1,5-PUR/P12FR SH 1224252 PHOENIX CONTACT Sensor/actuator cable, 5-pole, halogen-free PUR, grey..
SAC-5P-P12MS/ 1,5-PUR/P12FR SH
1224252
PHOENIX_CONTACT

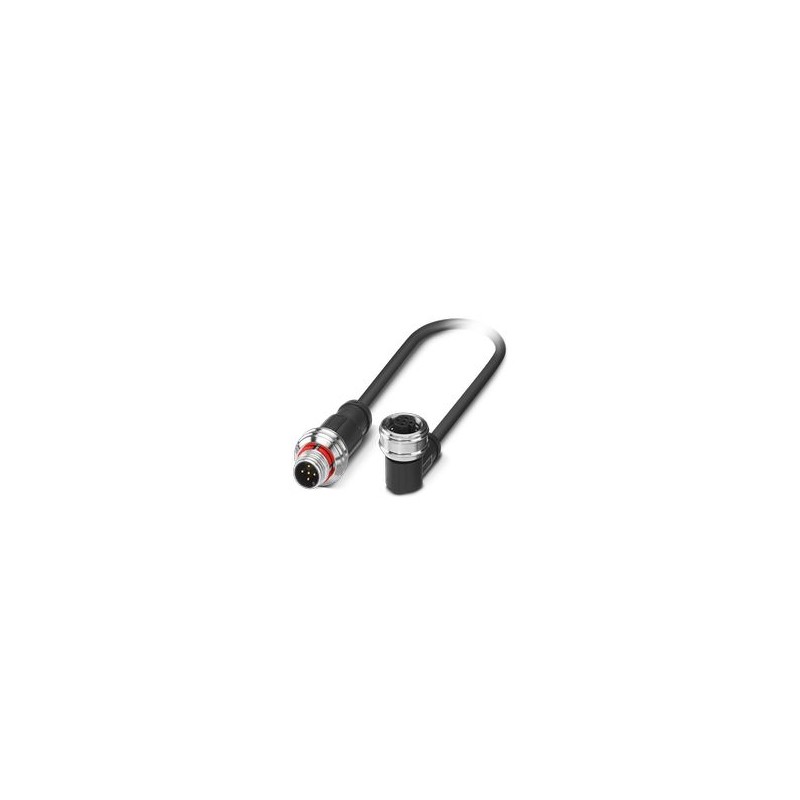

Sensor/actuator cable, 5-pole, halogen-free PUR, greyish black RAL 7021, shielded, M12 Push-pull straight connector, coding: A, a Female angled M12 Push-pull, coding: A, cable length: 1.5 m
Sensor/Actuator Cable, Halogen-Free 5-Pole, Shielded, M12 Straight Connector, Coding: A Push-pull, A M12 Angled Female, Coding: A Push-pull, Cable Length: 1.5 m
Sensor-actuator cable, 5-pin halogen-free, shielded, straight M12 Push-Pull plug, coding: A, on angled M12 Push-Pull socket, coding: A, cable length: 1.5 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Link | Push-Pull |
| Product Type | Sensor/Actuator Cable |
| No. of poles | 5 |
| Application | Standard |
| Number of cable outlets | 1 |
| Shielded | Yes |
| Coding | at |
| Insulation characteristics | |
| Overvoltage Category | II |
| Degree of pollution | 3 |
| Combustibility class according to UL 94 | V0 |
| Mass Resistivity | ≤ 5 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Rated voltage UN | 48 V AC |
| 60 V DC | |
| Rated Current IN | 4 A |
| Protection Circuit | without circuit |
| Mechanical data | |
| Manoeuvring cycles | ≥ 100 |
| Status Reporting | no |
| Available Status Indication | no |
| Connection technology | |
| Link | Push-Pull |
| Conductor connection | |
| Link | Push-Pull |
| Connection 1 | |
| type | M12 Straight Push-Pull Male |
| No. of poles | 5 |
| Clamping Type | Push-Pull |
| Encoding Type | at |
| Connection 2 | |
| type | M12 Push-Pull Angled Receptacle |
| No. of poles | 5 |
| Clamping Type | Push-Pull |
| Encoding Type | at |
| Cable Length | 1.5 m |
| Halogenated free PUR black [PUR] | |
| Dimensioned Drawing |  |
| Line Weight | 43 kg/km |
| UL AWM Style | 20549 / 10493 (80 °C / 300 V) |
| No. of poles | 5 |
| Shielded | Yes |
| Cable Type | Halogenated free PUR black [PUR] |
| Line Signal Conductor Structure | 42x 0.10 mm |
| AWG Signal Line | 22 |
| Conductor cross-section | 5x 0.34 mm² (Signal Line) |
| Wire diameter with insulating sheath | 1.27 mm ±0.02 mm (Signal line) |
| Conductor Outer Diameter | 5.25 mm ±0.2 mm |
| Outer Sheath, Material | WHILE |
| Outer sheath, color | grey-black RAL 7021 |
| Conductor material | Bare Cu Wire |
| Material, Wire Insulation | PP |
| Single conductor, color | brown, white, blue, black, grey |
| Insulation wall thickness | ≥ 0.21 mm |
| Outer sheath wall thickness | ca. 0.5 mm |
| Full stranding | 5 conductors around fillers to the core |
| Optical Shielded Cover | 80 % |
| Conductor resistance max. | max. 57 Ω/km (at 20 °C) |
| Insulation Resistance | 70 GΩ*km (at 20 °C) |
| Nominal cable voltage | 300 V (at 20 °C) |
| Wire-to-wire test voltage | 3000 V (at 20 °C) |
| Minimum bending radius, fixed | 26 mm |
| Minimum bending radius, movable | 52 mm (up to +60 °C) |
| Bending cycles, maximum | 10000000 |
| Halogen-free | according to DIN VDE 0472 Part 815 |
| in accordance with DIN EN 50267-2-1 | |
| Flame Resistance | according to UL 758/1581 FT2 |
| DIN EN 60332-2-2 (20 s) | |
| Oil Resistance | according to DIN EN 60811-2-1 |
| Other Resistance | Very good resistance against acids, lyes and solvents |
| Resistance to hydrolysis and microbes | |
| Seawater resistant | |
| UV-resistant according to DIN EN ISO 4892-2-A | |
| abrasion resistant | |
| Special features | for energy chains |
| silicone-free | |
| No impregnated varnish substances | |
| Non-adherent surface | |
| Ambient temperature (operating) | -40 °C ... 80 °C (cables, fixed installation) |
| -25 °C ... 80 °C (Cables, movable installation) | |
| Environmental conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operating) | -25 °C ... 85 °C (connector / female connector) |
| -40 °C ... 80 °C (cables, fixed installation) | |
| -25 °C ... 80 °C (Cables, movable installation) | |
| Standard Definition | M12-Push-Pull |
| Standards/Regulations | IEC 61076-2-010 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Angled |
| Cable length (EF000536) | 1.5 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
