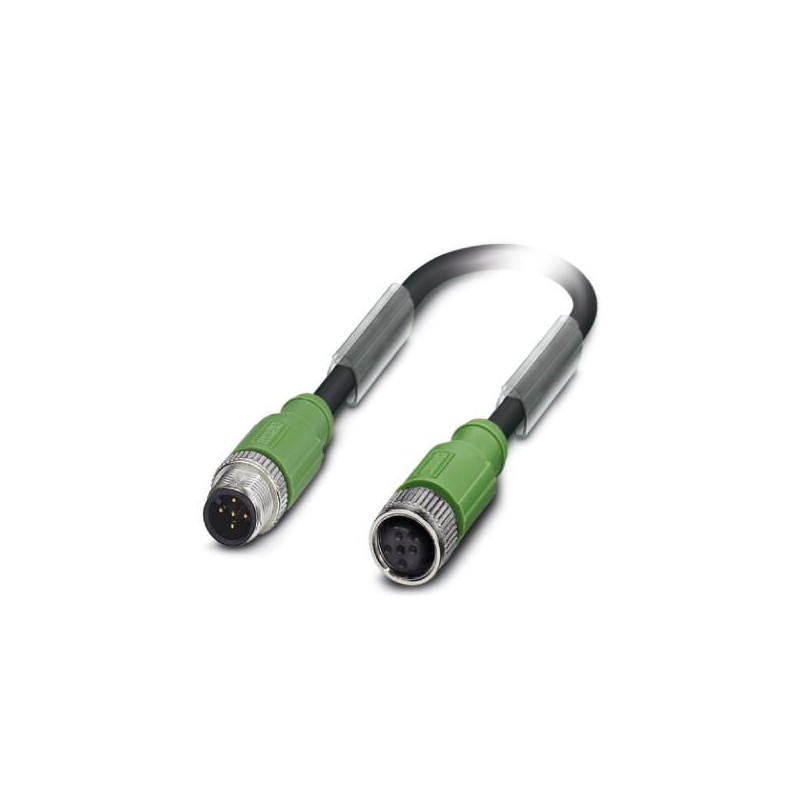

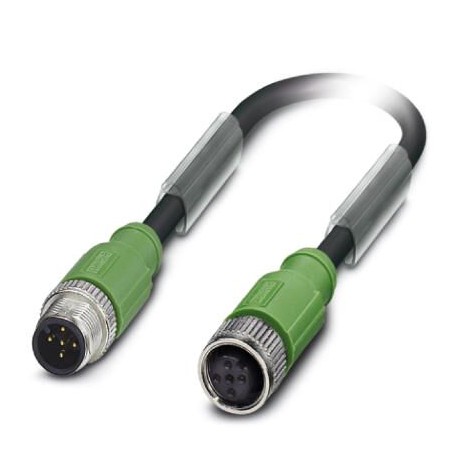

SAC-5P-M12MS/7,5-PUR/M12FSSH BK 1445059 PHOENIX CONTACT Cable for sensors/actuators, 5-pole, PUR halogen-fre..
SAC-5P-M12MS/7,5-PUR/M12FSSH BK
1445059
PHOENIX_CONTACT
50
Cable for sensors/actuators, 5-pole, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12, Female straight connection, M12 plug, length of cable: 7.5 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Cable, sensor-actuator, 5-pin, PUR without halogenated, black-grey RAL 7021, shielded, straight Male M12 to Female angled M12, cable length: 7.5 m
Commercial data
| The code for the order | One million four hundred forty five thousand fifty nine |
|---|---|
| Pieces/pack. | 1 PCS |
| Sales key | BF1CKA - |
| GTIN | Four trillion forty six billion three hundred fifty six million five hundred seventy six thousand six hundred seventy three |
| Weight per piece (package included) | 380,000 g |
| Number customs tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Size
| Length. cable | 7.5 m |
|---|
Environmental conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (plug / connector female) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40 ℃ | 4 To |
|---|---|
| Rating voltage | 48 V AC |
| 60 V DC | |
| N. of poles | Five |
| Insulation resistance | ≥ 100 MΩ |
| Signalling status of | No |
| Overvoltage category | II |
| Pollution degree | Three |
| Number of operating cycles, | ≥ 100 |
Material
| Class behaviour according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Material surface contacts | Ni/Au |
| Insert material latch | TPU GF |
| Material handles | TPU, hardly inflammable, self-extinguishing |
| Nut material | Zinc die-cast, nickel-plated |
| Material gasket | NBR |
Regulations and requirements
| Class behaviour according to UL 94 | HB |
|---|
Cable
| Cable type | EVEN without halogenated black |
|---|---|
| Cable type (abbreviation) | WHILE |
| Abbreviation cables | LiF9YC11Y |
| UL AWM Style | Twenty thousand five hundred forty nine |
| Conductor cross section | 5x 0.34 mm2 (signal Line) |
| Signal line AWG | Twenty two |
| Tree conductor signal line | 42x 0.10 mm |
| Wire diameter including insulation | 1.27 mm ±0.02 mm (signal Line) |
| Color wire | brown, white, blue, black, grey |
| Lay the entire | 5 wires around filler to the soul |
| Shielding | Wire braid tinned copper |
| Cover screen optical | 80 % |
| External sheath, color | grey-black RAL 7021 |
| Cable outer diameter D | 5.25 mm ±0.2 mm |
| Minimum bend radius, fixed | 26 mm |
| Minimum bend radius, mobile | 52 mm (up to +60 ℃) |
| The number of cycles of bending | Ten million |
| Bend radius | 52 mm |
| Positioning movement | 10 m |
| Positioning speed | 3 m/s |
| Acceleration | 10 m/s2 |
| Outer sheath, material | WHILE |
| Material insulation wire | PP |
| The conductive material | Cu wire bare |
| Insulation resistance | 70 GΩ*km (at 20 °C) |
| resistance of the conductor | max. 57 Ω/km (at 20 °C) |
| Rated voltage of cable | 300 V (20 °C) |
| Test voltage wire/wire | 3000 V (at 20 °C) |
| Special features | drag chain |
| Flame resistance | according to the UL 758/1581 FT2 |
| DIN EN 60332-2-2 (20 s) | |
| The absence of halogens | according to DIN VDE 0472 Part 815 |
| Oil resistance | in accordance with DIN EN 60811-2-1 |
| The other resistance | Resistance to hydrolysis and microbes |
| UV-resistant in accordance with DIN EN ISO 4892-2-A | |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -25 °C ... 80 °C (cable, mobile installation) |
Environmental Product Compliance
| China RoHS | Period for proper use: unlimited = EFUP-and |
|---|---|
| Any hazardous substances above the threshold values |
Rankings
eCl@ss
| eCl@ss 4.0 | Twenty seven million sixty thousand three hundred six |
|---|---|
| eCl@ss 4.1 | Twenty seven million sixty thousand three hundred six |
| eCl@ss 5.0 | Twenty seven million sixty one thousand eight hundred one |
| eCl@ss 5.1 | Twenty seven million sixty one thousand eight hundred |
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 3.0 | EC001855 |
|---|---|
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 6.01 | Thirty one million two hundred fifty one thousand five hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 11 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 12.01 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
