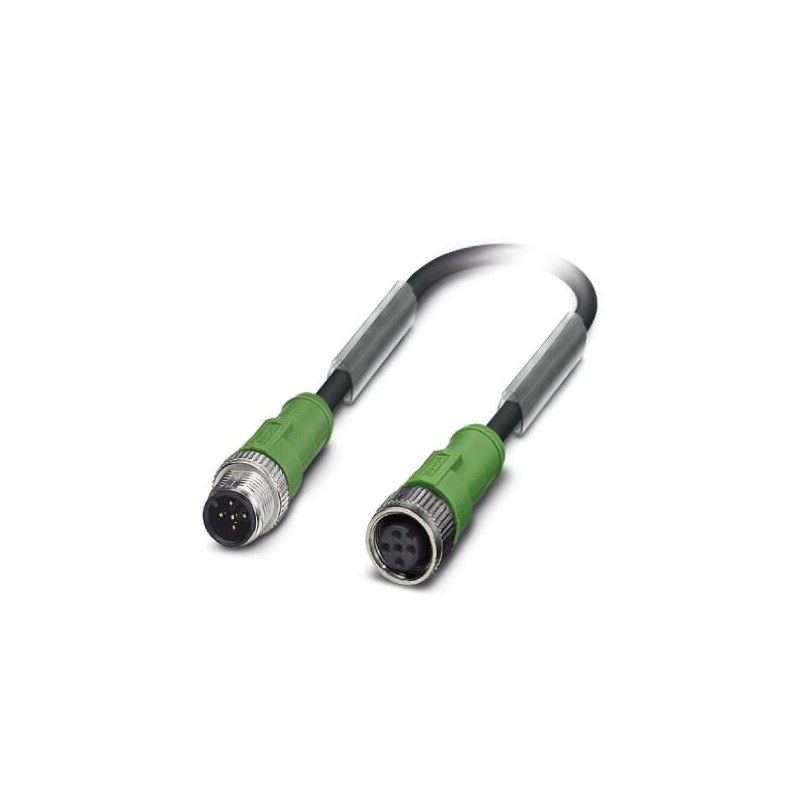

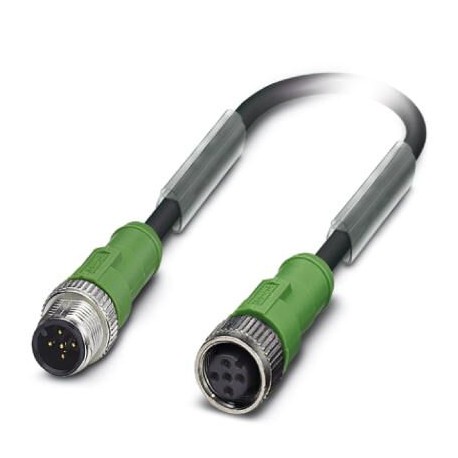

SAC-5P-M12MS/ 6,0-PUR/M12FS VA 1426376 PHOENIX CONTACT Cable for sensors/actuators
SAC-5P-M12MS/ 6,0-PUR/M12FS VA
1426376
PHOENIX_CONTACT
100
Cable for sensors/actuators
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Cable, sensor/actuator, 5-pin, PUR halogen free, black-gray RAL 7021, Plug straight M12, coding A, the length of the cord: 6 m
Business
| The code of the application | One million four hundred twenty six thousand three hundred seventy six |
|---|---|
| The amount of the package (C#) | 1 Unit |
| The minimum quantity of the order | 100 Pcs |
| Note | The production is linked to the application (no removal) |
| GTIN | Four trillion fifty five billion six hundred twenty six million four hundred fifty nine thousand seventy three |
| Weight per piece (excluding packing) | 229,000 GRM |
| The number of corporate and commercial | Eighty five million four hundred forty four thousand two hundred ninety |
| The country-of-origin | PL (Poland). |
Measures
| The length of the cable | 6 m |
|---|
The general
| Rated current at 40 °C | Four |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| The number of poles in the | Five |
| The resistance of the insulation | ≥ 100 MΩ |
| Coding | The standard |
| An indication of the state of | Don't |
| Over voltage category | II |
| The degree of impurity, | Three |
| Mating cycles | That is > 100 |
The Material
| Class of flammability according to UL 94 | Hemoglobin (HB) |
|---|---|
| The Material of the contact | CuSn |
| Material on the surface of the contact | Ni/Au |
| The Material supporting the contact | TPU GF |
| The Material of the body of the cable | TPU, hardly inflammable, self-extinguishing |
| The Material of the anti - | Stainless steel |
| The Material of the sealing | O |
The rules and the provisions of
| Class of flammability according to UL 94 | Hemoglobin (HB) |
|---|
The line
| The type of cable | PUR halogen-free black |
|---|---|
| Cable type (code) | PURE |
| The code for the cable | Li9Y11Y |
| The style of the UL AWM | 20549 / 10493 (80 °C / 300 V) |
| The value of the driver | 5x 0.34 mm2 (signal Line) |
| The line of the signal WIRE | Twenty two |
| The mounting of the conductive signal line on the | 42x 0.10 mm |
| The diameter of the conductor, including the insulation | In (1.27 mm ±0.02 mm (signal Line) |
| The density of the wall insulation | ≥ 0.21 mm |
| The color of the driver | brown, white, blue, black, brown, green/yellow |
| Stranded in total | A 5-wire into the core of soul |
| Outer shell, color | the black-gray RAL 7021 |
| The thickness of the wall of outer Jacket | ca. 0.7 mm |
| The outer diameter of the cable D | 5 mm (±0.15 mm) |
| The smaller the radius of the system, available in fixed | (25 mm) |
| The smaller the radius of the flexure is installed in a movable | 50 mm |
| Number of cycles of the bending | Four million |
| The radius of the bending | 50 mm |
| The course of the shift | A 10-m |
| The speed of the scroll | 3 m/sec. |
| The acceleration | 10 m/s2) |
| The weight of the cable | 35 kg/km |
| An external covering material, | PURE |
| An insulating Material of the conductor | PP |
| The Material of the conductor | Copper cable |
| The resistance of the insulation | ≥ 16 GΩ*km (at 20 °C) |
| The resistance of the conductor | max. 58 Ω/km (at 20 °C) |
| The nominal voltage of the line | 300 V |
| The voltage of the test of the | 3000 V |
| Special features | himself to the door-handles |
| silicon-free | |
| Free of substances which interfere with wetting of paint | |
| flexible | |
| The Anti-flammability | as per UL-Style 20549 |
| The absence of a halogen-free | acc. to DIN VDE 0472 part 815 |
| Oil-resistant | in accordance with DIN EN 60811-2-1 |
| The other resistors | good resistance to chemicals |
| resistant to hydrolysis and microbes. | |
| resistant to sea water | |
| with good UV resistance in accordance with DIN EN ISO 4892-2-A | |
| Ambient temperature (operation) | Operating temperature: -40 °C ... 80 °C (Cable, available to set) |
| -25 °C ... 80 °C (Cable, available to a mobile) |
Environmental And Product Compliance
| As China RoHS | The period for the for their intended uses: unlimited, = EFUP and |
|---|---|
| No hazardous substances above the limit values for the |
Ratings
eCl@ss
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
|---|---|
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| the eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
