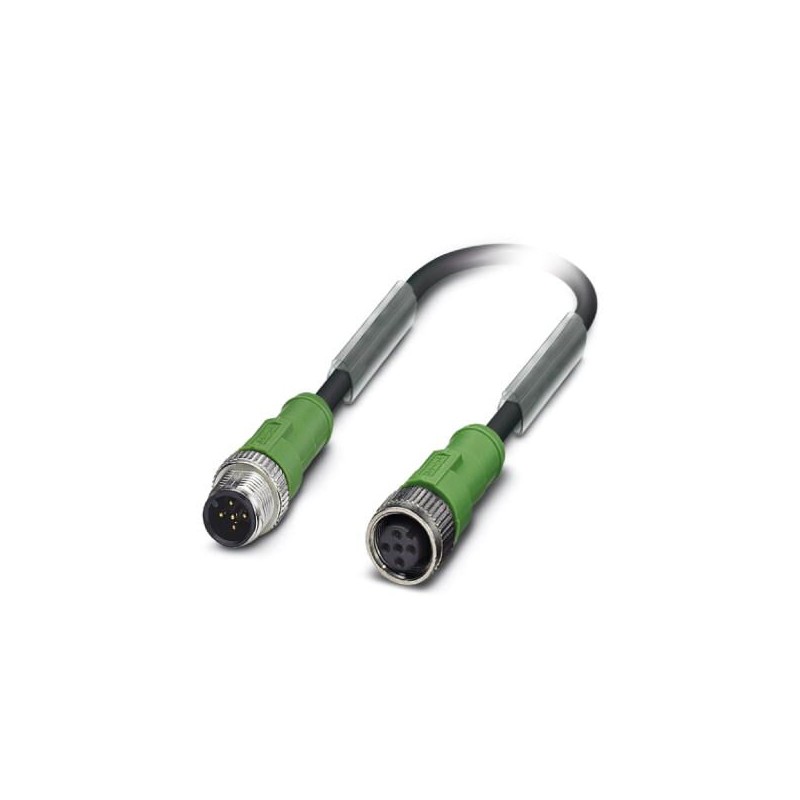

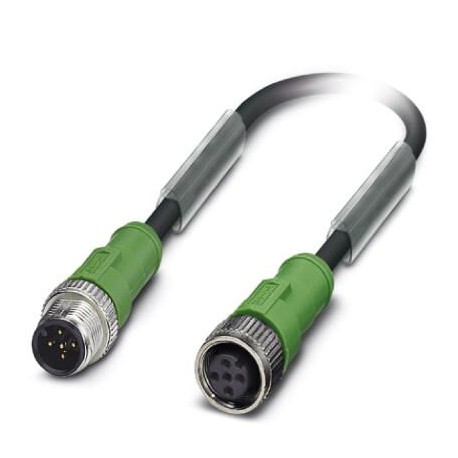

SAC-5P-M12MS/ 4,1-PUR/M12FS VA 1426372 PHOENIX CONTACT Cable for sensors/actuators
SAC-5P-M12MS/ 4,1-PUR/M12FS VA
1426372
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Cable for sensors/actuators
Sensor/actuator cable, 5-pole, halogen-free PUR, greyish black RAL 7021, Straight connector M12, coding: A, to Straight female M12, coding: A, cable length: 4.1 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Cable for sensors/actuators, 5-pole, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coded, cable length: 4,1 m
Data commercial
| Key order | One million four hundred twenty six thousand three hundred seventy two |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1CDA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million four hundred fifty nine thousand sixty six |
| Unit weight (excluding packaging) | 159,400 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Measures
| Cable length | 4,1 m |
|---|
Overview
| Current sizing at 40 °C | 4 To |
|---|---|
| Tension sizing | 48 V AC |
| 60 V DC | |
| Number of poles | Five |
| Insulation resistance | ≥ 100 MΩ |
| Encoding | A - standard |
| Status indication | Not |
| Category surge | II |
| Pollution degree | Three |
| Cycles of plug | ≥ 100 |
Material
| Class of flammability according to UL 94 | HB |
|---|---|
| Material contact | CuSn |
| Material contact surface | Ni/Au |
| Material support of contacts | TPU GF |
| Material body grip | TPU fire-retardant, self-extinguishing |
| Material knurled | Stainless steel |
| Material of the board | NBR |
Standards and specifications
| Class of flammability according to UL 94 | HB |
|---|
Cable
| Type of cable | PUR halogen-free black |
|---|---|
| Cable type (abbreviation) | PUR |
| Abbreviation of cable | Li9Y11Y |
| UL AWM Style | 20549 / 10493 (80 °C/300 V) |
| Section of driver | 5x 0,34 mm2 (driver signals) |
| Signal cable AWG | Twenty two |
| Construction of the driver signal cable | 42x 0.10 mm |
| Diameter of the conductors, insulation included | 1.27 mm ±0.02 mm (driver signals) |
| Thickness of wall Insulation | ≥ 0.21 mm |
| Colors driver | black, brown, blue, white, yellow/green |
| Cabling total | 5 drivers around padding as soul |
| Outer wrap, color | black-grey RAL 7021 |
| Wall thickness outer wrap | approx. 0.7 mm |
| Outer diameter of cable D | 5 mm ±0.15 mm |
| Smallest bending radius, fixed mounting | 25 mm |
| Smaller bending radius, mobile mounting | 50 mm |
| Number of bending cycles | Four million |
| Bending radius | 50 mm |
| Journey forward | 10 m |
| Forward speed | 3 m/s |
| Acceleration | 10 m/s2 |
| Weight of the cable | 35 kg/km |
| Outer casing, material | PUR |
| Material Insulation conductor | PP |
| Conductive Material | Conductor Cu bare |
| Insulation resistance | ≥ 16 GΩ*km (at 20 °C) |
| Resistance of the conductor | max. 58 Ω/km (at 20 °C) |
| Rated voltage Cable | 300 V |
| Test voltage Cable | 3000 V |
| Special features | suitable for drag chain |
| without silicone | |
| without any substances disturbing the wettability paintings | |
| flexible | |
| Flame resistance | according to UL-Style 20549 |
| Absence of halogen | according to DIN VDE 0472 part 815 |
| Oil resistance | according to DIN en 60811-2-1 |
| Other resistors | good resistance to acids, alkalis and solvents |
| resistant to hydrolysis and microbes | |
| resistant to sea water | |
| conditionally UV-resistant according to DIN en ISO 4892-2-A | |
| Room temperature (service) | -40 °C ... 80 °C (cable, fixed) |
| -25 °C ... 80 °C (cable, available mobile) |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
|---|---|
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 4.1 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
