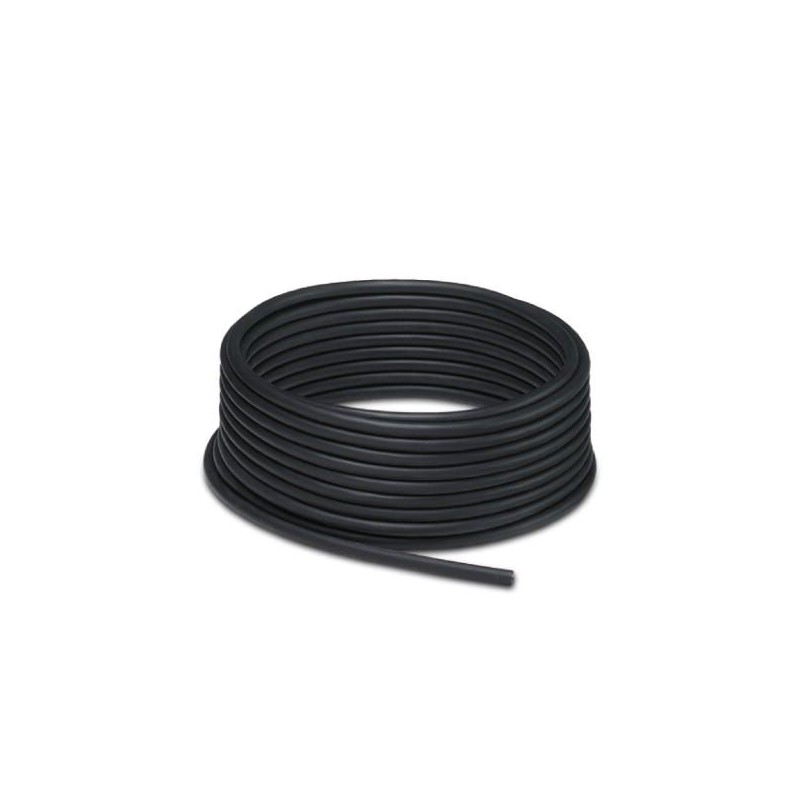

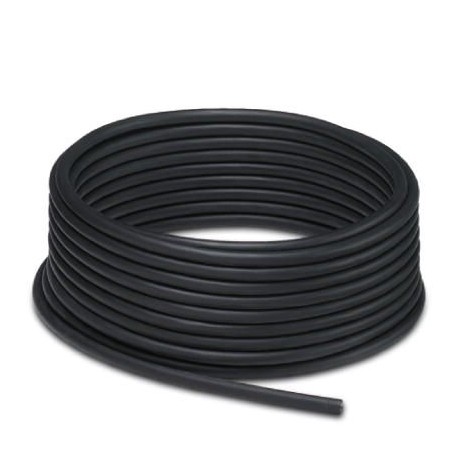

SAC-5P-100,0-92X 1422415 PHOENIX CONTACT Bus system cable
SAC-5P-100,0-92X
1422415
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Bus system cable
By meters, Bus system cable, CANopen®, DeviceNet™, shielded, halogen-free FRNC, black, 4-conductors (2xAWG24/19+2xAWG22/19), color single conductors: red-black, blue-white, cable length: 100 m, for outdoor applications
Cables > Data and communication cable
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1422415 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626302645 |
| Weight per Piece (excluding packing) | 6,407.000 g |
| Custom tariff number | 85444995 |
| Country of origin | DE (Germany) |
Cable
| Cable type | CAN bus/DeviceNet™, black |
|---|---|
| Cable type (abbreviation) | 92X |
| Cable abbreviation | LI2XCHX02XS |
| UL AWM style | 21281 (80°C/300 V) |
| Cable structure | 2xAWG24/19+2xAWG22/19 |
| Conductor cross section | 2x 0.25 mm² (Signal) |
| 2x 0.34 mm² (Power) | |
| 1x 0.38 mm² (Drain wire) | |
| AWG signal line | 24 |
| AWG power supply | 22 |
| Conductor structure signal line | 19x 0.13 mm |
| Conductor structure, voltage supply | 19x 0.16 mm |
| Core diameter including insulation | 1.9 mm (Signal) |
| 1.4 mm (Power) | |
| Thickness, insulation | 0.6 mm (Signal) |
| 0.3 mm (Power) | |
| Wire colors | Red-black, blue-white |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined foil |
| Overall twist | 2 pairs around a drain wire in the center to the core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 70 % |
| External sheath, color | black |
| Outer sheath thickness | 1.15 mm |
| External cable diameter D | 6.9 mm ±0,3 mm |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Cable weight | 70 kg/km |
| Outer sheath, material | FRNC |
| Material conductor insulation | PE |
| Conductor material | Tin-plated Cu litz wires |
| Insulation resistance | ≥ 200 MΩ*km (at 20 °C) |
| Conductor resistance | 90 Ω/km (Signal) |
| 55 Ω/km (Power) | |
| Working capacitance | 39.8 nF (at 1 kHz, core/core) |
| Wave impedance | 120 Ω ±12 Ω (f = 1 MHz) |
| Signal runtime | 4.46 ns/m |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000 V (50 Hz, 1 min.) |
| Flame resistance | According to IEC 60332-3-25 (Cat. D) |
| Halogen-free | yes |
| Resistance to oil | yes |
| Other resistance | UV resistant |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Diameter conductor (EF001621) | 1.9 mm |
| Nominal cross section conductor (EF000060) | 0.25 mm² |
| Conductor category (EF001632) | Class 6 = very flexible |
| Number of cores (EF001792) | 4 |
| Material core insulation (EF000061) | Other |
| Specification core insulation (EF011805) | Polyethylene (PE) |
| Core identification (EF000067) | Other |
| Screen over stranding element (EF001623) | Braiding |
| Stranding (EF003802) | Other |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Material outer sheath (EF001625) | Other |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Black |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Outer diameter approx. (EF003921) | 6.9 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 69 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 35 mm |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Category (EF001619) | Other |
