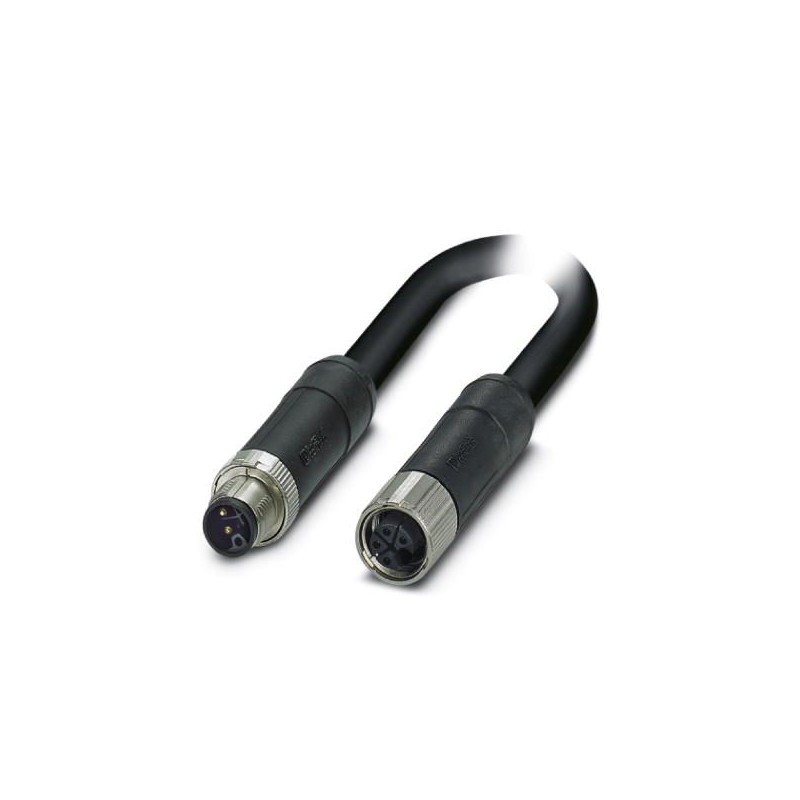

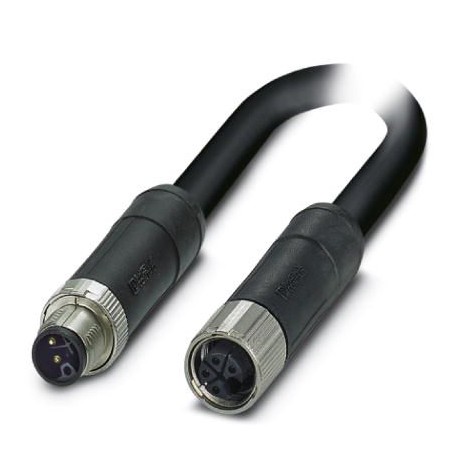

SAC-4P-M12MSL/3,0-110/FSL
1425064
PHOENIX_CONTACT
1
Power cable
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1425064 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 301 (C-2-2017) |
GTIN | 4055626384023 |
Weight per Piece (excluding packing) | 350.520 g |
Custom tariff number | 85444290 |
Country of origin | PL (Poland) |
Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
---|---|
Degree of protection | IP65 |
IP67 | |
IP68 |
Rated current at 40°C | 12 A |
---|---|
Rated voltage | 63 V DC |
Number of positions | 4 |
Color handle area | black |
Insulation resistance | ≥ 100 MΩ |
Coding | L - Power |
Standards/regulations | M12 connector IEC 61076-2-111 |
Status display | No |
Protective circuit/component | unwired |
Overvoltage category | III |
Degree of pollution | 3 |
Insertion/withdrawal cycles | ≥ 100 |
Torque | 0.4 Nm (M12 connector) |
Flammability rating according to UL 94 | V0 |
---|---|
Contact material | CuSn |
Contact surface material | Ni/Au |
Contact carrier material | PA |
Material of grip body | PA |
Material, knurls | Zinc die-cast, nickel-plated |
Standard designation | M12 connector |
---|---|
Standards/regulations | IEC 61076-2-111 |
Flammability rating according to UL 94 | V0 |
Cable type | PVC black |
---|---|
Cable type (abbreviation) | 110 |
UL AWM style | 20233 / 10493 (80°C/300 V) |
Conductor cross section | 4x 1.5 mm² |
AWG power supply | 16 |
Conductor structure, voltage supply | 78x 0.15 mm |
Core diameter including insulation | 2.35 mm ±0.05 mm |
Thickness, insulation | ≥ 0.25 mm |
Wire colors | brown, white, blue, black |
External sheath, color | black-gray RAL 7021 |
Outer sheath thickness | approx. 1.3 mm |
External cable diameter D | 7.55 mm ±0.25 mm |
Minimum bending radius, fixed installation | 5 x D |
Minimum bending radius, flexible installation | 10 x D |
Number of bending cycles | 2000000 |
Minimum bending radius, drag chain applications | 10 x D |
Traversing path | 10 m |
Traversing rate | 3 m/s |
Acceleration | 10 m/s² |
Outer sheath, material | PVC |
Material conductor insulation | PVC |
Conductor material | Bare Cu litz wires |
Insulation resistance | ≥ 1 GΩ*km (at 20 °C) |
Conductor resistance | ≤ 13 Ω/km (at 20 °C) |
Nominal voltage, cable | ≤ 300 V AC |
Test voltage, cable | ≥ 3000 V AC (Spark test) |
Flame resistance | According to UL 758/1581 (Cable Flame) |
according to UL 758/1581 FT1 | |
According to DIN EN 60332-1-2 | |
Resistance to oil | According to DIN EN 60811-404, 168 h at 60 °C |
Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
-20 °C ... 80 °C (cable, flexible installation) |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
