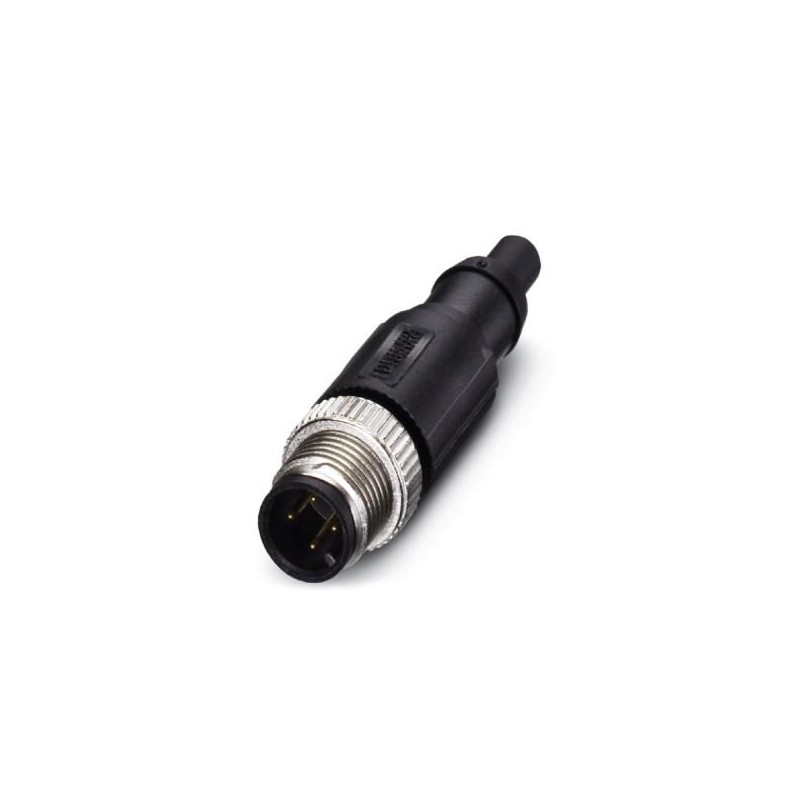

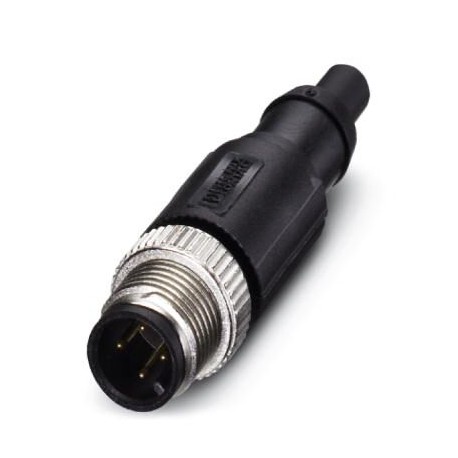

SAC-4P-M12MS TR 120 1/2 1410124 PHOENIX CONTACT Termination resistor, M12, 4-pos., M12 plug, product checked..
SAC-4P-M12MS TR 120 1/2
1410124
PHOENIX_CONTACT
250
Product on demand only, returns will not be accepted.
Termination resistor, M12, 4-pos., M12 plug, product checked according to customer specification/railway application
M12 Closing Resistor, 4 Poles, M12 Connector, Item Tested to Customer Specification/Railway Application
Antenna and satellite technique > Terminal resistor
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
General
| Rated current at 40°C | 20 mA |
|---|---|
| Rated voltage | 24 V |
| 5 Vrms | |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 (Quantity: 500 with Phoenix Contact mating connector) |
| Torque | 0.4 Nm (M12 connector) |
Material
| Contact material | CuZn |
|---|---|
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.0 | 19070400 |
|---|---|
| eCl@ss 5.1 | 19070400 |
| eCl@ss 6.0 | 19070400 |
| eCl@ss 7.0 | 19070403 |
| eCl@ss 8.0 | 19070403 |
| eCl@ss 9.0 | 19070403 |
UNSPSC
| UNSPSC 13.2 | 32121617 |
|---|---|
| UNSPSC 18.0 | 32121617 |
| UNSPSC 19.0 | 32121617 |
| UNSPSC 20.0 | 32121617 |
| UNSPSC 21.0 | 32121617 |
| Feature Name | Feature Value |
|---|---|
| DC-isolation (EF002432) | No |
