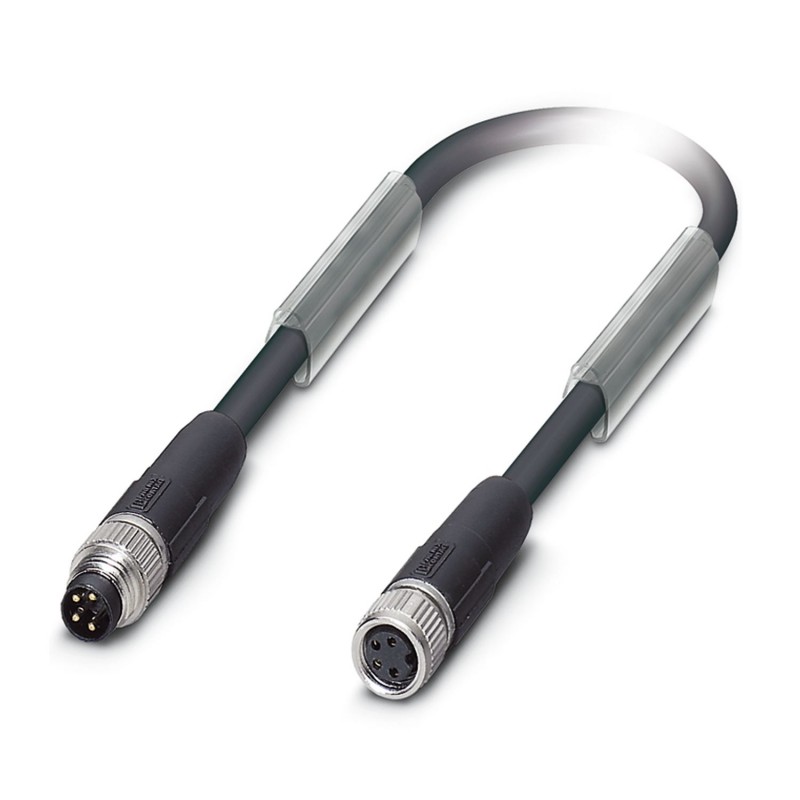

SAC-4P-M 8MS/15,0-950/M 8FS
1543388
PHOENIX_CONTACT
1
Bus system cable
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1543388 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 407 (NTK-2006) |
GTIN | 4046356097543 |
Weight per Piece (excluding packing) | 633.300 g |
Custom tariff number | 85444290 |
Country of origin | PL (Poland) |
Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
---|---|
Degree of protection | IP65 |
IP67 |
Rated current at 40°C | 4 A |
---|---|
Rated voltage | 48 V AC |
60 V DC | |
Number of positions | 4 |
Color handle area | black |
Insulation resistance | ≥ 100 MΩ |
Coding | A - standard |
Signal type/category | INTERBUS |
Status display | No |
Overvoltage category | II |
Degree of pollution | 3 |
Test voltage | 800 V |
Flammability rating according to UL 94 | HB |
---|---|
Contact material | CuSn |
Contact surface material | Ni/Au |
Contact carrier material | TPU GF |
Material of grip body | TPU, hardly inflammable, self-extinguishing |
Material, knurls | Zinc die-cast, nickel-plated |
Sealing material | NBR |
Cable type | INTERBUS |
---|---|
Cable type (abbreviation) | 950 |
UL AWM style | 20963 (80°C/30 V) |
Cable structure | 2xAWG26/19+2xAWG22/19 |
Conductor cross section | 2x 0.14 mm² (Signal line) |
2x 0.34 mm² (Power supply) | |
1x 0.38 mm² (Drain wire) | |
AWG signal line | 26 |
AWG power supply | 22 |
Conductor structure signal line | 19x 0.10 mm |
Conductor structure, voltage supply | 19x 0.15 mm |
Core diameter including insulation | 0.97 mm (Signal line) |
1.25 mm (Power supply) | |
Thickness, insulation | 0.24 mm (Conductor insulation, signal line) |
0.25 mm (Conductor insulation, voltage supply) | |
Wire colors | red-blue, green-yellow |
Twisted pairs | 2 cores to the pair |
Type of pair shielding | Aluminum-lined polyester foil |
Overall twist | 2 pairs around a drain wire in the center to the core |
Shielding | Tinned copper braided shield |
Optical shield covering | 85 % |
External sheath, color | black RAL 9005 |
Outer sheath thickness | approx. 0.75 mm |
External cable diameter D | 5.2 mm ±0.2 mm |
Minimum bending radius, fixed installation | 5 x D |
Minimum bending radius, flexible installation | 7.5 x D |
Number of bending cycles | 1000000 |
Bending radius | 110 mm |
Traversing path | 6 m |
Traversing rate | 4 m/s |
Acceleration | 4 m/s² |
Cable weight | 41 kg/km |
Outer sheath, material | PUR |
Material conductor insulation | PP |
Conductor material | Tin-plated Cu litz wires |
Insulation resistance | ≥ 20 MΩ*km |
Conductor resistance | ≤ 150 Ω/km (Signal line) |
≤ 58 Ω/km (Power supply) | |
Wave impedance | 75 Ω ±10 Ω (Signal line) |
55 Ω ±10 Ω (Power supply) | |
Nominal voltage, cable | ≤ 100 V |
Test voltage Core/Core | 1000 V (50 Hz, 1 min.) |
Test voltage Core/Shield | 1000 V (50 Hz, 1 min.) |
Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
-40 °C ... 80 °C (cable, flexible installation) |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
