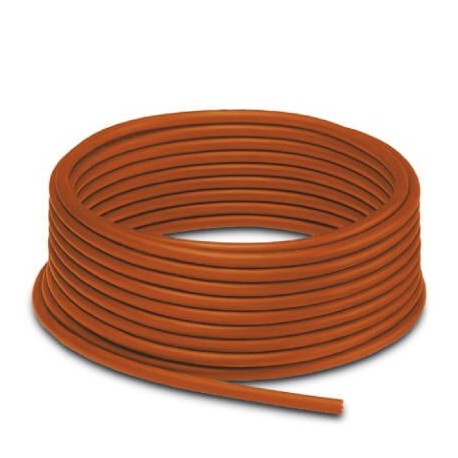

SAC-4P-4000,0-150/0,34 1412887 PHOENIX CONTACT Sensor/actuator cable, 4-wire, unshielded, PUR, halogen-free,..
SAC-4P-4000,0-150/0,34
1412887
PHOENIX_CONTACT

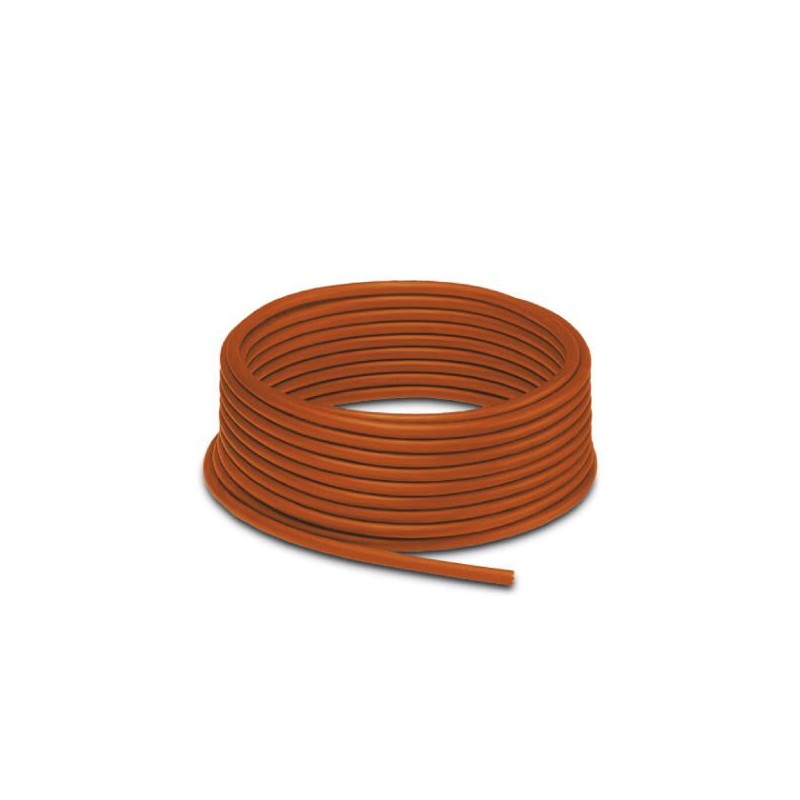

Sensor/actuator cable, 4-wire, unshielded, PUR, halogen-free, irradiated, orange outer sheath, 4 x 0.34 mm², length: 4000 m
Sensor/actuator cable, 4 conductors, unshielded, halogen-free PUR, radiation-crosslinked, orange outer wrap, 4 x 0.34 mm², length: 4000 m
Cables > Data and communication cable
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Standards and Regulations
| Halogen-free | The cable is halogen-free |
|---|---|
| Other resistance | hydrolysis and microbe resistant |
| Resistant to welding splashes |
Cable
| Cable type | PUR irradiated halogen-free orange |
|---|---|
| Cable type (abbreviation) | 150 |
| Cable abbreviation | D12YSL11X-OB |
| Conductor cross section | 4x 0.34 mm² |
| AWG signal line | 22 |
| Conductor structure signal line | 19x 0.15 mm |
| Core diameter including insulation | 1.05 mm ±0.05 mm (Signal line) |
| Wire colors | brown, white, blue, black |
| Overall twist | 4 wires, twisted |
| Length of twist, overall twist | 27 mm |
| External sheath, color | orange RAL 2003 |
| External cable diameter D | 5.2 mm ±0.2 mm |
| Smallest bending radius, fixed installation | min. 15 mm |
| Smallest bending radius, movable installation | min. 30 mm |
| Number of bending cycles | 5000000 |
| Bending radius | 52 mm |
| Traversing path | 10 m |
| Traversing rate | 3 m/s |
| Torsion force | ± 360 °/m |
| Outer sheath, material | PUR |
| Material conductor insulation | PE |
| Conductor material | Bare Cu litz wires |
| Conductor resistance | max. 57 Ω/km |
| Nominal voltage, cable | 320 V (AC) |
| Test voltage, cable | 2500 V (50 Hz, 5 minutes) |
| Special properties | Silicone-free |
| Irradiated | |
| Halogen-free | The cable is halogen-free |
| Other resistance | hydrolysis and microbe resistant |
| Resistant to welding splashes | |
| Ambient temperature (operation) | -50 °C ... 105 °C (cable, fixed installation) |
| -40 °C ... 105 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 4.0 | 24010400 |
|---|---|
| eCl@ss 4.1 | 24010400 |
| eCl@ss 5.0 | 19030300 |
| eCl@ss 5.1 | 19030300 |
| eCl@ss 6.0 | 27061800 |
| eCl@ss 7.0 | 27061801 |
| eCl@ss 8.0 | 27061801 |
| eCl@ss 9.0 | 27061801 |
UNSPSC
| UNSPSC 13.2 | 26121604 |
|---|---|
| UNSPSC 18.0 | 26121604 |
| UNSPSC 19.0 | 26121604 |
| UNSPSC 20.0 | 26121604 |
| UNSPSC 21.0 | 26121604 |
