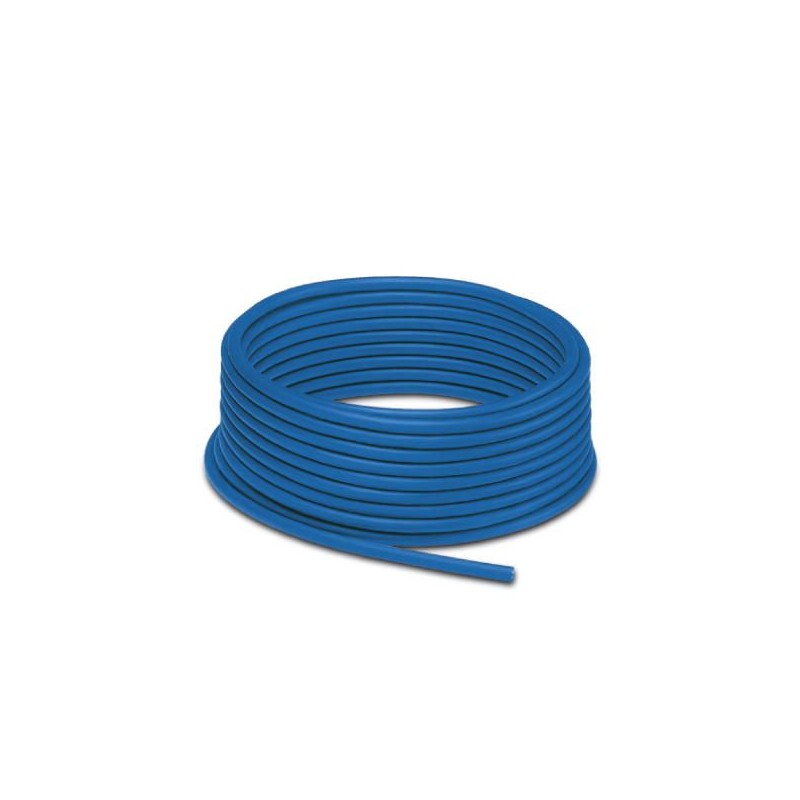

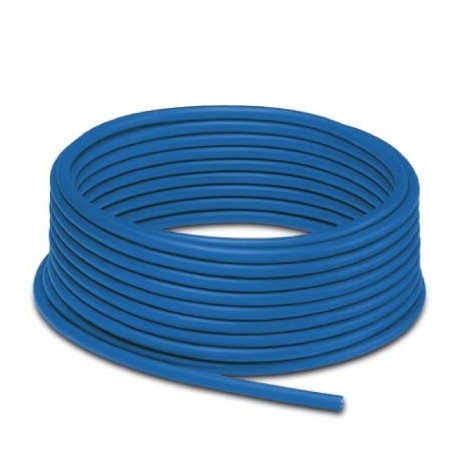

SAC-4P-100,0-93P 1401819 PHOENIX CONTACT Bus system cable
SAC-4P-100,0-93P
1401819
PHOENIX_CONTACT
Bus system cable
Bus system cable, Ethernet, 4 conductors, shielded, PVC, blue outer wrap, 2 x 2 x 0.14 mm², cable reel: 100 m
Cables > Data and communication cable
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1401819 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356574129 |
| Weight per Piece (excluding packing) | 4,472.000 g |
| Custom tariff number | 85444995 |
| Country of origin | DE (Germany) |
Cable
| Cable type | Ethernet |
|---|---|
| Cable type (abbreviation) | 93P |
| UL AWM style | 2654 (90 °C / 300 V) |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Conductor cross section | 2x 2x 0.14 mm² |
| AWG signal line | 26 |
| Conductor structure signal line | 7x 0.16 mm |
| Core diameter including insulation | 0.98 mm ±0.05 mm |
| Wire colors | white/orange-orange, white/green-green |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | Two pairs with two fillers to the core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | water blue RAL 5021 |
| Outer sheath thickness | ≥ 1 mm |
| External cable diameter D | 6.4 mm ±0.2 mm |
| Smallest bending radius, movable installation | 25 mm |
| Tensile strength GRP | ≤ 40 N |
| Outer sheath, material | PVC |
| Material conductor insulation | PP |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | > 5 GΩ*km |
| Conductor resistance | ≤ 140 Ω/km |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Working capacitance | < 56 nF |
| Wave impedance | 100 Ω ±5 % (at 100 MHz) |
| Signal speed | 0.6 c |
| Signal runtime | 0.4 ns/m |
| Shield attenuation | 32 dB (up to 100 MHz) |
| Nominal voltage, cable | ≤ 300 V AC |
| ≤ 450 V DC | |
| Test voltage Core/Core | 2500 V DC |
| Flame resistance | According to VW-1 |
| Resistance to oil | in accordance with DIN EN 60811-2-1 |
| Other resistance | Resistant to cleaning agents/disinfectants According to ECOLAB F&E/P3-E No. 40-1 |
| Ambient temperature (operation) | -40 °C ... 90 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027062010eCl@ss 5.119030300eCl@ss 6.027061800eCl@ss 7.027061801eCl@ss 8.027061801eCl@ss 9.027061801
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Diameter conductor (EF001621) | 0.98 mm |
| Nominal cross section conductor (EF000060) | 0.14 mm² |
| Conductor category (EF001632) | Class 2 = stranded |
| Number of cores (EF001792) | 4 |
| Material core insulation (EF000061) | Other |
| Specification core insulation (EF011805) | Polypropylene (PP) |
| Core identification (EF000067) | Other |
| Screen over stranding element (EF001623) | Braiding |
| Stranding (EF003802) | Other |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Material outer sheath (EF001625) | Polyvinyl chloride (PVC) |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Other |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Outer diameter approx. (EF003921) | 6.4 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 25 mm |
| Permitted cable outer temperature during assembling/handling (EF001685) | -40 °C |
| Category (EF001619) | Other |
