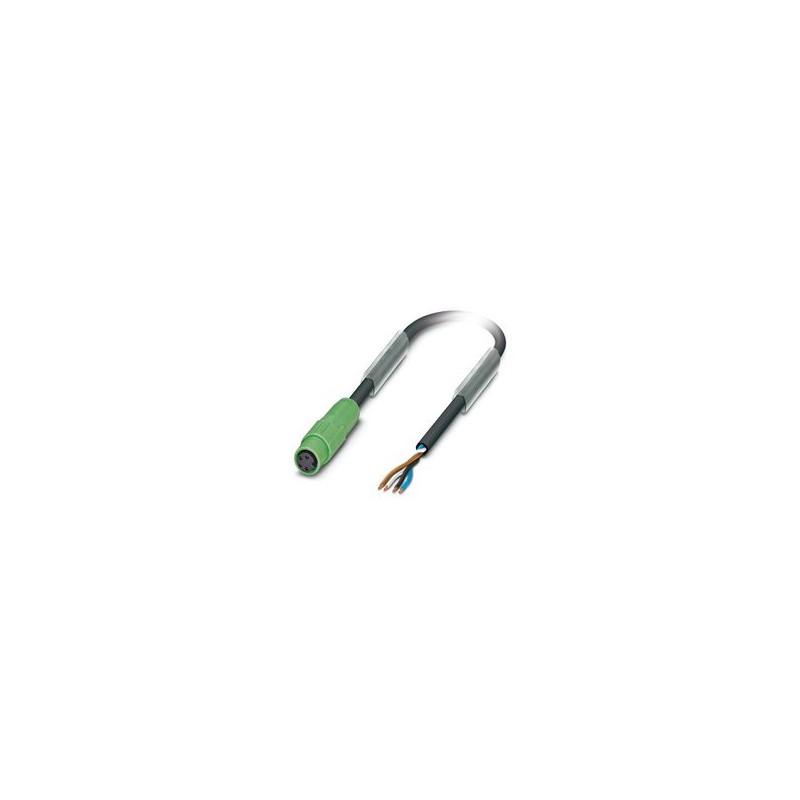

SAC-4P- 0,3-PVC/M8SIFS 1566942 PHOENIX CONTACT Sensor/Actuator Cable, 4-Pole, Free Cable End, to Straight M8..
SAC-4P-0,3-PVC/M8SIFS
1566942
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Sensor/Actuator Cable, 4-Pole, Free Cable End, to Straight M8 Female Snap-in, Cable Length: 0.3 m
Cable for sensors/actuators
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Number of poles | 4 |
| Number of Cable Outlets | 1 |
| Shielded | No |
| Insulation Properties | |
| Surge Category | Ii |
| Degree of pollution | 3 |
| Flammability class according to UL 94 | HB |
| Gasket material | NBR |
| Grip body material | Fire-resistant, self-extinguishing TPU |
| Contact material | CuSn |
| Material: Contact Surface | Ni/AU |
| Contact Support Material | TPU GF |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V |
| Nominal Current IN | 4 A |
| Status Indication | No |
| Available Status Indication | No |
| Connection 1 | |
| Construction | Free Cable End |
| Connection 2 | |
| Construction | Straight Female M8 Snap-in |
| Number of poles | 4 |
| Locking system | Snap-in |
| Cable length | 0.3 m |
| Black PVC [PVC] | |
| Dimension Scheme |  |
| Shielded | No |
| UL AWM Style | 2464 / 1729 (80°C/300V) |
| Cable Weight | 33 kg/km |
| Cable type | Black PVC |
| Abbreviation | LiYY |
| Cable Type (abbreviation) | PVC |
| Cable Outer Diameter | 4.4 mm ±0.15 mm |
| Outer Wrap, Material | PVC |
| Outer Wrap, Color | black RAL 9005 |
| Conductive Material | Naked Cu Conductor |
| Conductor Construction Signal Cable | 14x 0.15 mm |
| AWG Signal Line | 24 |
| Line Section | 4x 0.25 mm² (signal conductor) |
| Material: Conductor Insulation | PVC |
| Wall Thickness Insulation | ≥ 0.23 mm (Conductor Insulation) |
| Conductor diameter incl. insulation | 1.17 mm ±0.05 mm |
| Single Driver, Color | brown, white, blue, black |
| Total cabling | 4 longitudinally stranded conductors |
| Nominal Voltage Cable | ≤ 300 V |
| Test Voltage Cable | ≥ 3000 V |
| Line Resistance | max. 79 Ω/km (at 20 °C) |
| Line Insulation Resistance | ≥ 100 MΩ*km (at 20 °C) |
| Minimum bending radius, fixed | 5 x D |
| Oil Resistance | EN 60811-2-1 |
| Flame Resistance | according to UL-Style 2464 |
| Ambient Temperature (Service) | -10 °C ... 80 °C (Cable, movable arrangement) |
| -25 °C ... 80°C (cable, fixed arrangement) | |
| Environmental conditions | |
| Protection Index | IP65 |
| IP67 | |
| IP68 | |
| Ambient Temperature (Service) | -25 °C ... 90°C (male/female) |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | M8 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 0.3 m |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -10 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | IP65 |
