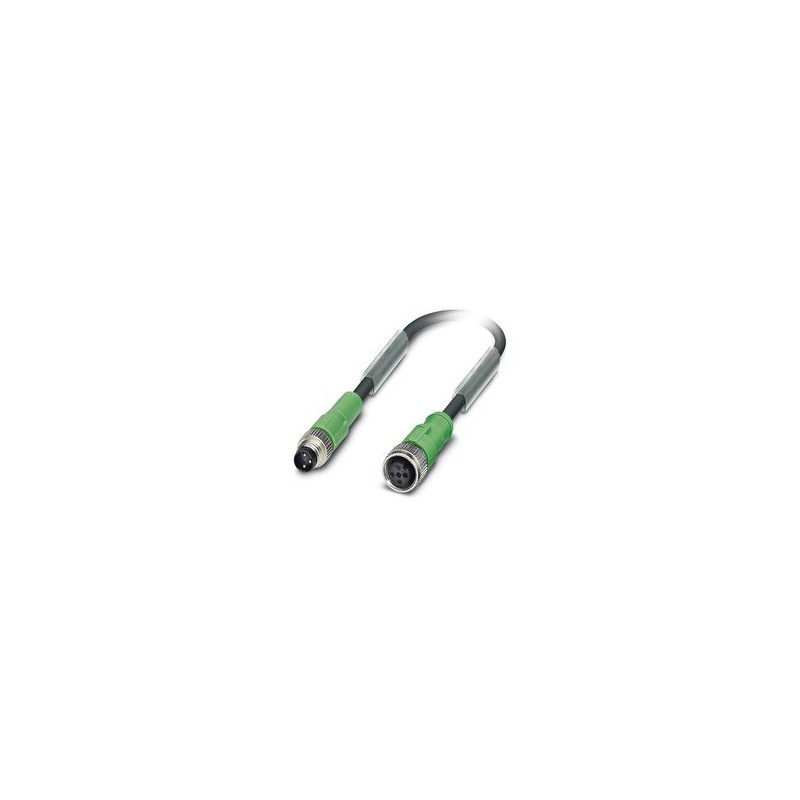

SAC-3P-M8MS/2,0-PUR/M12FS 4X2 1630550 PHOENIX CONTACT Cable for sensors/actuators
SAC-3P-M8MS/2,0-PUR/M12FS 4X2
1630550
PHOENIX_CONTACT
50
Cable for sensors/actuators
Sensor/actuator cable, 3-position, Plug straight M8, coding: A, connected with unwired, on Socket straight M12, coding: A, cable length: 2 m
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Technical data
Product properties
| Product type | Sensor/actuator cable |
| Number of positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Protective circuit | unwired |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
Signaling
| Status display | No |
| Status display present | No |
Connection data
| Pin assignment | |
| Contact | Color (signal designation) | Contact (optional) | 1 (Plug) | BN | 1 (Socket) |
| 4 (Plug) | BK | 2 (Socket) | |
| 3 (Plug) | BU | 3 (Socket) | |
Connector
| Connection 1 | |
| Type | Plug straight M8 |
| Number of positions | 3 |
| Coding type | A |
| Connection 2 | |
| Type | Socket straight M12 |
| Number of positions | 3 |
| Coding type | A |
Cable/line
| Cable length | 2 m |
| PUR halogen-free black [PUR] | |
| Dimensional drawing |  |
| Shielded | no |
| UL AWM Style | 20549 / 10493 (80°C/300 V) |
| Cable weight | 18 kg/km |
| Cable type | PUR halogen-free black |
| Short symbol | Li9Y11Y-HF |
| Cable type (abbreviation) | PUR |
| External cable diameter | 3.6 mm ±0.15 mm |
| Outer sheath, material | PUR |
| External sheath, color | black-gray RAL 7021 |
| Thickness, outer sheath | approx. 0.5 mm |
| Conductor material | Bare Cu litz wires |
| Conductor structure signal line | 32x 0.10 mm |
| AWG signal line | 24 |
| Conductor cross section | 3x 0.25 mm² (Signal line) |
| Material wire insulation | PP |
| Thickness, insulation | ≥ 0.21 mm (Core insulation) |
| Wire diameter incl. insulation | 1.17 mm ±0.02 mm |
| Single wire, color | brown, blue, black |
| Overall twist | 3 wires, twisted |
| Length of twist, overall twist | 40 mm |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage, cable | ≥ 3000 V |
| Cable resistance | ≤ 78 Ω/km (at 20 °C) |
| Cable insulation resistance | ≥ 100 GΩ*km (at 20 °C) |
| Smallest bending radius, fixed installation | 18 mm |
| Smallest bending radius, movable installation | 36 mm |
| Number of bending cycles | 10000000 |
| Bending radius | 44 mm |
| Traversing path | 10 m |
| Traversing rate | 3 m/s |
| Acceleration | 10 m/s² |
| Halogen-free | in accordance with DIN VDE 0472 part 815 |
| Resistance to oil | in accordance with DIN EN 60811-2-1 |
| Flame resistance | in accordance with UL 758/1581 FT2 |
| DIN EN 60332-2-2 (20 s) | |
| Other resistance | hydrolysis and microbe resistant |
| Highly resistant to acids, alkaline solutions and solvents | |
| Resistant to salt water | |
| partly UV-resistant in accordance with DIN EN ISO 4892-2-A | |
| Special properties | Flexible cable conduit capable |
| Silicone-free | |
| Free of substances which would hinder coating with paint or varnish | |
| Ambient temperature (operation) | -25 °C ... 80 °C (Cable, flexible installation) |
| -40 °C ... 80 °C (cable, fixed installation) | |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| IP68 | |
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
Standards and regulations
| Standard designation | M12 connector |
