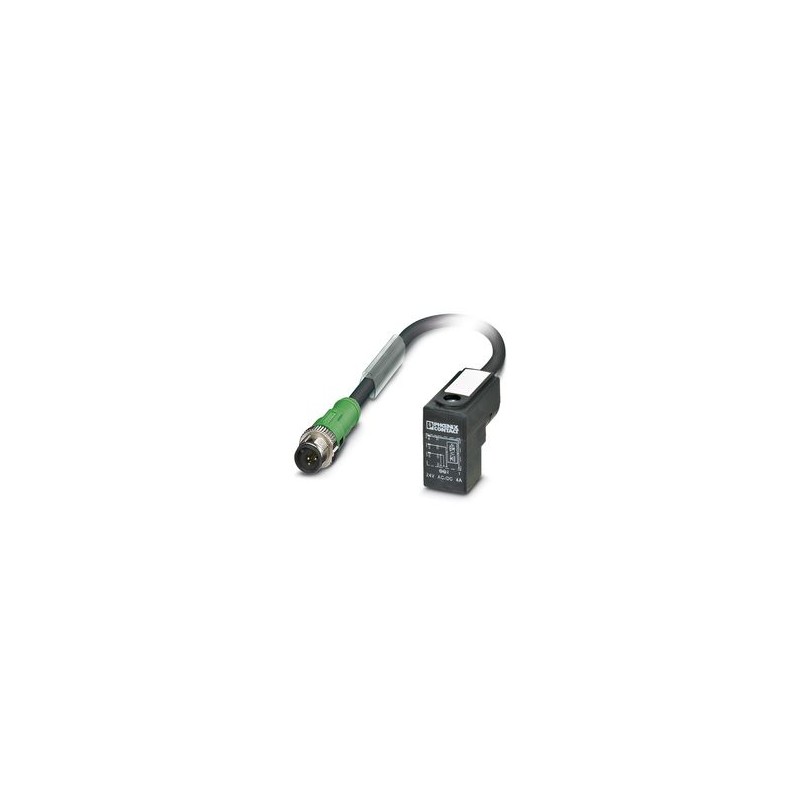

SAC-3P-M12MS/ 1,3-240/CI 1548094 PHOENIX CONTACT Sensor/Actuator Cable, Halogen-Free 3-Pole, M12 Straight Co..
SAC-3P-M12MS/ 1,3-240/CI
1548094
PHOENIX_CONTACT
100
Sensor/Actuator Cable, Halogen-Free 3-Pole, M12 Straight Connector, Coding: A, A IC Valve Connectors (9.4mm), Cable Length: 1.3 m, Customer Variant
Sensor/actuator cable, 3-position halogen-free, Plug straight M12, coding: A, on Valve connector CI (9.4 mm), cable length: 1.3 m, Customer version
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| Product type | Sensor/actuator cable with valve connector |
| Number of positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Flammability rating according to UL 94 | HB |
| Seal material | TPU |
| Material housing valve plug | TPU |
| Material of grip body | TPU |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Contact material | CuSn |
| Valve plug contact insert material | PA 6.6 |
| Contact surface material | Sn |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 (M12 connector) |
| Connection 1 | |
| Type | Plug straight M12 |
| Number of positions | 3 |
| Coding type | A |
| Connection 2 | |
| Type | Valve connector CI (9.4 mm) |
| Material | CuSn (Contact) |
| Sn (Contact surface) | |
| PA 6.6 (Contact carriers) | |
| TPU (Housing) | |
| Cable length | 1.3 m |
| PUR halogen-free yellow [240] | |
| Dimensional drawing |  |
| Shielded | no |
| UL AWM Style | 20549 (80°C/300 V) |
| Cable weight | 30 kg/km |
| Cable type | PUR halogen-free yellow |
| Short symbol | Li9Y11Y |
| Cable type (abbreviation) | 240 |
| External cable diameter | 4.5 mm ±0.15 mm |
| Outer sheath, material | PUR |
| External sheath, color | yellow |
| Thickness, outer sheath | approx. 0.6 mm |
| Conductor material | Bare Cu litz wires |
| Conductor structure signal line | 28x 0.15 mm |
| AWG signal line | 20 |
| Conductor cross section | 3x 0.5 mm² |
| Material wire insulation | PP |
| Thickness, insulation | ≥ 0.21 mm |
| Wire diameter incl. insulation | 1.46 mm ±0.02 mm |
| Single wire, color | black 1, black 2, green/yellow |
| Overall twist | 3 wires, twisted |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage, cable | ≥ 3000 V |
| Cable resistance | ≤ 39 Ω/km |
| Cable insulation resistance | ≥ 10 GΩ*km |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Halogen-free | in accordance with DIN VDE 0472 part 815 |
| Resistance to oil | in accordance with DIN EN 60811-2-1 |
| Flame resistance | in accordance with DIN UL-Style 20549 |
| Ambient temperature (operation) | -15 °C ... 80 °C (cable, fixed installation) |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
| -20 °C ... 85 °C (valve plug) | |
| -40 °C ... 80 °C (cable, fixed installation) | |
| -15 °C ... 80 °C (Cable, flexible installation) | |
