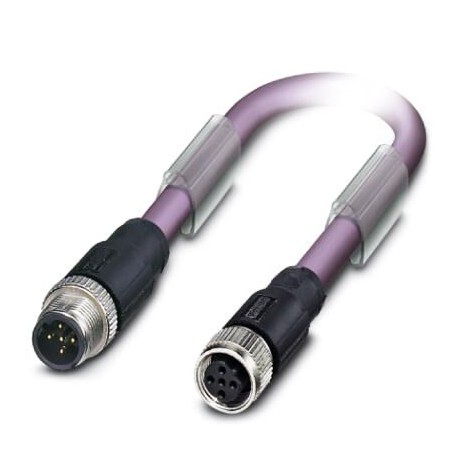

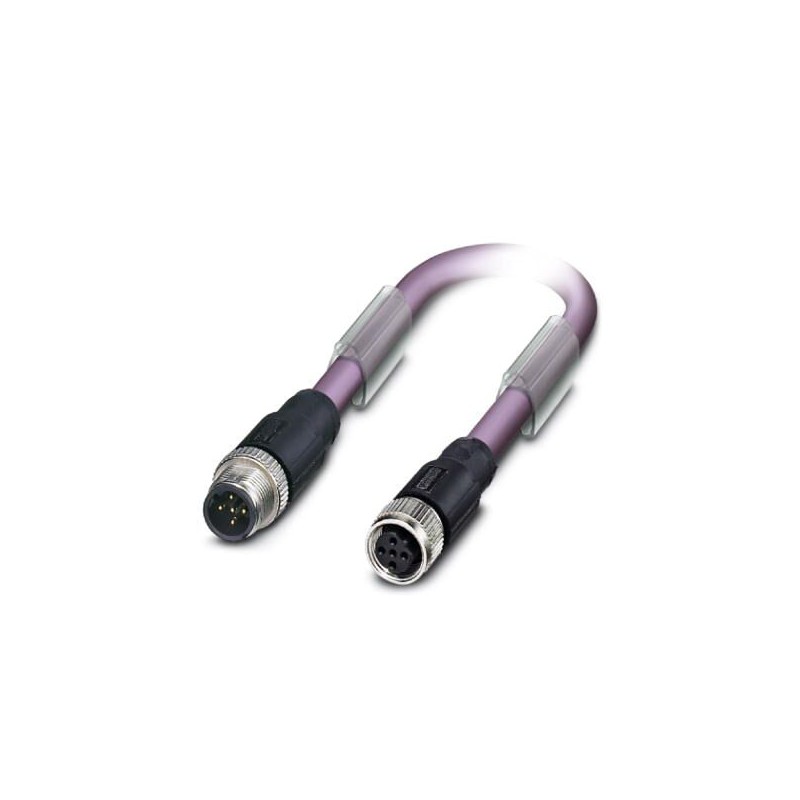

SAC-2P-M12MSB/20-910/M12FSB PF 1110577 PHOENIX CONTACT Bus system cable, PROFIBUS (12 Mbps), 2-position, PUR..
SAC-2P-M12MSB/20-910/M12FSB PF
1110577
PHOENIX_CONTACT
50
Bus system cable, PROFIBUS (12 Mbps), 2-position, PUR halogen-free, violet RAL 4001, shielded, cable length: 20 m
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
General
| Note | Further products with variable cable lengths can be found in the accessories section |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 2 |
| Coding | B - inverse |
| Signal type/category | PROFIBUS, 12 Mbps (max. 100 m) |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
Material
| Contact material | CuSn |
|---|---|
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 (plug), TPU GF (socket) |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Cable
| Cable type | PROFIBUS |
|---|---|
| Cable type (abbreviation) | 910 |
| UL AWM style | 21198 (80°C/300 V) |
| Cable structure | 1x2xAWG24/19 |
| Conductor cross section | 2x 0.25 mm² (Signal line) |
| AWG signal line | 24 |
| Conductor structure signal line | 19x 0.13 mm |
| Core diameter including insulation | 2.55 mm ±0.07 mm |
| Wire colors | Red, green |
| Overall twist | 2 cores with 2 fillers to the core |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | violet RAL 4001 |
| External cable diameter D | 7.8 mm ±0.2 mm |
| Smallest bending radius, fixed installation | 40 mm |
| Smallest bending radius, movable installation | 65 mm |
| Number of bending cycles | 4000000 |
| Bending radius | 65 mm |
| Traversing path | 4.5 m |
| Traversing rate | 3 m/s |
| Acceleration | 3 m/s² |
| Number of bending cycles | 5000000 |
| Bending radius | 80 mm |
| Traversing path | 4.5 m |
| Traversing rate | 3 m/s |
| Acceleration | 3 m/s² |
| Cable weight | 90 kg/km |
| Outer sheath, material | PUR |
| Material, filler | PP |
| Material conductor insulation | Foam-Skin PP |
| Conductor material | Tin-plated Cu litz wires |
| Insulation resistance | ≥ 5 GΩ*km |
| Conductor resistance | ≤ 78.6 Ω/km |
| Cable capacity | nom. 30 pF/m |
| Wave impedance | 150 Ω ±10 % (3 MHz ... 20 MHz) |
| Attenuation | ≤ 0.049 dB/m (at 16 MHz) |
| Nominal voltage, cable | 30 V |
| Test voltage Core/Core | 1500 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 1500 V (50 Hz, 1 min.) |
| Flame resistance | UL 1581, Sec. 1060 (FT-1) |
| IEC 60332-1-2 | |
| Halogen-free | in accordance with DIN VDE 0472 part 815 |
| according to IEC 60754-1 | |
| Other resistance | Low adhesion |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -30 °C ... 80 °C (cable, flexible installation) | |
| ≤ 70 °C (cable, drag chain applications) |
