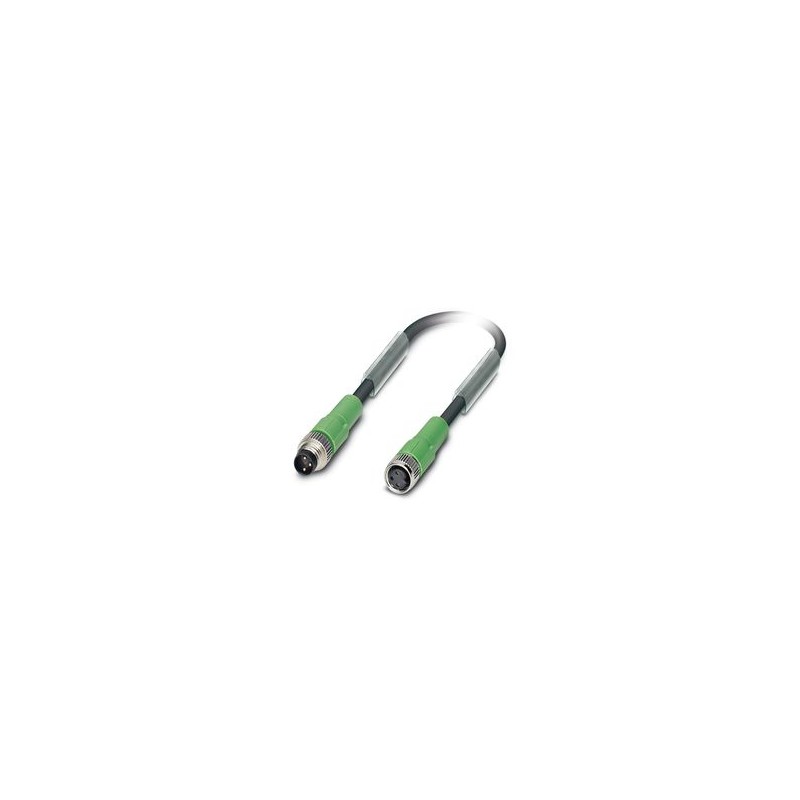

SAC-2P-M 8MS/ 4,2-RDX/M8FSSO16 1507670 PHOENIX CONTACT Sensor/Actuator Cable, 3-Pole, M8 Straight Connector,..
SAC-2P-M 8MS/ 4,2-RDX/M8FSSO16
1507670
PHOENIX_CONTACT
100
Sensor/Actuator Cable, 3-Pole, M8 Straight Connector, Coding: A, A M8 Straight Female, Coding: A, Cable Length: 4.2 m, Auxiliary Line
Sensor/actuator cable, 3-position, Plug straight M8, coding: A, on Socket straight M8, coding: A, cable length: 4.2 m, Supplied cable
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| Product type | Sensor/actuator cable |
| Number of positions | 3 |
| No. of cable outlets | 1 |
| Coding | A |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Protective circuit | unwired |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Status display | No |
| Status display present | No |
| Connection 1 | |
| Type | Plug straight M8 |
| Number of positions | 2 |
| Coding type | A |
| Connection 2 | |
| Type | Socket straight M8 |
| Coding type | A |
| Cable length | 4.2 m |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
