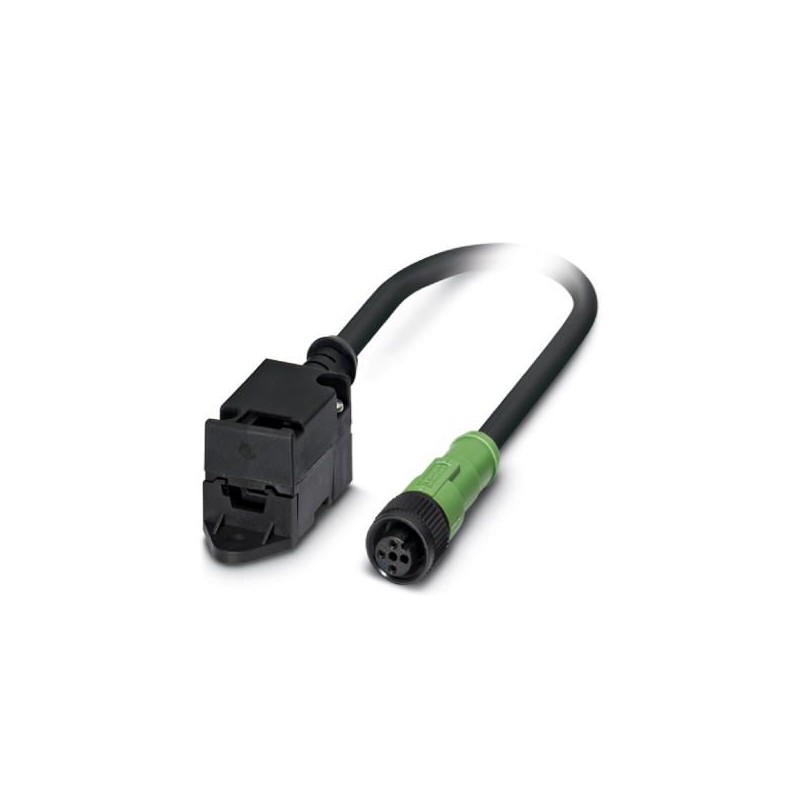

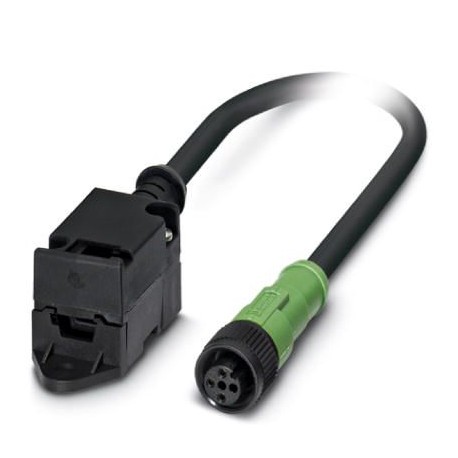

SAC-2P-ASIFK/ 1,0-PUR/M12FS P 1557280 PHOENIX CONTACT Bus system cable
SAC-2P-ASIFK/ 1,0-PUR/M12FS P
1557280
PHOENIX_CONTACT
Bus system cable
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1557280 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356185035 |
| Weight per Piece (excluding packing) | 80.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 2 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Signal type/category | AS-Interface |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Plastic |
| Sealing material | NBR |
Cable
| Cable type | PUR/PVC black |
|---|---|
| Conductor cross section | 0.75 mm² |
| AWG signal line | 18 |
| Wire colors | brown, blue |
| External sheath, color | black RAL 9005 |
| External cable diameter | 5.80 mm |
| Outer sheath, material | PUR |
| Material, inner sheath | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027060311
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
