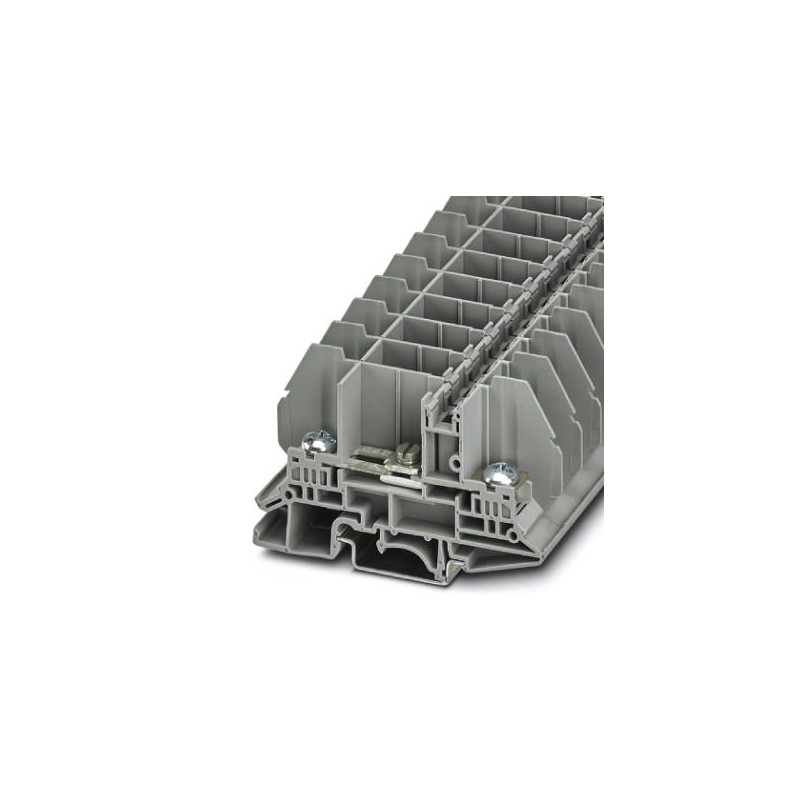

RSC 5-T-B 3214916 PHOENIX CONTACT Test disconnect terminal block
RSC 5-T-B
3214916
PHOENIX_CONTACT
Test disconnect terminal block
Feed-through terminal block with stud connection technology, cross-section: 0.1 - 6 mm², AWG: 26 - 10, width 16.3 mm, colour: Grey
Terminal blocks > Feed-through terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 3214916 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356605830 |
| Weight per Piece (excluding packing) | 29.900 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 10 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipation for nominal condition | 1.82 W |
| Maximum load current | 57 A (with 10 mm² conductor cross section) |
| Nominal current IN | 57 A |
| Nominal voltage UN | 800 V |
| Open side panel | Yes |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Static insulating material application in cold | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32 % |
| NF F16-101, NF F10-102 Class I | 2 |
| NF F16-101, NF F10-102 Class F | 2 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Dimensions
| Width | 13 mm |
|---|---|
| End cover width | 2.2 mm |
| Length | 53.3 mm |
| Height NS 35/7,5 | 47.1 mm |
| Height NS 35/15 | 54.6 mm |
| Pitch | 13 mm |
Connection data
| Note | Connection bolts |
|---|---|
| Connection method | Bolt connection |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section flexible min. | 0.1 mm² |
| Conductor cross section flexible max. | 10 mm² |
| Min. AWG conductor cross section, flexible | 26 |
| Max. AWG conductor cross section, flexible | 8 |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 0.1 mm² |
| Max. cross section for cable lug connection | 10 mm² |
| Hole diameter, min. | 5.3 mm |
| Cable lug width, max. | 10 mm |
| Bolt diameter | 5 mm |
| Cable lug connection according to standard | DIN 46237 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 6 mm² |
| Hole diameter, min. | 5.3 mm |
| Cable lug width, max. | 10 mm |
| Bolt diameter | 5 mm |
| Screw thread | M5 |
| Tightening torque, min | 2 Nm |
| Tightening torque max | 2.2 Nm |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141126eCl@ss 4.127141126eCl@ss 5.027141126eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141126eCl@ss 8.027141126eCl@ss 9.027141126
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 57 A |
| Rated voltage (EF000228) | 800 V |
| Type of electrical connection 1 (EF002526) | Bolt connection |
| Type of electrical connection 2 (EF002527) | Bolt connection |
| Number of clamp positions per level (EF002660) | 2 |
| Suitable for conductor material (EF012572) | Aluminium/copper |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Material insulation body (EF007543) | Other |
| Operating temperature (EF002393) | -60 °C |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 13 mm |
| Height (EF000040) | 79.9 mm |
| Depth (EF000049) | 47.1 mm |
| Closing plate required (EF002525) | Yes |
| Colour (EF000007) | Grey |
| Internally connected stages (EF002661) | Yes |
