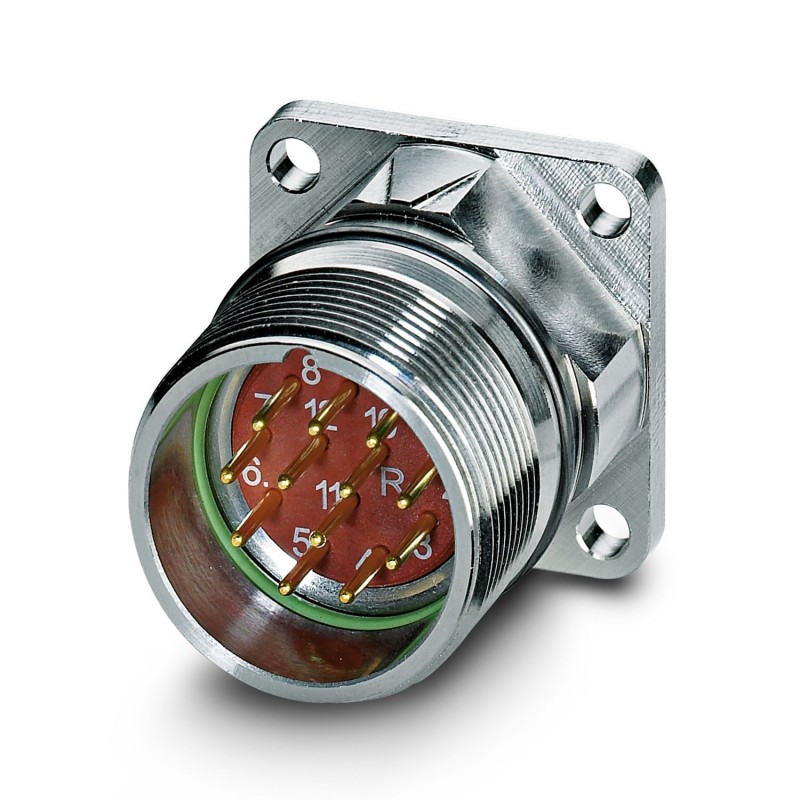

RF-12P2N8AWV00 1614414 PHOENIX CONTACT Device connector, front mounting
RF-12P2N8AWV00
1614414
PHOENIX_CONTACT
20
Product on demand only, returns will not be accepted.
Device connector, front mounting
Conect. plug. to be apar. front wall, straight, Screw lock, M23, number of poles: 12, contact type: Male, Axial O-ring, 4x Ø 3.2, shielded: yes, protection index: IP67, number of poles: 12, connection type: Crimped connection, series: RF
Device connector front mounting, straight, Screw locking mechanism, M23, number of positions: 12, contact connection type: Pin, Axial O-ring, 4x Ø 3.2, shielded: yes, number of positions: 12, connection method: Crimp connection, series: RF
Connectors > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Order information: | Order crimp contacts Ø 1 mm separately |
| Mounting type | Front mounting |
| Mounting | 4x Ø 3.2 |
| Product type | Circular connectors (device side) |
| Series | RF |
| Application | Signal |
| Signal | |
| Number of positions | 12 |
| Connection profile | 12 |
| Shielded | yes |
| Coding | N |
| Thread type | M23 |
| Data management status | |
| Article revision | 03 |
| Flammability rating according to UL 94 | V0 |
| Seal material | FPM |
| Housing material | High-grade steel 1.4305 |
| Insulator material | PA 6.6 |
| Gasket and O-ring material | FPM |
| Contact | |
| Contact diameter | 1 mm |
| Max. current | 8 A |
| Nominal voltage UN | 48 V AC 74 V DC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Conductor connection | |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Type | straight |
| Direction of rotation | Counter direction |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | Yes |
| Number of poles (EF001391) | 12 |
| Number of control contacts (EF012217) | 12 |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -20 °C |
| With thread (EF003723) | Yes |
